MARATHON | SKU:
EMN-015934

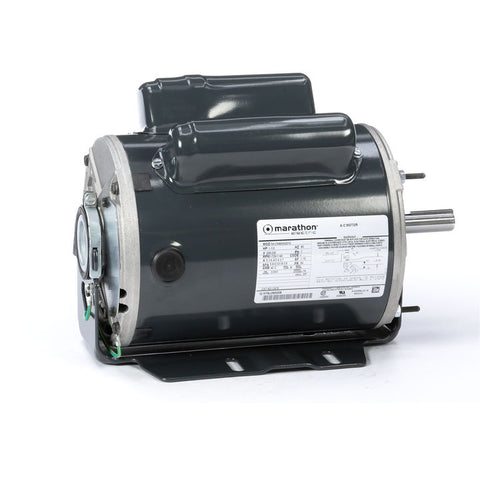

C476, MARATHON, 1 HP-1/3 HP, 208-230V,1725/1140 RPM,FR:56,5KCR49SN3010
Regular price
$1,235.65
Unit price
/
Unavailable
C476, MARATHON, 1 HP-1/3 HP, 208-230V,1725/1140 RPM,FR:56,5KCR49SN3010 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
![C476, MARATHON, 1 HP-1/3 HP, 208-230V,1725/1140 RPM,FR:56,5KCR49SN3010 - HVAC ELECTRIC MOTOR - MARATHON - electric motors - [product_tags]- motor electric - moteur électrique - moteurs - drive - replacement - venmar - hvac - méchoui - capacitor - condensateur](http://www.emotornations.com/cdn/shop/products/C476_MARATHON.jpg?v=1756479960&width=112)
C476, MARATHON, 1 HP-1/3 HP, 208-230V,1725/1140 RPM,FR:56,5KCR49SN3010
Regular price
$1,235.65
Unit price
/
Unavailable
Description
Description
C476, MARATHON, 5KCR49SN3010
General Specifications
| Model : | 5KCR49SN3010 | Catalog No : | C476 |
| Part Description : | 1-1/3,1725/1425,DP,56,1/60/208-230 | Category : | Open Drip Proof (ODP) |
| Stock : | No |
Nameplate Specifications
| Output HP : | 1,0.33 Hp | Output KW : | 0.75 kW |
| Frequency : | 60 Hz | Voltage : | 208-230 V |
| Current : | 5.3-5.4,3.6-3.7 A | Speed : | 1725,1140 rpm |
| Service Factor : | 1.15 | Phase : | 1 |
| Efficiency : | 74 % | Duty : | Continous |
| Insulation Class : | B | KVA Code : | J |
| Frame : | 56 | Enclosure : | Drip Proof |
| Overload Protector : | N/R | Ambient Temperature : | 40 °C |
| Drive End Bearing Size : | 6203 | Opp Drive End Bearing Size : | 6203 |
| UL : | Recognized | CSA : | Yes |
| CE : | N |
Technical Specifications
| Electrical Type : | Capacitor Start Capacitor Run(CSCR) | Starting Method : | SM |
| Poles : | 4 | Rotation : | Counterclockwise/Clockwise |
| Mounting : | Resilient Base | Motor Orientation : | ANY |
| Drive End Bearing : | BALL | Opp Drive End Bearing : | BALL |
| Frame Material : | Rolled Steel | Overall Length : | 12.01 in |
| Frame Length : | 7.68 in | Shaft Diameter : | 0.63 in |
| Shaft Extension : | 1.88 in | UPC : | 722856048547 |
| Weight : | 35.00 LB |
