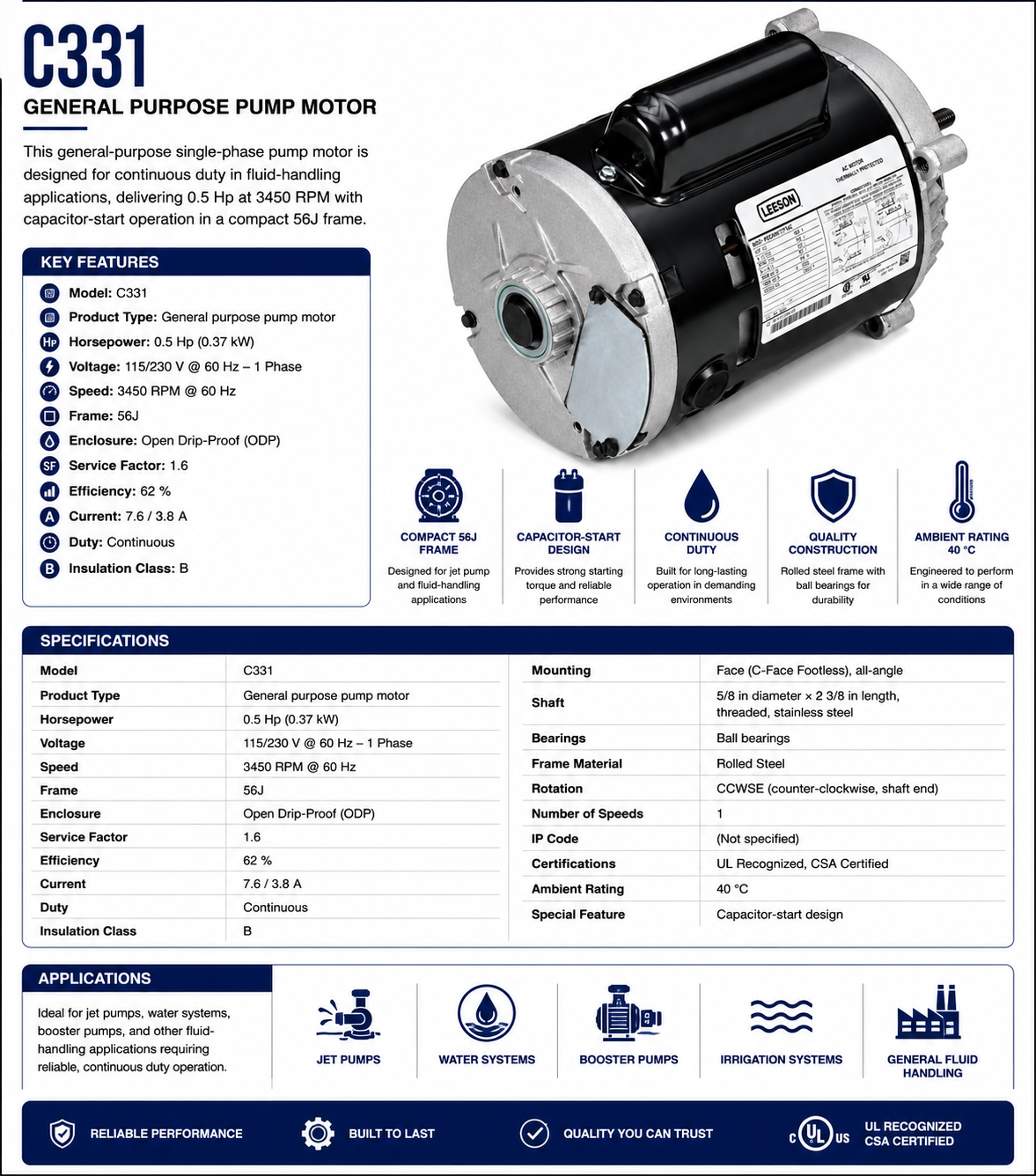

C331, 0.5 Hp, 3450 RPM, 115/230 V, 1 Ph, 60 Hz, Open Drip‑Proof, Frame 56J, 5KC36JN269X

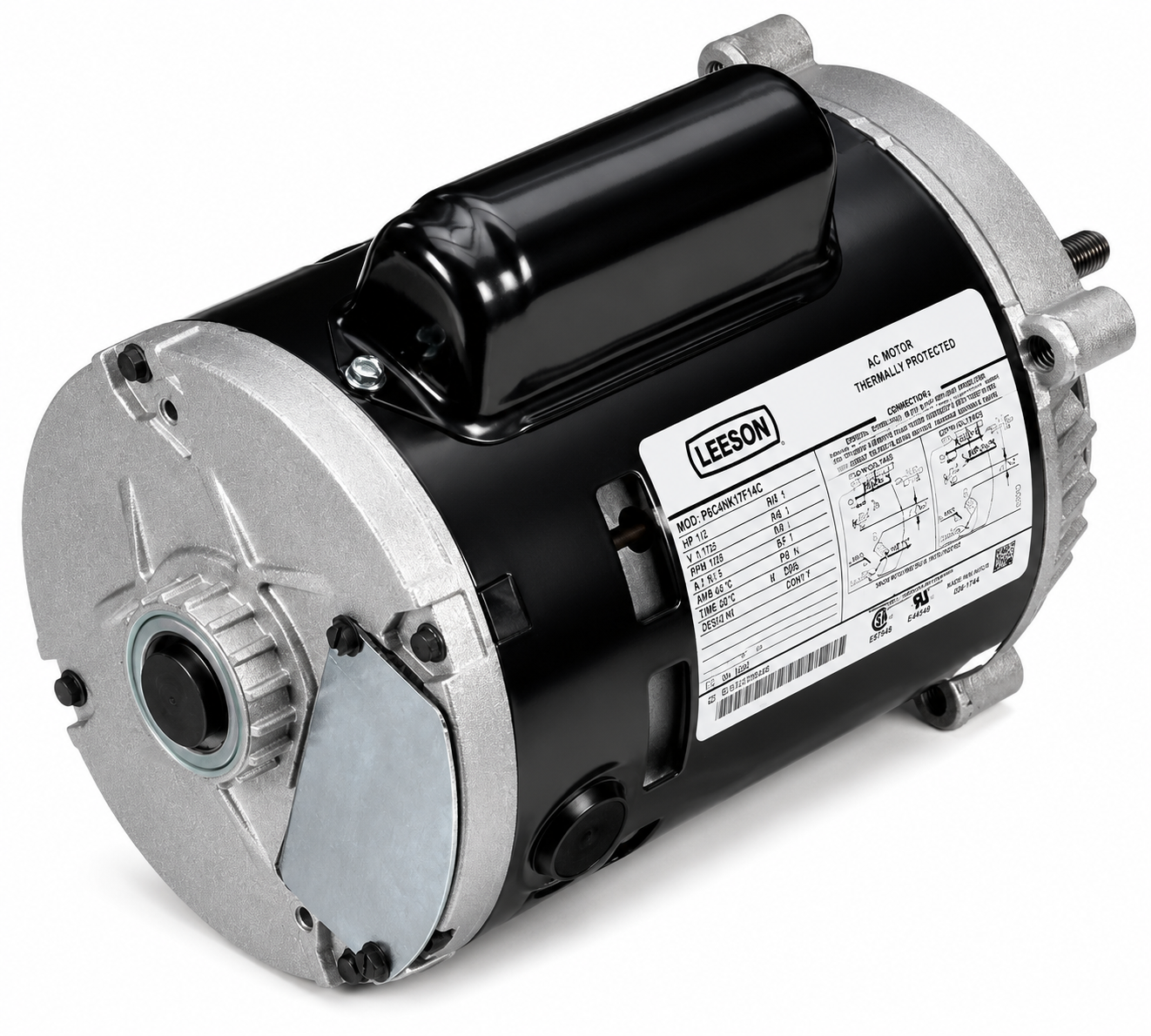

This general‑purpose single‑phase pump motor is designed for continuous duty in fluid‑handling applications, delivering 0.5 Hp at 3450 RPM with capacitor‑start operation in a compact 56J frame.

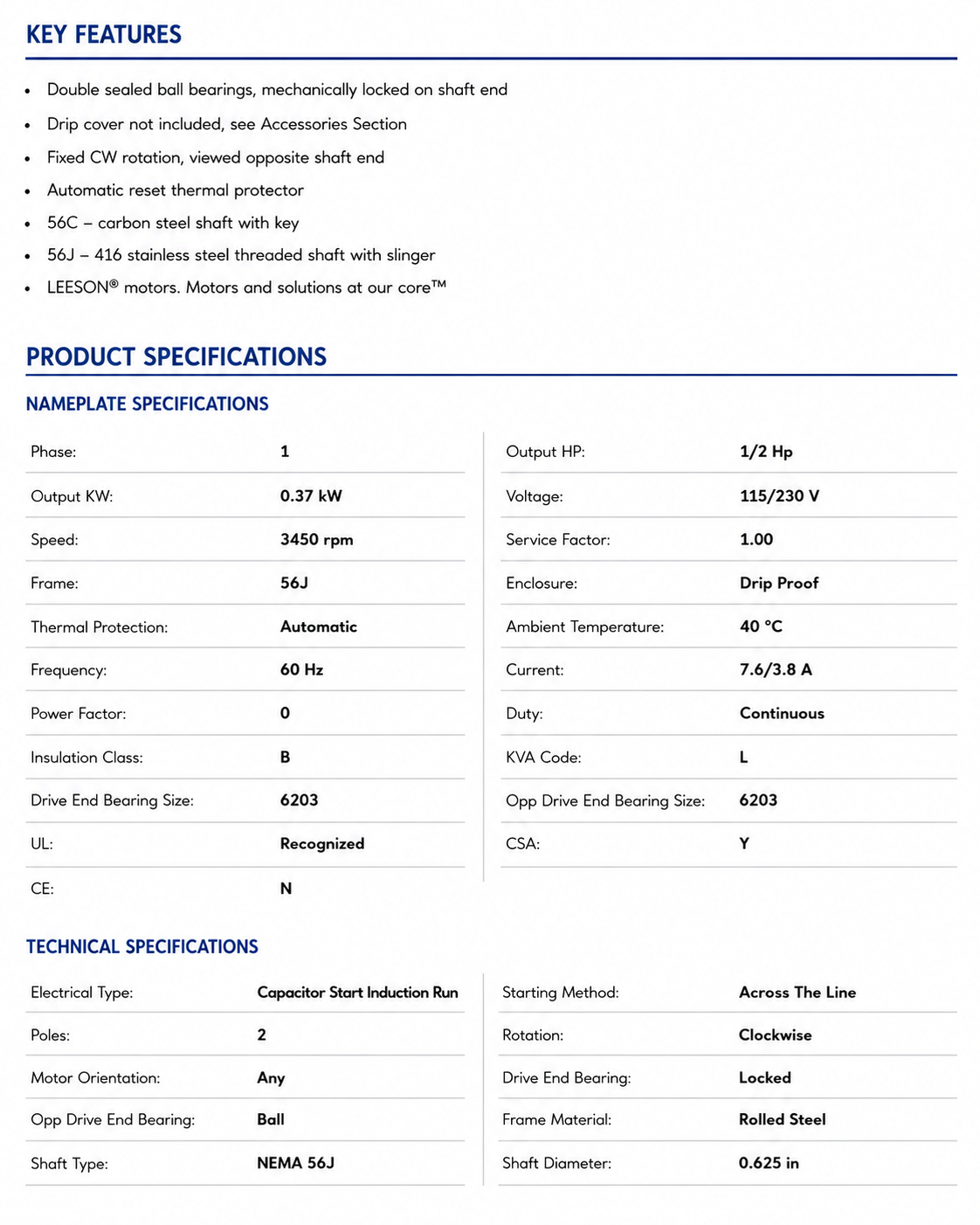

KEY FEATURES

• Model: C331

• Product Type: General purpose pump motor

• Horsepower: 0.5 Hp (0.37 kW)

• Voltage: 115/230 V @ 60 Hz – 1 Phase

• Speed: 3450 RPM @ 60 Hz

• Frame: 56J

• Enclosure: Open Drip‑Proof (ODP)

• Service Factor: 1.6

• Efficiency: 62 %

• Current: 7.6 / 3.8 A

• Duty: Continuous

• Insulation Class: B

• Mounting: Face (C‑Face Footless), all‑angle

• Shaft: 5/8 in diameter × 2 3/8 in length, threaded, stainless steel

• Bearings: Ball bearings

• Frame Material: Rolled Steel

• Rotation: CCWSE (counter‑clockwise, shaft end)

• Number of Speeds: 1

• Certifications: UL Recognized, CSA Certified

• Ambient Rating: 40 °C

• Special Feature: Capacitor‑start design

This motor’s compact 56J frame and capacitor‑start design make it well‑suited for jet pump and fluid‑handling applications, providing reliable continuous duty performance.

CROSS REFERENCE

• EU0502B / EU0502

• MTR-122FDJH
