C235, 1Hp, 1,725 RPM, 115/208‑230 V, 1 Ph, 60 Hz, Open Drip Proof, Frame 56, 5KC49PN0155

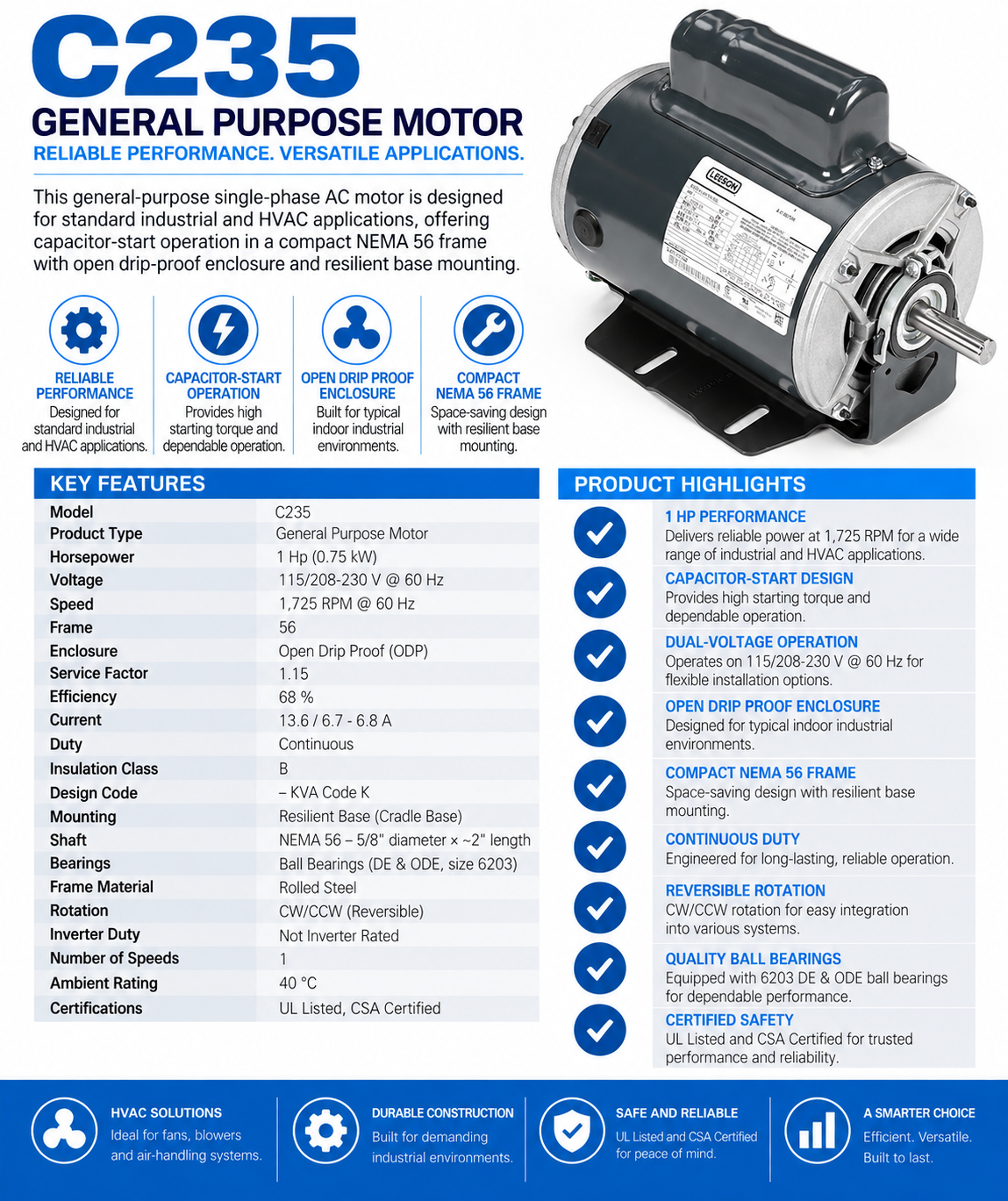

This general-purpose single-phase AC motor is designed for standard industrial and HVAC applications, offering capacitor-start operation in a compact NEMA 56 frame with open drip-proof enclosure and resilient base mounting.

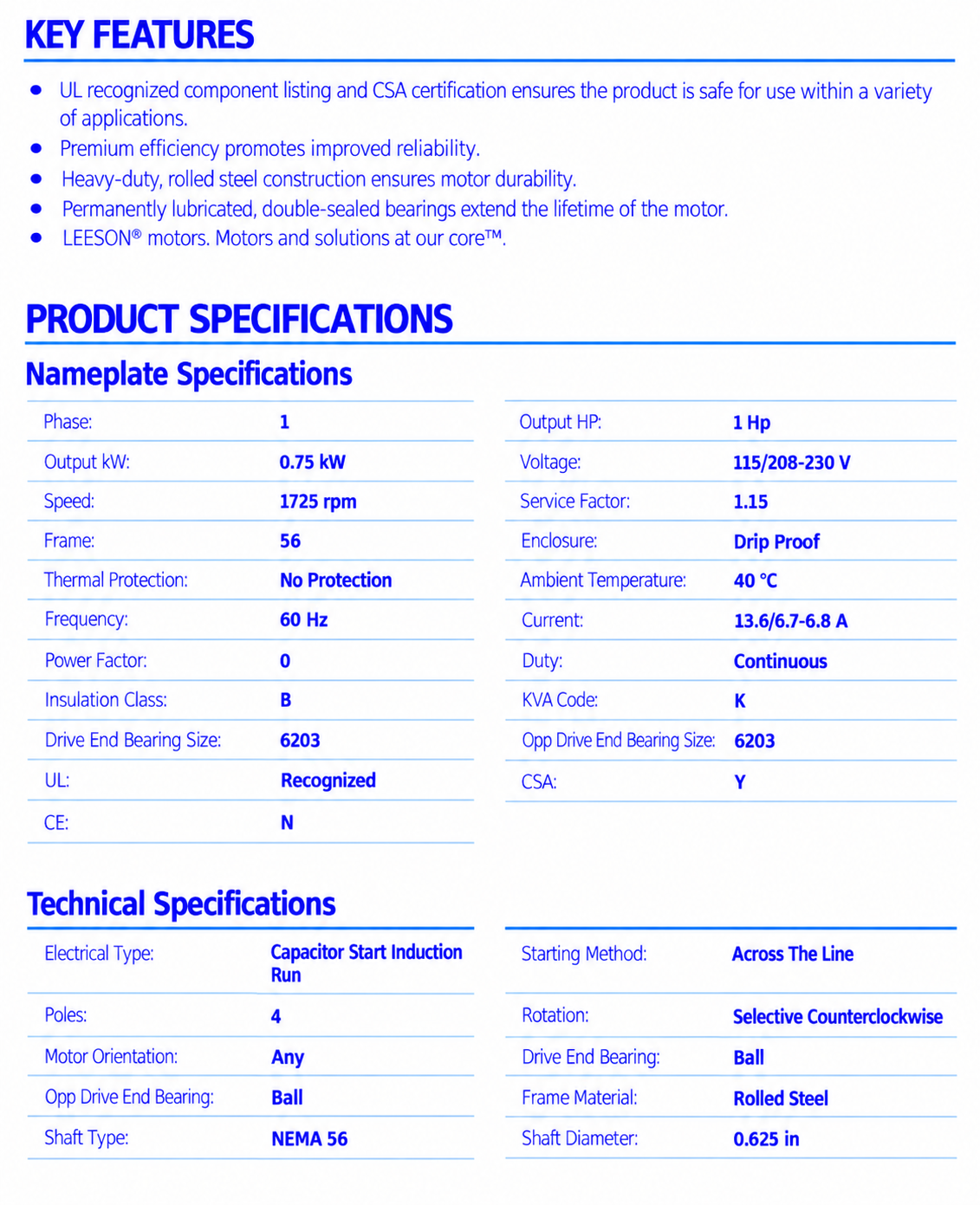

KEY FEATURES

• Model: C235

• Product Type: General Purpose Motor

• Horsepower: 1 Hp (0.75 kW)

• Voltage: 115/208‑230 V @ 60 Hz

• Speed: 1,725 RPM @ 60 Hz

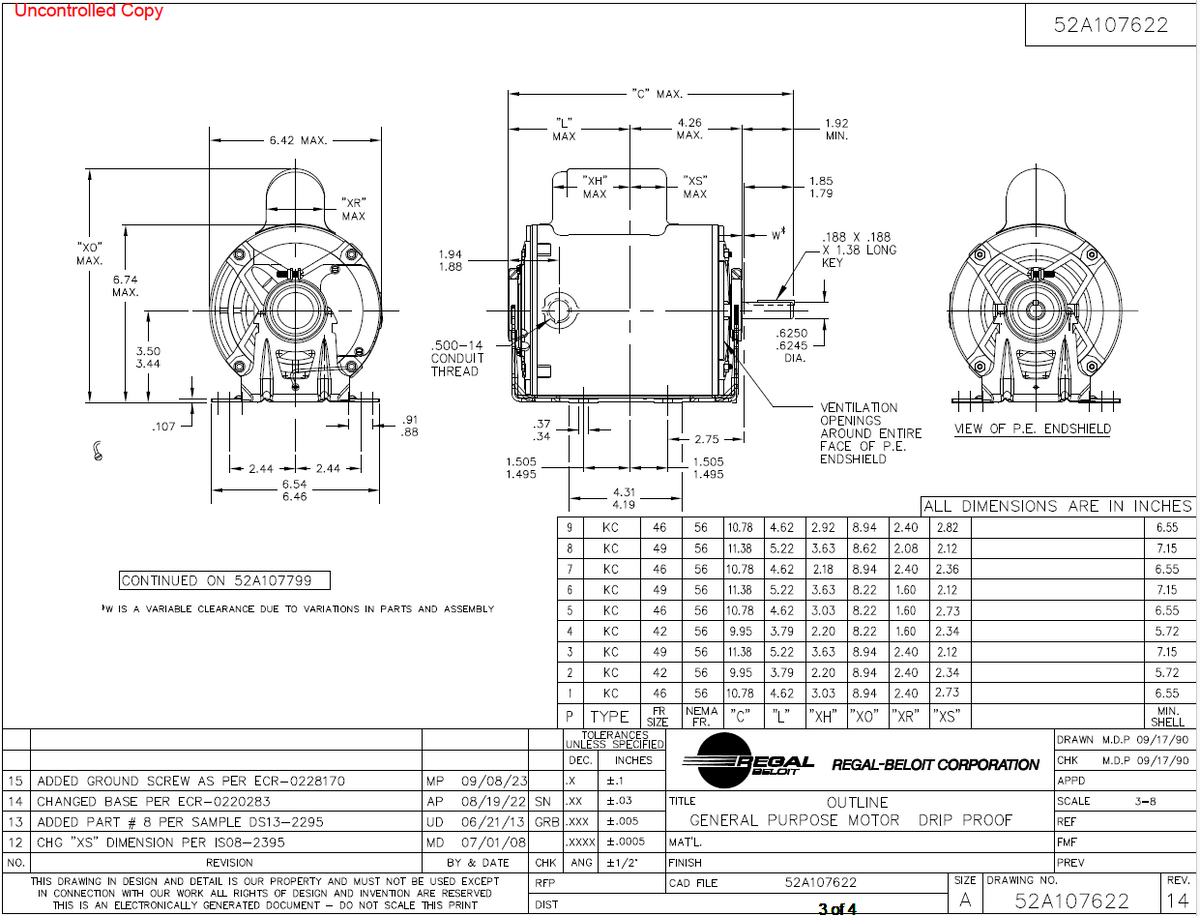

• Frame: 56

• Enclosure: Open Drip Proof (ODP)

• Service Factor: 1.15

• Efficiency: 68 %

• Current: 13.6 / 6.7‑6.8 A

• Duty: Continuous

• Insulation Class: B

• Design Code: – KVA Code K

• Mounting: Resilient Base (Cradle Base)

• Shaft: NEMA 56 – 5/8" diameter × ~2" length

• Bearings: Ball Bearings (DE & ODE, size 6203)

• Frame Material: Rolled Steel

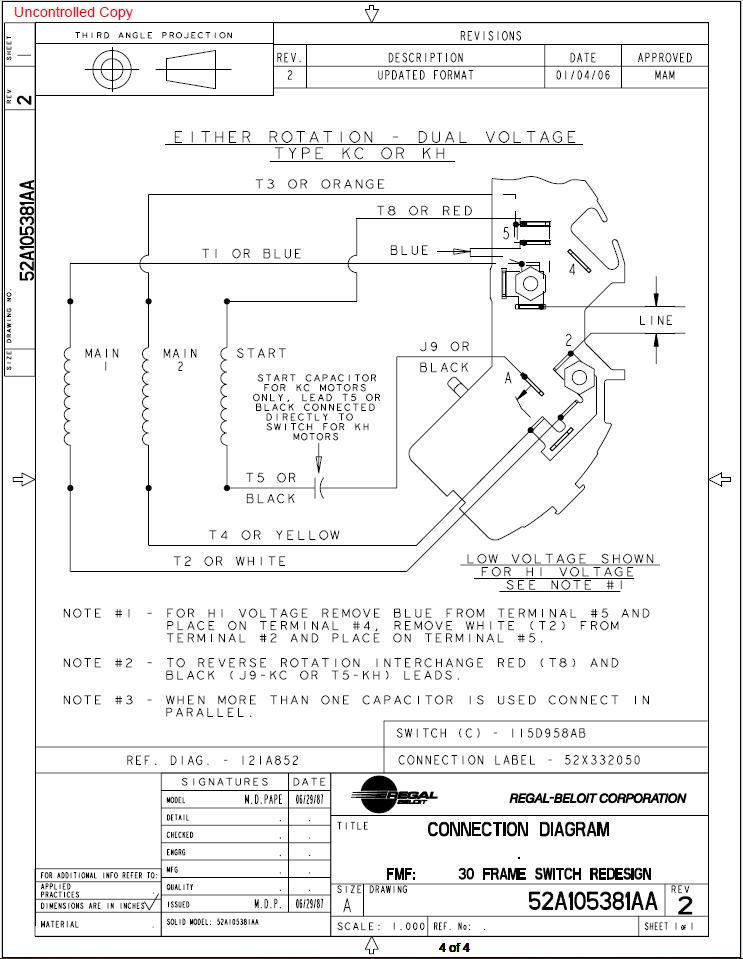

• Rotation: CW/CCW (reversible)

• Inverter Duty: Not Inverter Rated

• Number of Speeds: 1

• Certifications: UL Listed, CSA Certified

• Ambient Rating: 40 °C

• Special Feature: (none specified)

This motor’s capacitor-start design and reversible rotation make it versatile for HVAC and general machinery applications, while its compact frame and open drip-proof enclosure support reliable performance in standard environments.
