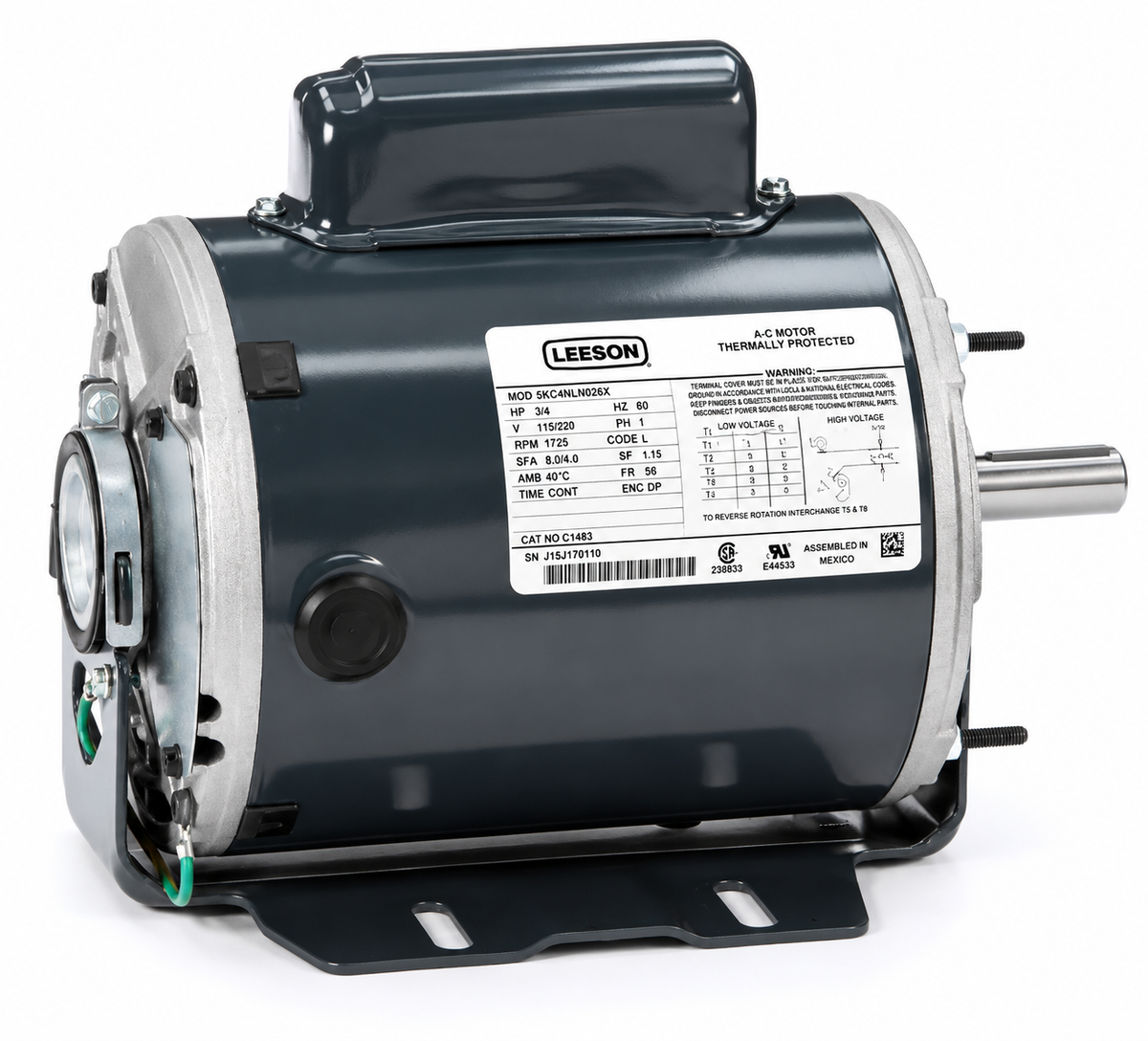

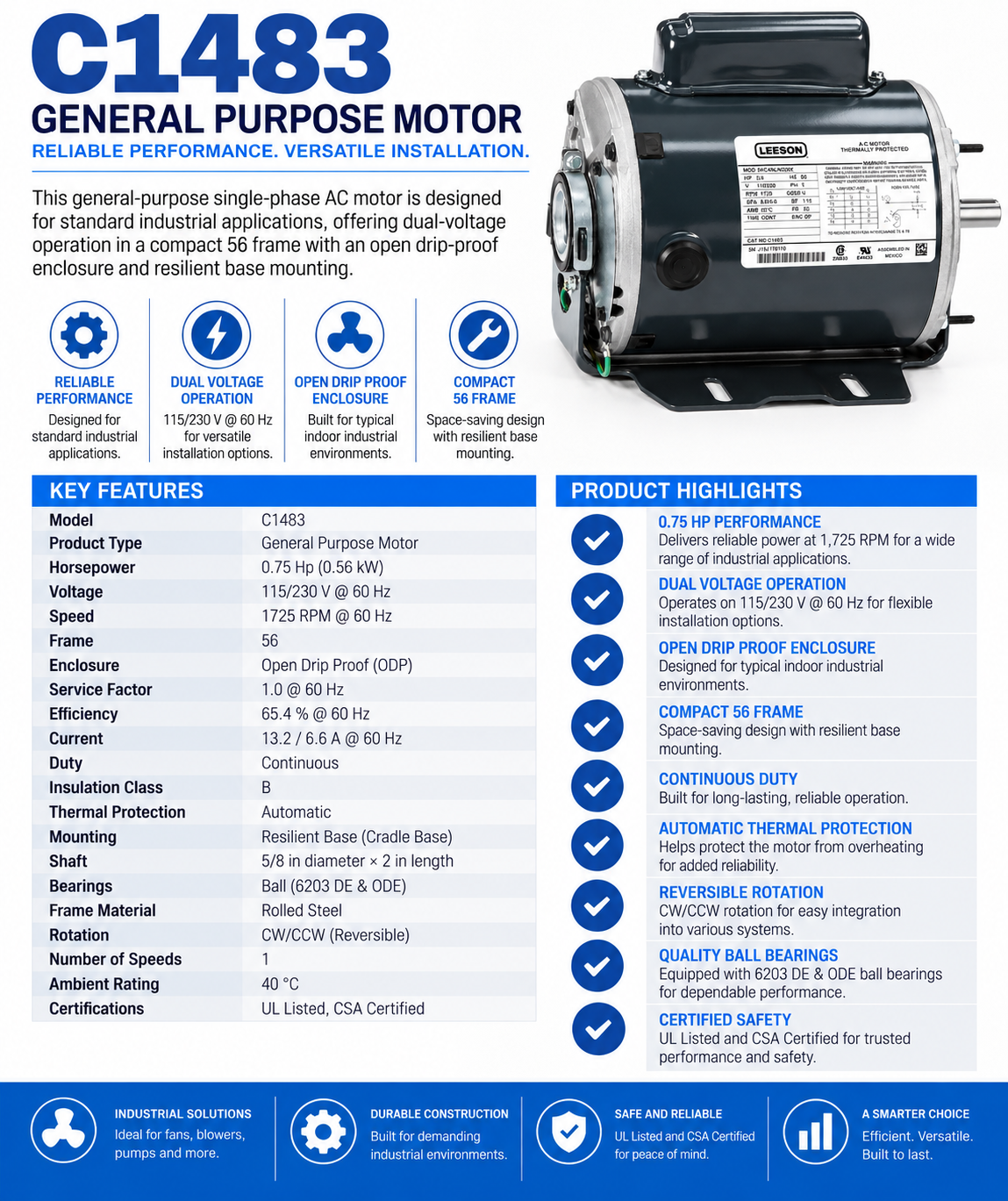

C1483, 0.75Hp, 1725 RPM, 115/230 V, 1 Ph, 60 Hz, Open Drip Proof, Frame 56, 5KC46LN0254X

This general-purpose single‑phase AC motor is designed for standard industrial applications, offering dual‑voltage operation in a compact 56 frame with an open drip‑proof enclosure and resilient base mounting.

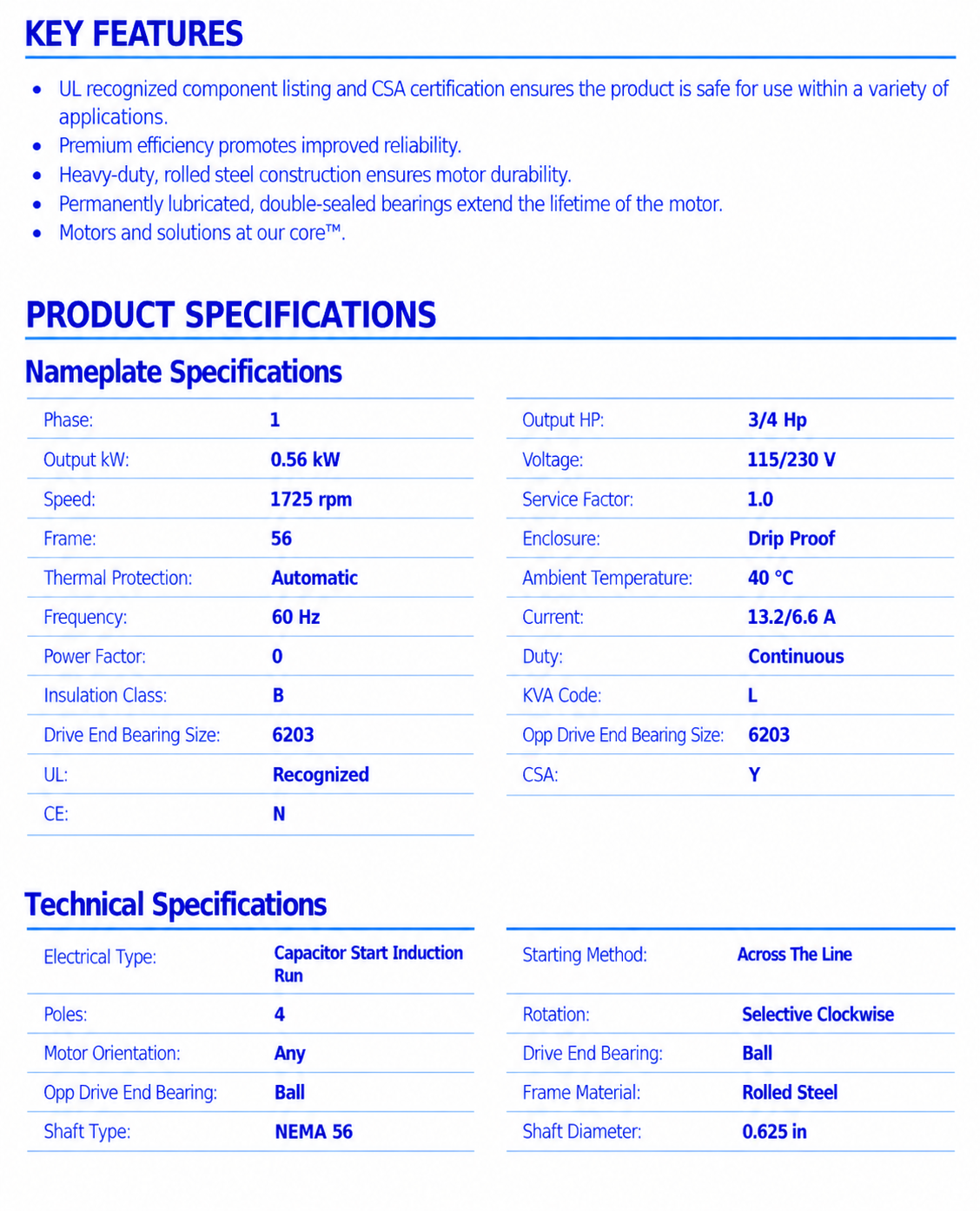

KEY FEATURES

• Model: C1483

• Product Type: General Purpose Motor

• Horsepower: 0.75 Hp (0.56 kW)

• Voltage: 115/230 V @ 60 Hz

• Speed: 1725 RPM @ 60 Hz

• Frame: 56

• Enclosure: Open Drip Proof (ODP)

• Service Factor: 1.0 @ 60 Hz

• Efficiency: 65.4 % @ 60 Hz

• Current: 13.2/6.6 A @ 60 Hz

• Duty: Continuous

• Insulation Class: B

• Thermal Protection: Automatic

• Mounting: Resilient Base (Cradle Base)

• Shaft: NEMA 56 – 5/8 in diameter × 2 in length

• Bearings: Ball (6203 DE & ODE)

• Frame Material: Rolled Steel

• Rotation: CW/CCW (Reversible)

• Number of Speeds: 1

• Certifications: UL Listed, CSA Certified

• Ambient Rating: 40 °C

The motor’s dual‑voltage capability and reversible rotation make it adaptable for various installation requirements, while the open drip‑proof design ensures reliable performance in indoor industrial environments.
