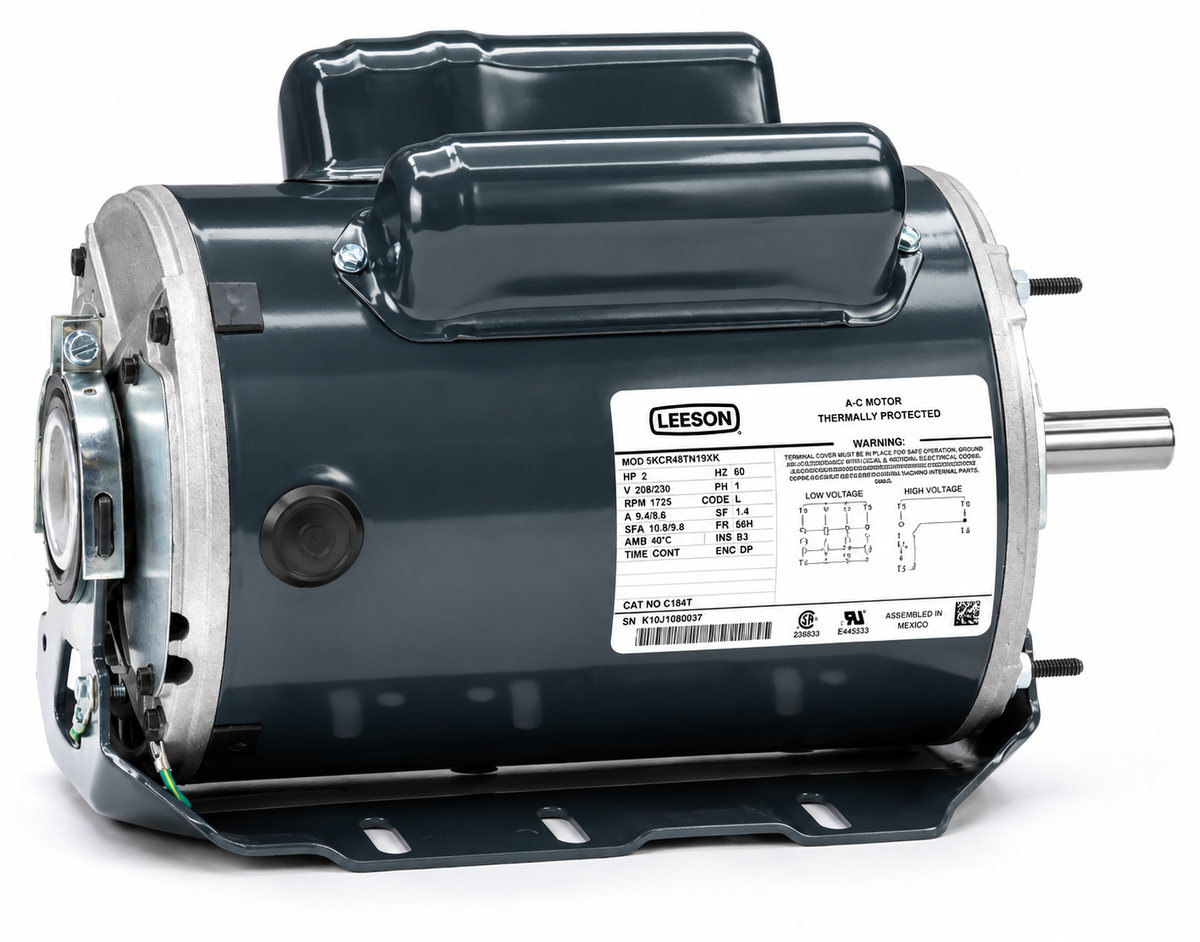

C1479, 1-1/3Hp, 1725/1140 RPM, 208‑230/190‑220 V, 1 Ph, 60 Hz, Drip‑Proof, Frame 56H, 5KCR48TN3084X

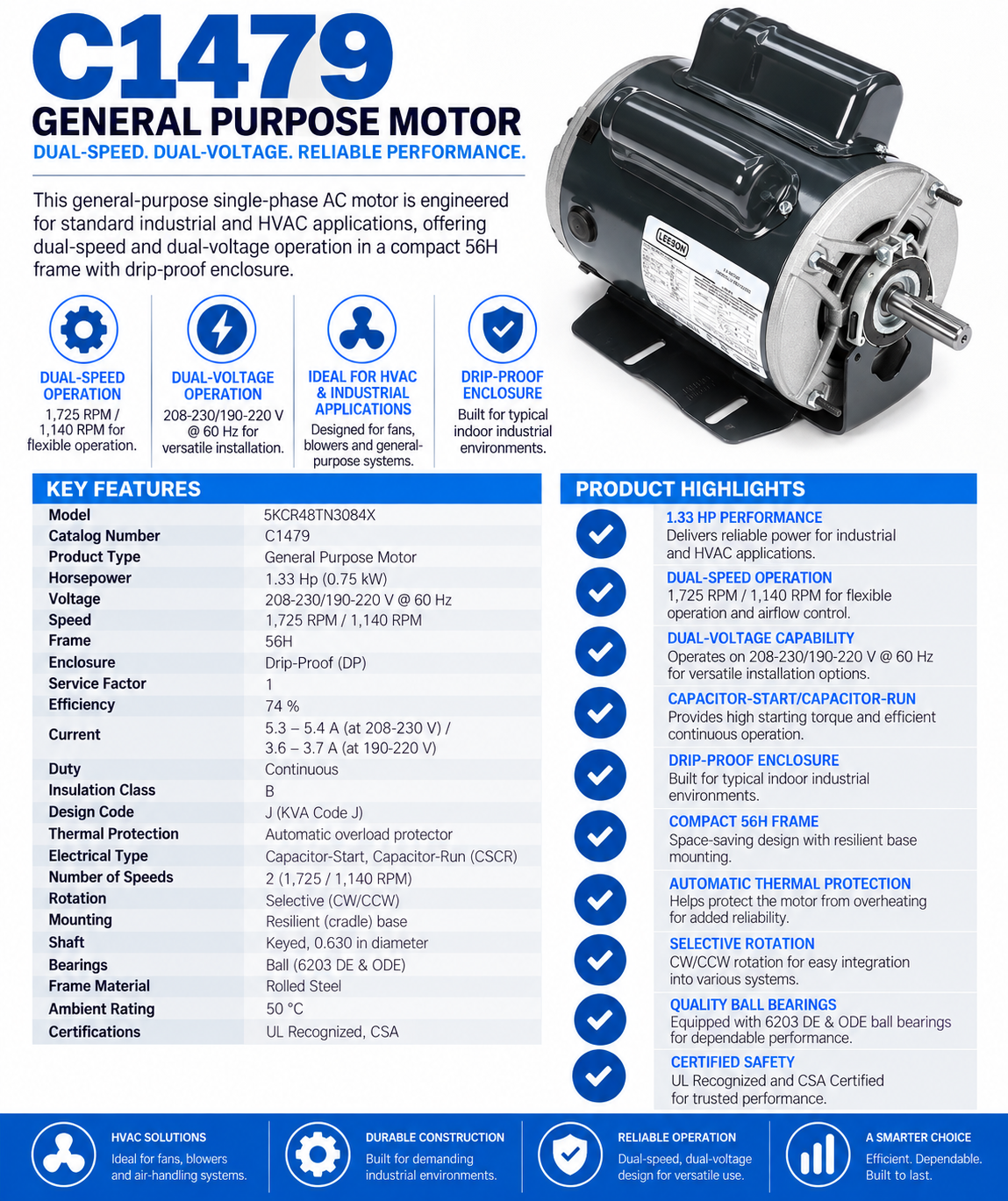

This general‑purpose single‑phase AC motor is engineered for standard industrial and HVAC applications, offering dual‑speed and dual‑voltage operation in a compact 56H frame with drip‑proof enclosure.

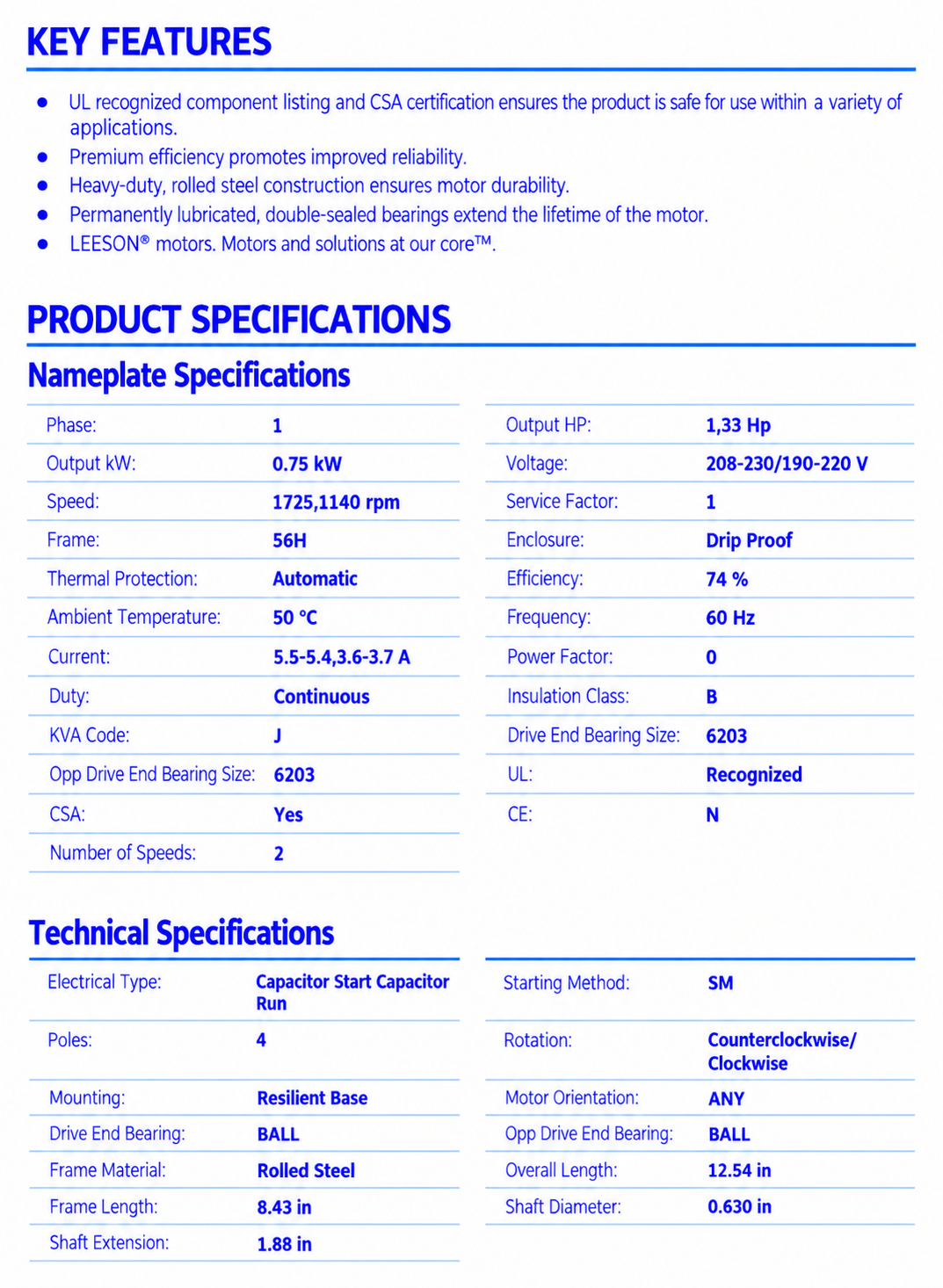

KEY FEATURES

• Model: 5KCR48TN3084X

• Catalog Number: C1479

• Horsepower: 1-1/3Hp (0.75 kW)

• Voltage: 208‑230/190‑220 V @ 60 Hz

• Speed: 1725 RPM

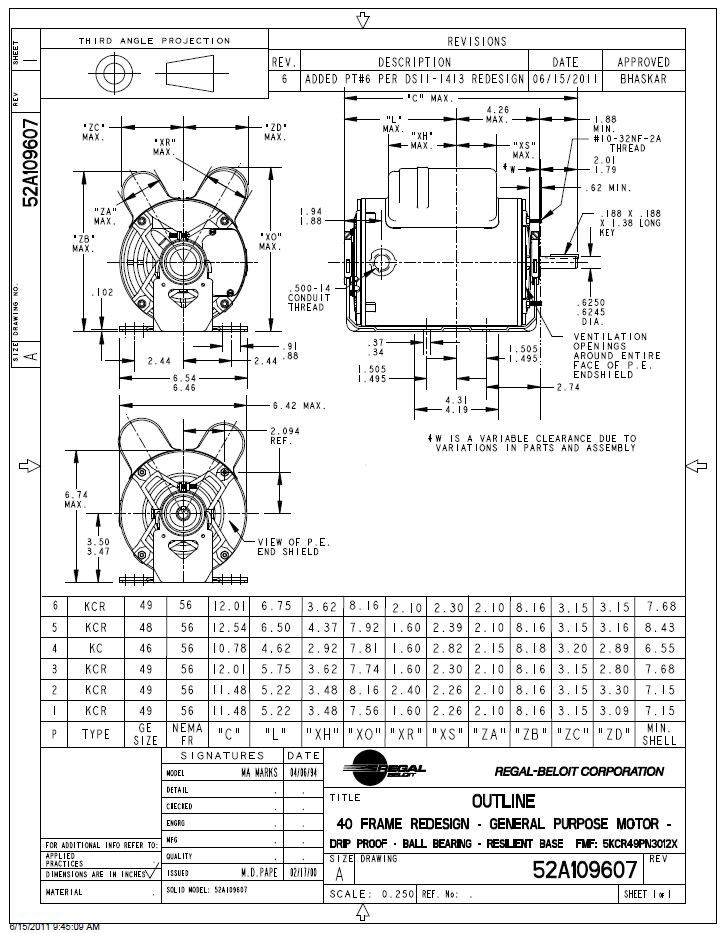

• Frame: 56H

• Enclosure: Drip‑Proof (DP)

• Service Factor: 1

• Efficiency: 74 %

• Current: 5.3‑5.4 A (at 208‑230 V) / 3.6‑3.7 A (at 190‑220 V)

• Duty: Continuous

• Insulation Class: B

• Design Code: J (KVA Code J)

• Thermal Protection: Automatic overload protector

• Mounting: Resilient (cradle) base

• Shaft: Keyed, 0.630 in diameter

• Bearings: Ball (6203 DE & ODE)

• Frame Material: Rolled Steel

• Rotation: Selective (CW/CCW)

• Number of Speeds: 2 (1725/1140 RPM)

• Ambient Rating: 50 °C

• Certifications: UL Recognized, CSA

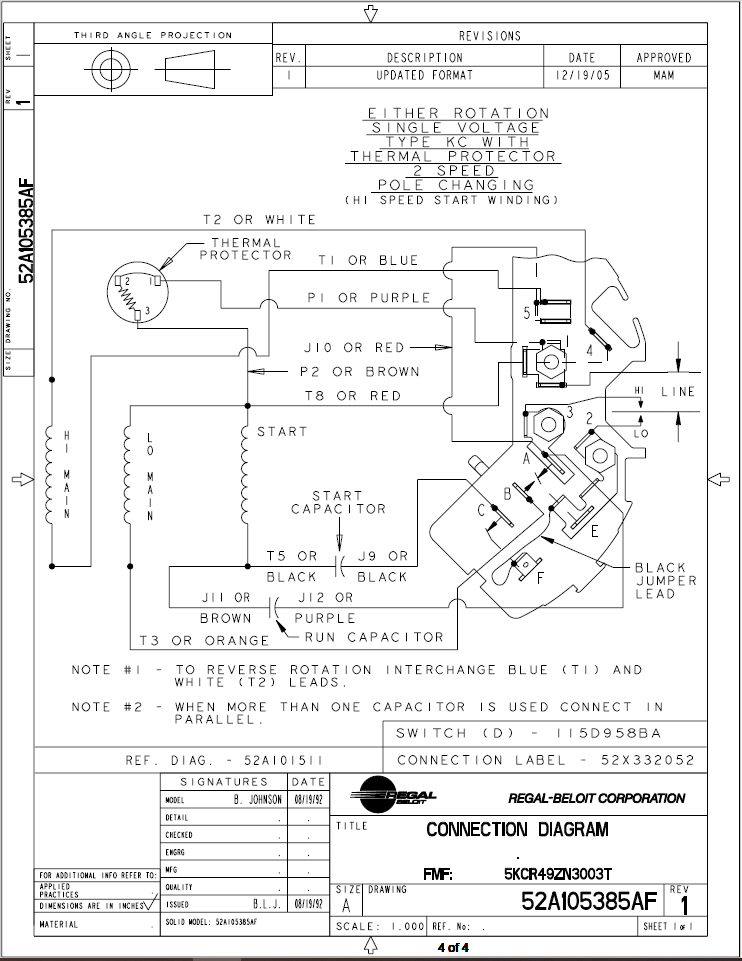

• Electrical Type: Capacitor‑Start, Capacitor‑Run (CSCR)
