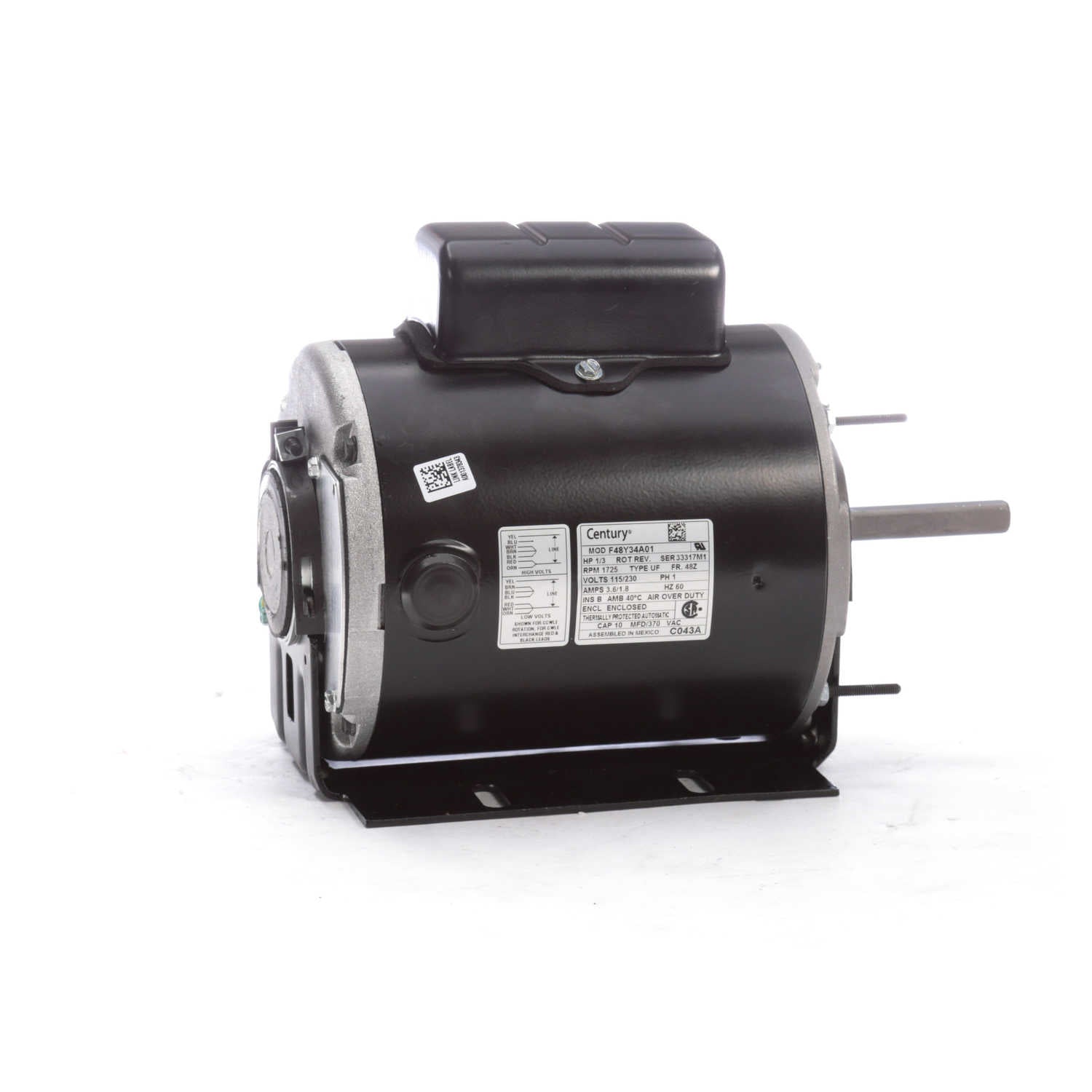

C043A, 1/3 Hp, 1725 Rpm, 115/230V, 48Z, TENV, Century,

CENTURY

  • $306.48


C043A, Century, Ao SMITH,

Catalog No : C043A
Part Description : 1/3,1725,TE,48Z,1/60/115/230 Category : Direct Drive Fan
Stock : Yes
Nameplate Specifications

Output HP : 1/3 HP Output KW : 0.25 kW
Frequency : 60 Hz Voltage : 115/230 V
Current : 3.6/1.8 A Speed : 1725 RPM
Service Factor : 1 Phase : 1
Duty : Air Over Insulation Class : B
Frame : 48Z Enclosure : Totally Enclosed
Overload Protector : Automatic Ambient Temperature : 40 °C
UL : Recognized CSA : Y
CE : N
Technical Specifications

Electrical Type : Permanent Split Capacitor Starting Method : Across The Line
Poles : 4 Rotation : Reversible
Mounting : Resilient Base Drive End Bearing : Ball
Opp Drive End Bearing : Ball Frame Material : Rolled Steel
Shaft Type : Flat Overall Length : 10.09 in
Frame Length : 6.00 in Shaft Diameter : 0.500 in
Shaft Extension : 3.14 in UPC : 786674015075
Weight : 20.00 LB
