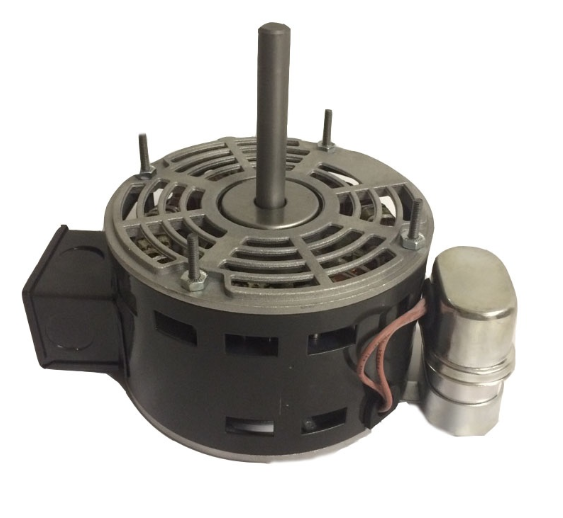

C03E2A, 1/8Hp, 1600 RPM, 115V, 1PH, 60Hz, Fr. 48, Permanent Split Capacitor

C03E2A , 1/8Hp, 1600 RPM, 115V, 1PH, 60Hz, Fr. 48, Permanent Split Capacitor

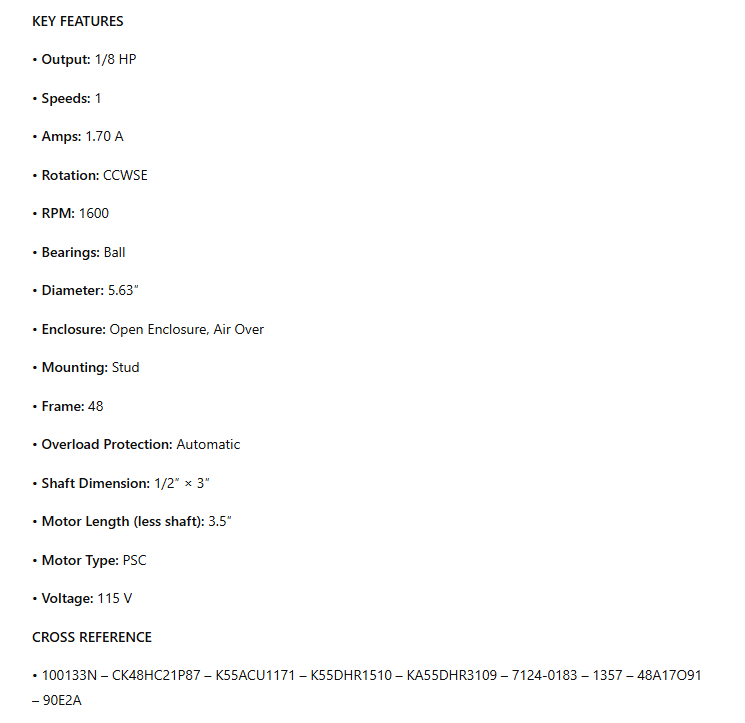

KEY FEATURES

• Model Number: K055ZZZ1832012B

• Output: 1/8 HP (0.1 kW)

• RPM: 1600

• Voltage: 115 V

• Phase: 1

• Poles: 4

• Frequency: 60 Hz

• Frame: 48

• Mounting: Stud

• Enclosure: Open

• Service Factor: 1.0

• Insulation Class: B

• Rotation: CCW Lead End Reverse

• Run Capacitor: 5 µF @ 370 V

• Full Load Amps: 1.7 A

CROSS REFERENCE

• 100133N – CK48HC21P87 – K55ACU1171 – K55DHR1510 – KA55DHR3109 – 7124-0183 – C03E2A – 48A17O91 – 90E2A
