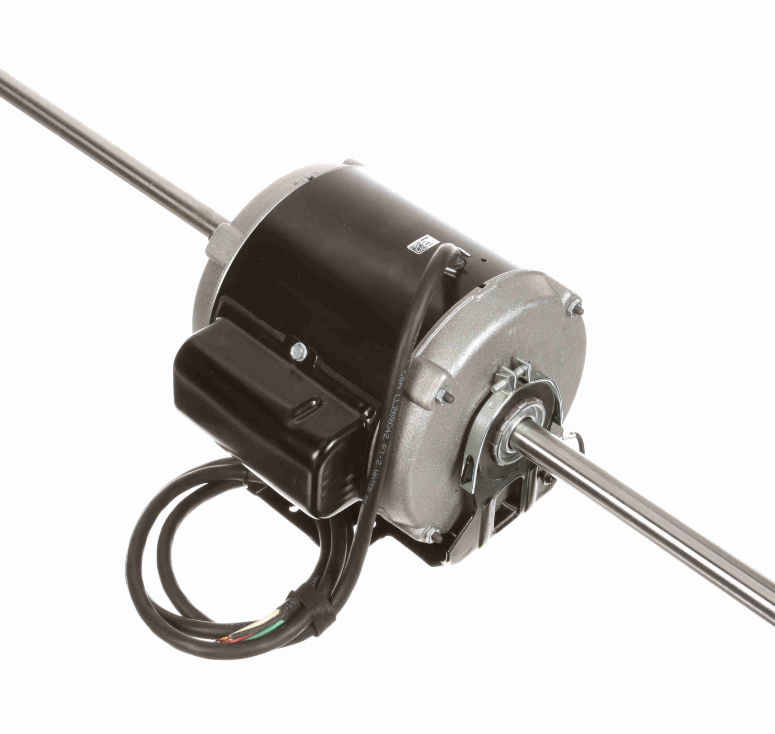

C034, OEM Replacement Motor, 1/6Hp, 1 Ph, 60 Hz, 115 V, 800 RPM, J56Z Frame, TEAO, 18653000

C034, OEM Replacement Motor, 1/6Hp, 1 Ph, 60 Hz, 115 V, 800 RPM, J56Z Frame, TEAO

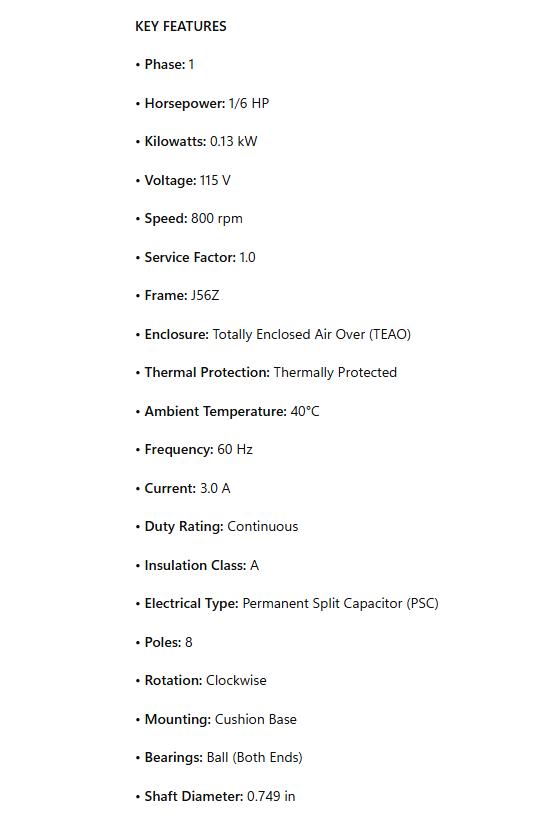

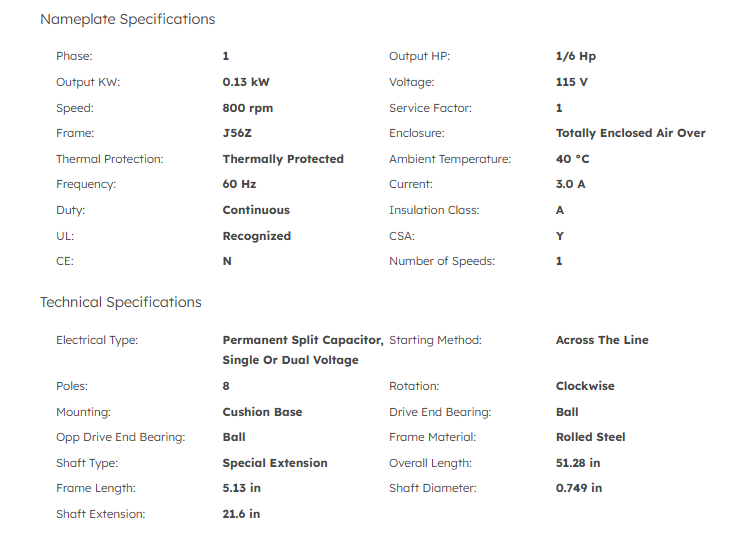

KEY FEATURES

• Phase: 1

• Horsepower: 1/6 HP

• Kilowatts: 0.13 kW

• Voltage: 115 V

• Speed: 800 rpm

• Service Factor: 1.0

• Frame: J56Z

• Enclosure: Totally Enclosed Air Over (TEAO)

• Thermal Protection: Thermally Protected

• Ambient Temperature: 40°C

• Frequency: 60 Hz

• Current: 3.0 A

• Duty Rating: Continuous

• Insulation Class: A

• Electrical Type: Permanent Split Capacitor (PSC)

• Poles: 8

• Rotation: Clockwise

• Mounting: Cushion Base

• Bearings: Ball (Both Ends)

• Shaft Diameter: 0.749 in
