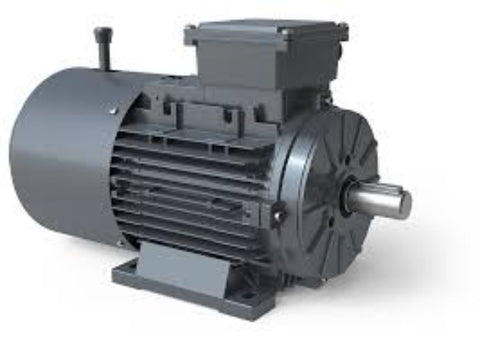

BMB0004D-C, 1 HP, 1800 RPM, 230/460V, 56C, Brake Motor, TECHTOP, TEFC, Premium

TECHTOP

  • $957.96


BMB0004D-C, TECHTOP, REPLACE BALDOR VBM3546, SPEC 34L088X269-C, VBM3546, VEBM3546, 35E058M492G1,

  • 1 HP
  • 1800 RPM
  • 208-230/460 Volts
  • Frame : 56C
  • Brake motor
  • Enclosure TEFC
  • Premium Efficency
  • Ball Bearing
  • Continous Duty Rating
  • 50/60 HZ
  • Techtop

STANDARD FEATURES

  • Removable feet F1, F2, F0 field convertible
  • 1.25 Service Factor with 60Hz operation
  • 36 Month warranty
  • Conduit Box is 90º rotatable
  • Cast aluminum construction with cast aluminum c-flanges
  • Anti-microbial (tropicalization) on stator winding
  • Compact lightweight design
  • Dual oversized shielded bearings
  • 1045 Steel shaft
  • Surface finish:
    • Alkyd enamel RAL7024 - Graphite Gray
    • Black oxide surface treatment for increased corrosion resistance
  • Stainless steel nameplate
  • Corrosion resistant hardware
  • Normally closed brake
  • Bridge rectifier used for AC to DC conversion, located inside motor terminal box
  • Manual brake release included
  • Adjustable brake torque
  • Alternate brake voltages and rectifiers available

INSULATION AND INVERTER RATING

  • Class F Insulation (Impregnation resin, magnet wire and insulation materials are Class H)
  • Designed to Class B temperature risee
  • Vacuum Impregnated
  • Inverter Rated 15:1 Constant Torque, 30:1 Variable Torque (1.0 S.F. on VFD Power)
  • Exceeds NEMA MG 1 Part 31.4.4.2
