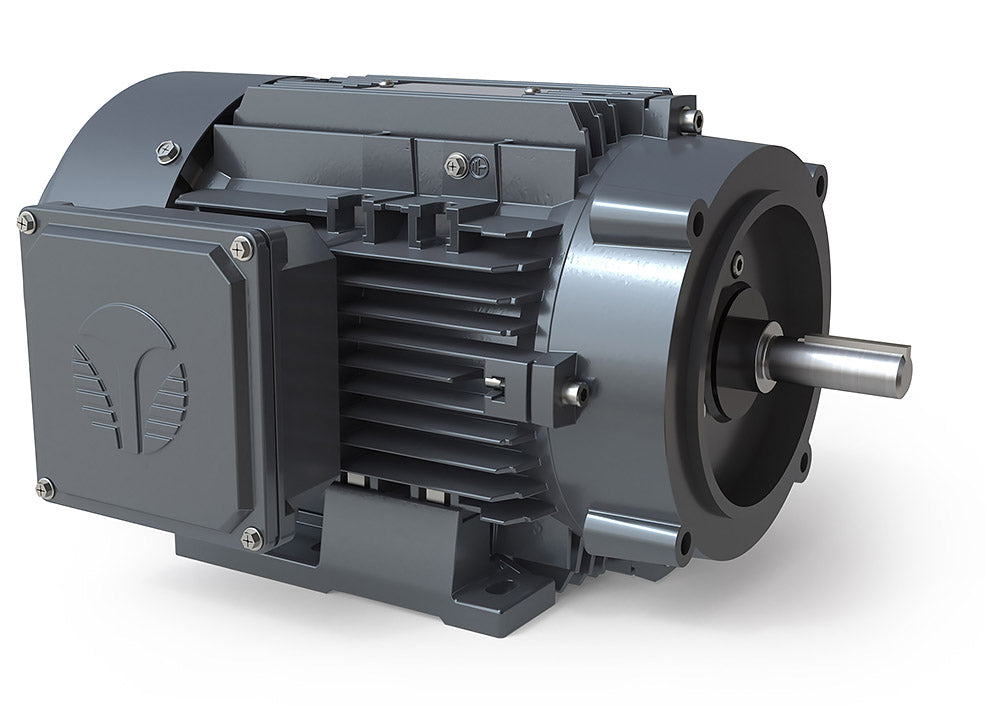

BLA0034FP-C, TECHTOP, 3 HP, 1800 Rpm, 575V, FR: 56HC, Tefc, Premium

TECHTOP

  • $497.07


BLA0034FP-C, TECHTOP,

  • 3 Hp
  • 1800 Rpm
  • 575 Volts
  • Frame 56HC
  • Enclosure TEFC
  • Removable base
  • Premium Efficency

Motor Features

STANDARD FEATURES
  • Removable feet F1, F2, F0 field convertible
  • 1.15 Service Factor with 60Hz operation
  • 24 Month warranty
  • Conduit Box is 90º rotatable
  • Cast aluminum construction with cast aluminum c-flanges
  • Class I, Division II, Groups A, B, C and D compliant
  • Anti-microbial (tropicalization) on stator winding
  • Compact lightweight design
  • Dual oversized shielded bearings size 6204ZZ
  • 1045 Steel shaft
  • Surface finish:
    • Alkyd enamel RAL7024 - Graphite Gray
    • Black oxide surface treatment for increased corrosion resistance
  • Stainless steel nameplate
  • Corrosion resistant hardware
OPERATING PARAMETERS
  • Continuous (S1) duty
  • Ambient temperatures up to 40ºC
  • Installation up to 1000 MASL (3300 ft.)

CONNECTION
  • 9-Lead 230V parallel-wye / 460V series-wye connection
  • 3-Lead 575V wye connection

INGRESS PROTECTION

The standard degree of enclosure protection is IP55 (increased IP protection is available). Both drive end and non-drive end are fitted with double lip oil seals, including a rubber shaft slinger on the drive end. Terminal box is double gasketed. DE and NDE end bell fitted with sintered brass one-way drain.


INSULATION AND INVERTER RATING
  • Class F Insulation
  • Designed to Class B temperature rise
  • Vacuum Impregnated
  • Inverter Rated 4:1 Constant Torque, 10:1 Variable Torque (1.0 S.F. on VFD Power). Meets NEMA MG 1 part 30 standards
