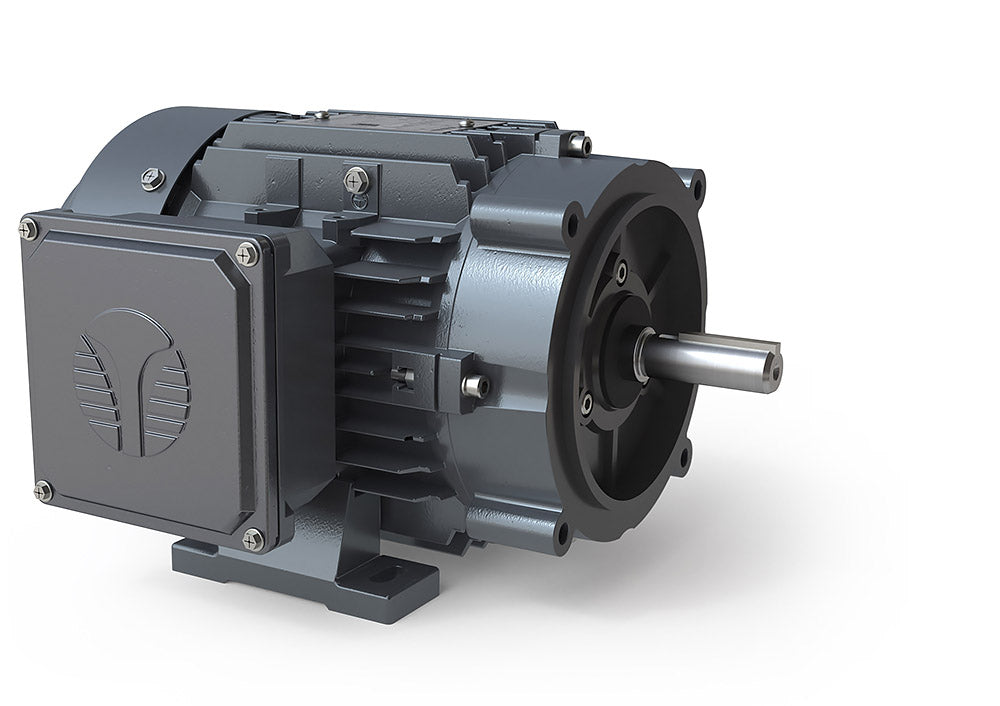

BLA0006DP-C, Techtop, 1 Hp, 1145 RPM, 208-230/460V, Fr 56C, Tefc, 3PH
BLA0006DP-C, Techtop,Replace Maxmotion MQRP-104CW,
- 1 Hp,
- 1145 RPM,
- 3 Phases
- 50/60 HZ
- Inverter Duty
- Premium Efficiency
- 208-230/460 Volts
- Frame 56C (5/8'')
- Enclosure TEFC
-
Rated Motor Current3.36-3.26/1.63
- Removable feet F1, F2, F0 field convertible
- 1.25 Service Factor with 60Hz operation / 1.0 Service Factor with 50Hz operation
- 36 Month warranty
- Conduit Box is 90º rotatable
- Cast aluminum construction with cast aluminum c-flanges
- Class I, Division II, Groups A, B, C and D compliant
- Anti-microbial (tropicalization) on stator winding
- Compact lightweight design
- Dual oversized shielded bearings
- 1045 Steel shaft
- Surface finish:
- Alkyd enamel RAL7024 - Graphite Gray
- Black oxide surface treatment for increased corrosion resistance
- Stainless steel nameplate
- Corrosion resistant hardware
