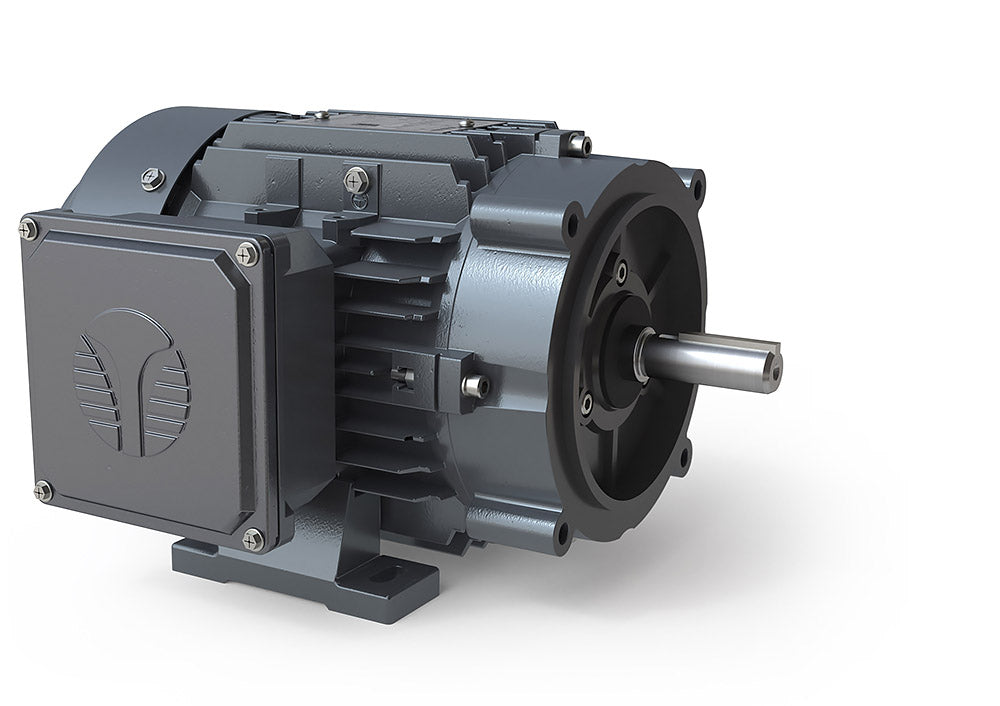

BLA.752D-C-RND, Techtop, 3/4 Hp, 3500 Rpm, 208-230/460V, Fr: 56C, Round Body
BLA.752D-C-RND, Techtop, BLA.752DP-C, Techtop, Replace MQR-342CW MaxMotion, Leeson 110915.00, Baldor CM3541, 34A62-255
- Round Body No Base Mouting
- 0.75 HP
- 3500 r/min 60Hz Rated Motor Speed
- 2870 r/min 50Hz
- 208-230/460 V/60Hz
- 190/380 V/50Hz
- Rated Motor Current 2.38-2.4/1.2
- A (In) @ 60Hz 2.64/1.32
- Phase 3
- Locked Rotor Current @ High Voltage 8.67A
- A (In) @ 60Hz
- Fl Current @ 208V 2.38A (In) @ 60Hz
- Service Factor 1.25 @ 60Hz
- 1 @ 50Hz
- KVA Code
- Nominal Efficiency 77
- Nominal Power Factor 0.75 cosφ @ 60Hz
- VFD DUTY (S.F. 1.0)
- RATIO Variable Torque 30:1
- 2 - 60 Constant Torque 15:1
