MARATHON | SKU:
EMN-017821

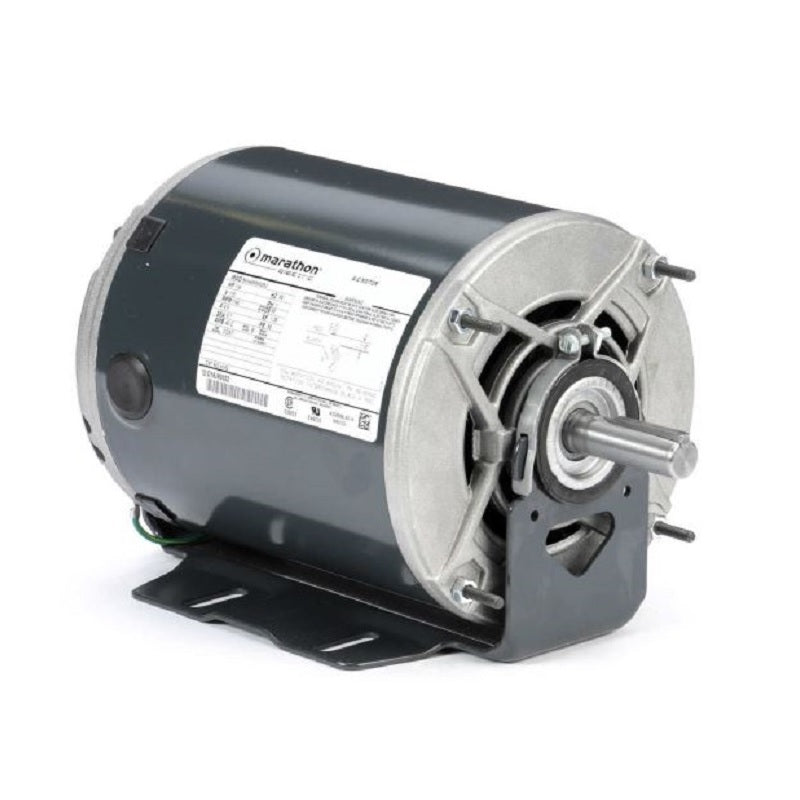

B387, Marathon, 056S17D7202, 1/3-1/6Hp, 1800 Rpm, Frame:56, 115 Volts, DP
Regular price
$359.00
Unit price
/
Unavailable
B387, Marathon, 056S17D7202, 1/3-1/6Hp, 1800 Rpm, Frame:56, 115 Volts, DP is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
B387, Marathon, 056S17D7202, 1/3-1/6Hp, 1800 Rpm, Frame:56, 115 Vol...
Regular price
$359.00
Unit price
/
Unavailable
Description
Description
B387,Marathon,056S17D7202, Replace Marathon, H173, 5KH46MN3025,

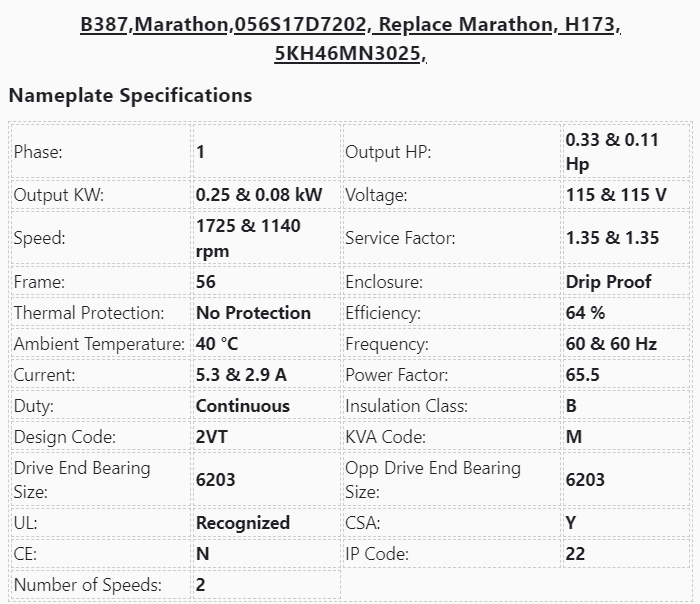

Nameplate Specifications
| Phase: | 1 | Output HP: | 0.33 & 0.11 Hp |
| Output KW: | 0.25 & 0.08 kW | Voltage: | 115 & 115 V |
| Speed: | 1725 & 1140 rpm | Service Factor: | 1.35 & 1.35 |
| Frame: | 56 | Enclosure: | Drip Proof |
| Thermal Protection: | No Protection | Efficiency: | 64 % |
| Ambient Temperature: | 40 °C | Frequency: | 60 & 60 Hz |
| Current: | 5.3 & 2.9 A | Power Factor: | 65.5 |
| Duty: | Continuous | Insulation Class: | B |
| Design Code: | 2VT | KVA Code: | M |
| Drive End Bearing Size: | 6203 | Opp Drive End Bearing Size: | 6203 |
| UL: | Recognized | CSA: | Y |
| CE: | N | IP Code: | 22 |
| Number of Speeds: | 2 |

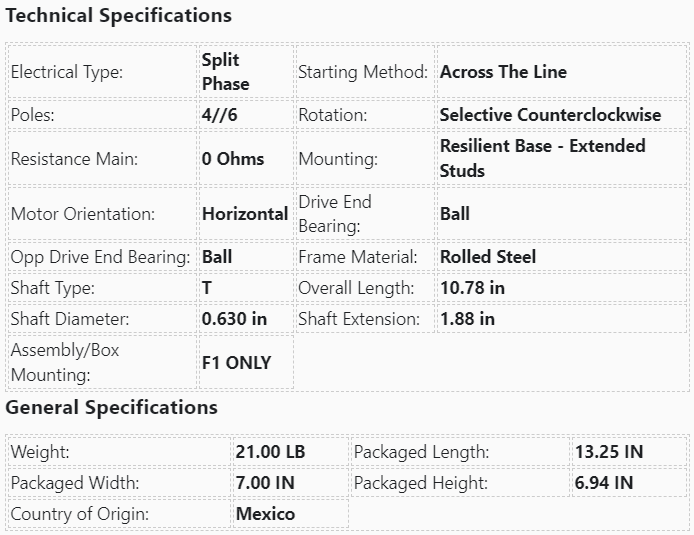

Technical Specifications
| Electrical Type: | Split Phase | Starting Method: | Across The Line |
| Poles: | 4//6 | Rotation: | Selective Counterclockwise |
| Resistance Main: | 0 Ohms | Mounting: | Resilient Base - Extended Studs |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | T | Overall Length: | 10.78 in |
| Shaft Diameter: | 0.630 in | Shaft Extension: | 1.88 in |
| Assembly/Box Mounting: | F1 ONLY |
General Specifications
| Weight: | 21.00 LB | Packaged Length: | 13.25 IN |
| Packaged Width: | 7.00 IN | Packaged Height: | 6.94 IN |
| Country of Origin: | Mexico |

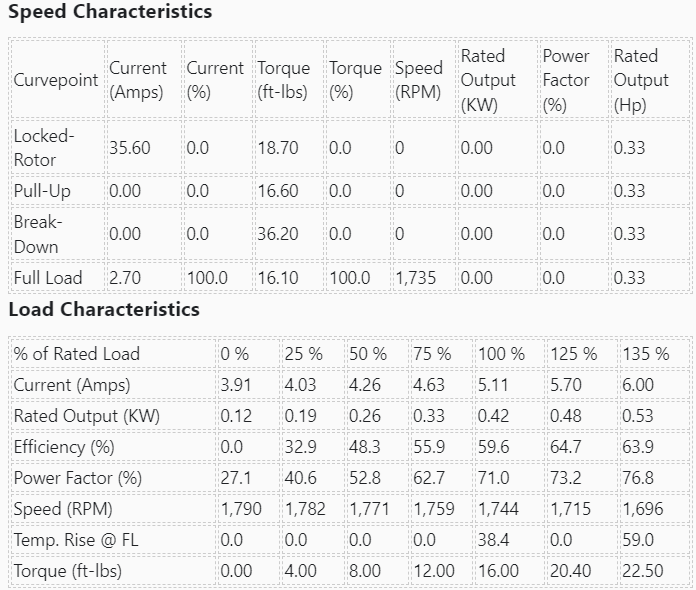

Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Locked-Rotor | 35.60 | 0.0 | 18.70 | 0.0 | 0 | 0.00 | 0.0 | 0.33 |
| Pull-Up | 0.00 | 0.0 | 16.60 | 0.0 | 0 | 0.00 | 0.0 | 0.33 |
| Break-Down | 0.00 | 0.0 | 36.20 | 0.0 | 0 | 0.00 | 0.0 | 0.33 |
| Full Load | 2.70 | 100.0 | 16.10 | 100.0 | 1,735 | 0.00 | 0.0 | 0.33 |
Load Characteristics
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 125 % | 135 % |
| Current (Amps) | 3.91 | 4.03 | 4.26 | 4.63 | 5.11 | 5.70 | 6.00 |
| Rated Output (KW) | 0.12 | 0.19 | 0.26 | 0.33 | 0.42 | 0.48 | 0.53 |
| Efficiency (%) | 0.0 | 32.9 | 48.3 | 55.9 | 59.6 | 64.7 | 63.9 |
| Power Factor (%) | 27.1 | 40.6 | 52.8 | 62.7 | 71.0 | 73.2 | 76.8 |
| Speed (RPM) | 1,790 | 1,782 | 1,771 | 1,759 | 1,744 | 1,715 | 1,696 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 38.4 | 0.0 | 59.0 |
| Torque (ft-lbs) | 0.00 | 4.00 | 8.00 | 12.00 | 16.00 | 20.40 | 22.50 |
