US MOTORS  |  SKU: EMN-017157

AST095.Us Motors,0.95 Hp,3600 Rpm,115/230V,Fr:56J,Odp,C055JMH2156013J,

$385.00
shipping

Estimate shipping

Description

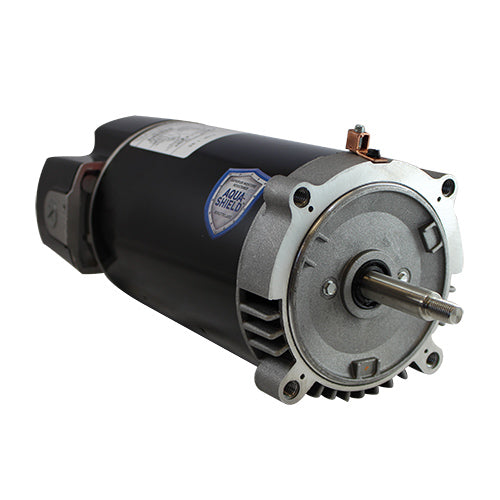

      Nidec AST095, MODEL C055JMH2156013J
  • HP: 0.95
  • Voltage: 115/230
  • RPM: 3450
  • AMPs: 11.0/5.5
  • Phase: 1
  • Rotation:
  • Frame: 56J
  • Enclosure: Open Drip Proof
  • Speeds: 1
  • Protector: Thermally Protected
  • Ambient Temp: 50°C
  • Service Factor:
  • Shaft Dimensions: Shaft Thread 7/16-20 UNF-2A
  • Frequency: 60Hz
  • Diameter: 5.5"
  • Length: 11.25"
  • Bearings: Sealed Ball Bearing
  • Features: Aqua-Shield EZ48, Switch Desing, Triple Bearing Protection, Sealed Ball Bearing, 300 Series Stainless Steel Shaft, Voltage Selection Device
  • Weight: 18
