AMFV90LBA4-575-2, IE3 Premium Efficiency Motors,2Hp, 333/575V, 60Hz, 1735 RPM, Frame 90, MPH90BA4AA08622

AMFV90LBA4-575-2,  IE3 Premium Efficiency Motors,2Hp, 333/575V, 60Hz, 1735 RPM, Frame 90, MPH90BA4AA08622

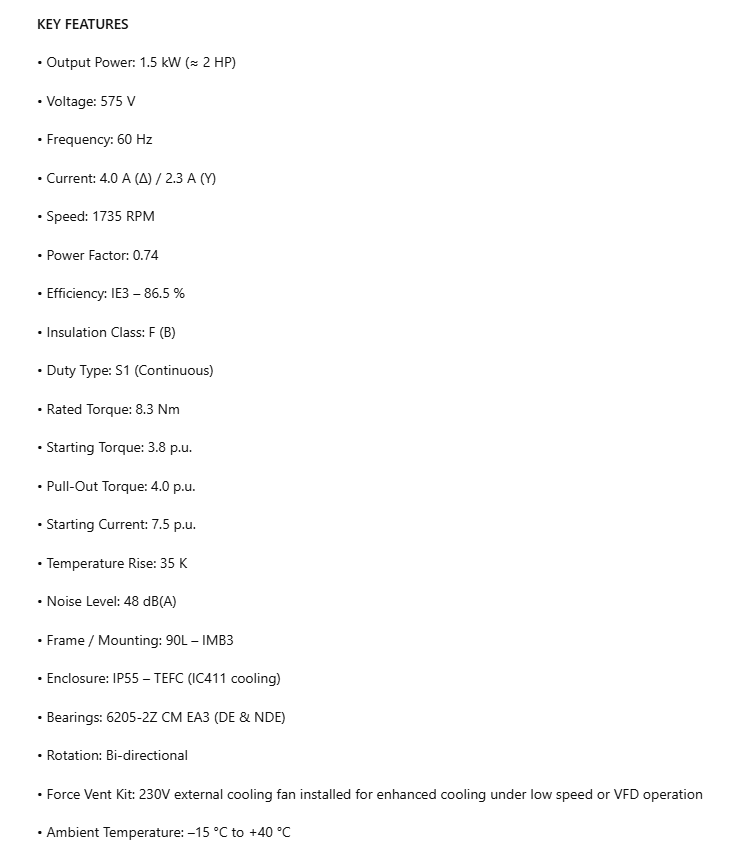

KEY FEATURES

• Output Power: 1.5 kW (≈ 2 HP)

• Voltage: 575 V

• Frequency: 60 Hz

• Current: 4.0 A (Δ) / 2.3 A (Y)

• Speed: 1735 RPM

• Power Factor: 0.74

• Efficiency: IE3 – 86.5 %

• Insulation Class: F (B)

• Duty Type: S1 (Continuous)

• Rated Torque: 8.3 Nm

• Starting Torque: 3.8 p.u.

• Pull-Out Torque: 4.0 p.u.

• Starting Current: 7.5 p.u.

• Temperature Rise: 35 K

• Noise Level: 48 dB(A)

• Frame / Mounting: 90L – IMB3

• Enclosure: IP55 – TEFC (IC411 cooling)

• Bearings: 6205-2Z CM EA3 (DE & NDE)

• Rotation: Bi-directional

• Force Vent Kit: 230V external cooling fan installed for enhanced cooling under low speed or VFD operation

• Ambient Temperature: –15 °C to +40 °C
