ACS380-040N-09A8-1+BIO-01, AC machinery drive module, IEC: Pn 2.2 kW, 9.8 A, 230 V, UL: Pld 2 Hp, 9.3 A, 208 V , Frame R2, BIO-01 module

ACS380-040N-09A8-1+BIO-01, AC machinery drive module, IEC: Pn 2.2 kW, 9.8 A, 230 V, UL: Pld 2 Hp, 9.3 A, 208 V , Frame R2, BIO-01 module

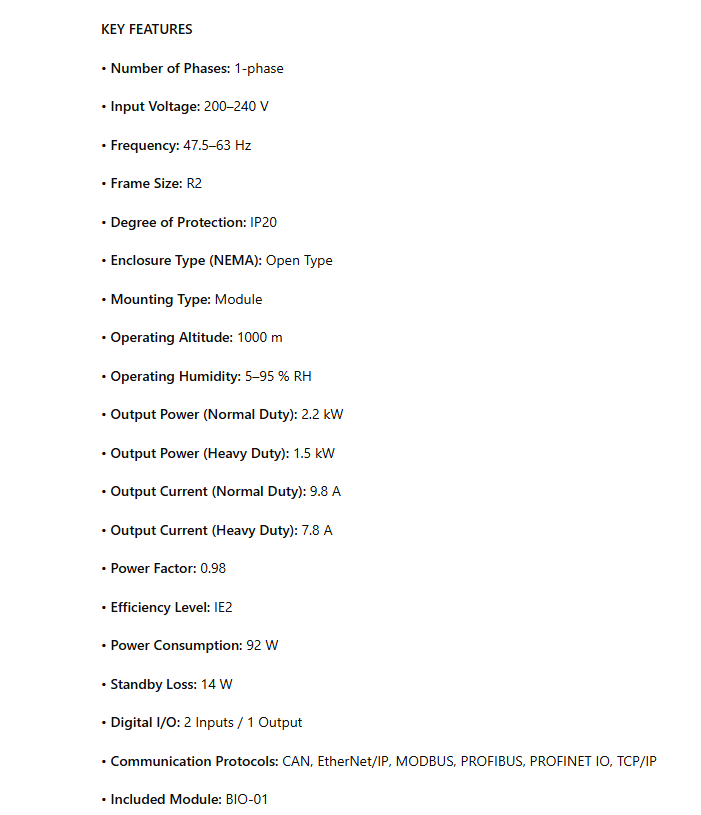

KEY FEATURES

• Number of Phases: 1-phase

• Input Voltage: 200–240 V

• Frequency: 47.5–63 Hz

• Frame Size: R2

• Degree of Protection: IP20

• Enclosure Type (NEMA): Open Type

• Mounting Type: Module

• Operating Altitude: 1000 m

• Operating Humidity: 5–95 % RH

• Output Power (Normal Duty): 2.2 kW

• Output Power (Heavy Duty): 1.5 kW

• Output Current (Normal Duty): 9.8 A

• Output Current (Heavy Duty): 7.8 A

• Power Factor: 0.98

• Efficiency Level: IE2

• Power Consumption: 92 W

• Standby Loss: 14 W

• Digital I/O: 2 Inputs / 1 Output

• Communication Protocols: CAN, EtherNet/IP, MODBUS, PROFIBUS, PROFINET IO, TCP/IP

• Included Module: BIO-01
