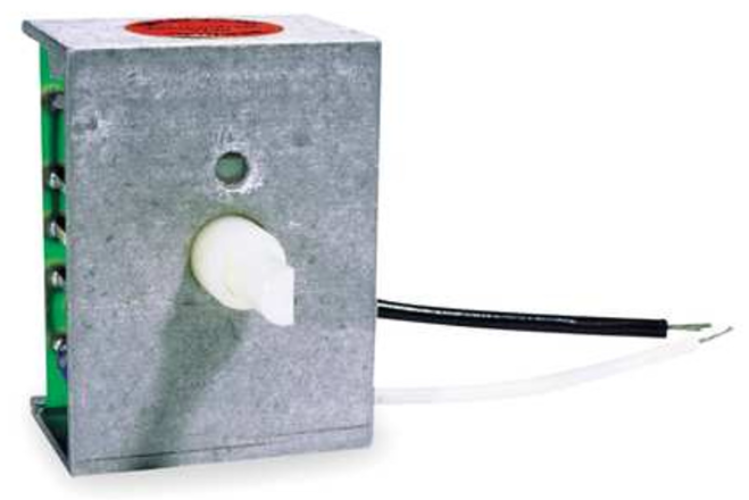

AC03-05S, AC03 Series Control With Speedpot On-Off Switch 120Vac 2.5Amp Chassis

AC03-05S, AC03 Series Control With Speedpot On-Off Switch 120Vac 2.5Amp Chassis

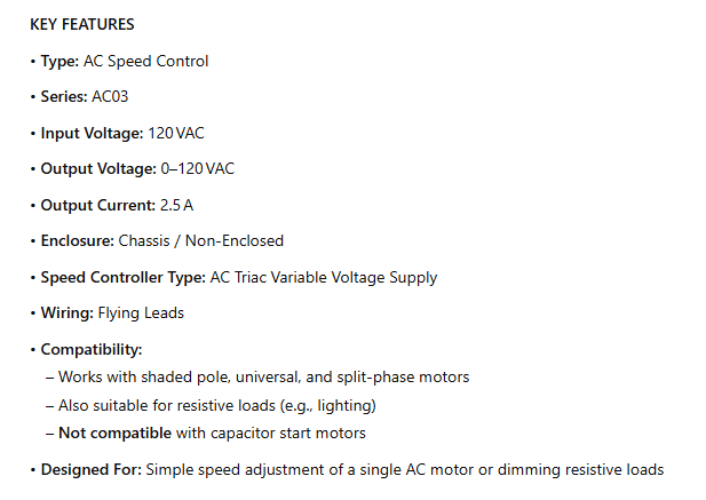

KEY FEATURES

• Type: AC Speed Control

• Series: AC03

• Input Voltage: 120 VAC

• Output Voltage: 0–120 VAC

• Output Current: 2.5 A

• Enclosure: Chassis / Non-Enclosed

• Speed Controller Type: AC Triac Variable Voltage Supply

• Wiring: Flying Leads

• Compatibility:
 – Works with shaded pole, universal, and split-phase motors
 – Also suitable for resistive loads (e.g., lighting)
 – Not compatible with capacitor start motors

• Designed For: Simple speed adjustment of a single AC motor or dimming resistive loads

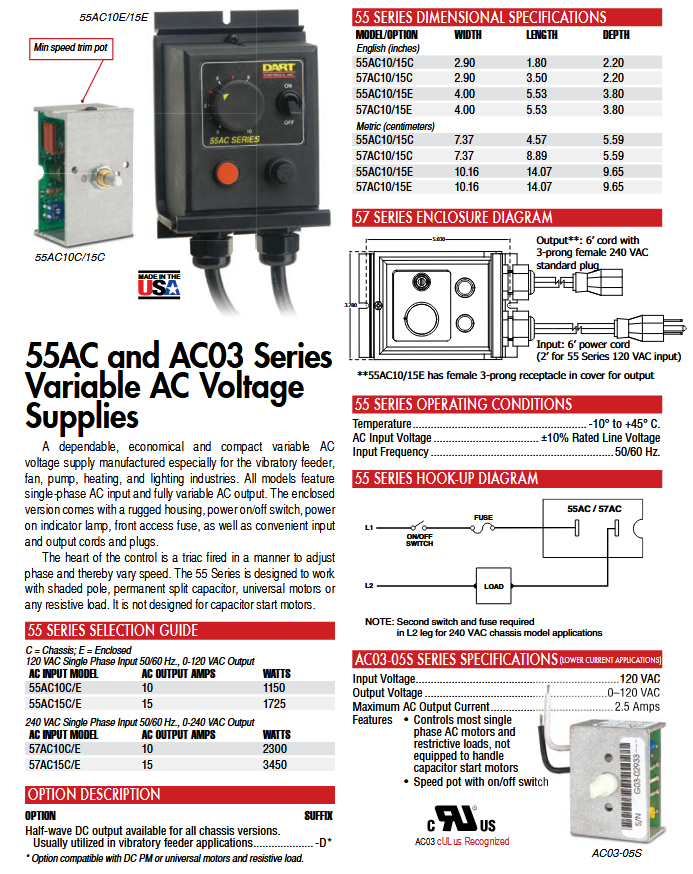

A dependable, economical and compact variable AC voltage supply manufactured especially for the vibratory feeder, fan, pump, heating, and lighting industries. All models feature single-phase AC input and fully variable AC output. The enclosed version comes with a rugged housing, power on/off switch, power on indicator lamp, front access fuse, as well as convenient input and output cords and plugs. The heart of the control is a triac fired in a manner to adjust phase and thereby vary speed. The 55 Series is designed to work with shaded pole, permanent split capacitor, universal motors or any resistive load. It is not designed for capacitor start motors.
