E-Motor Nations  |  SKU: EMN-019337

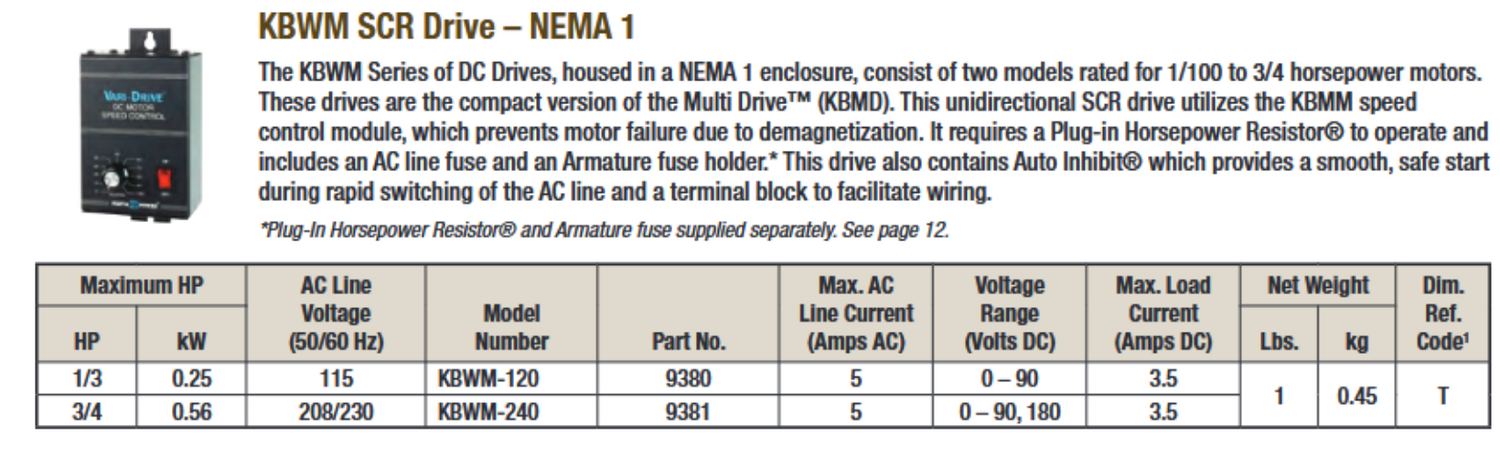

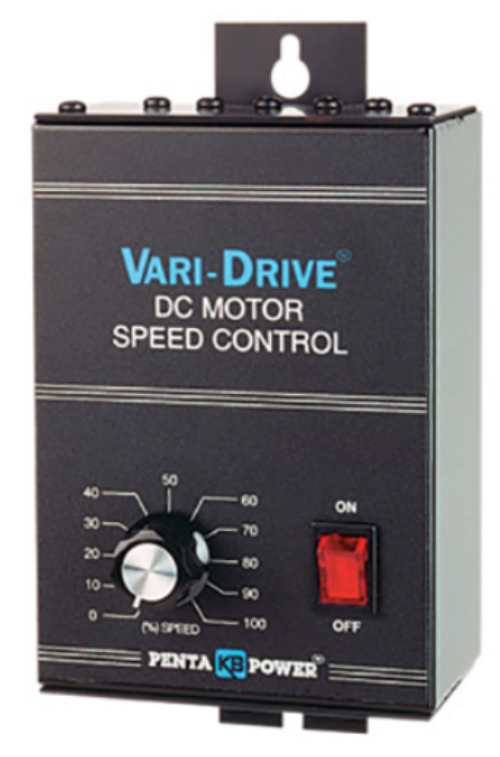

9380, (KBWM-120) SCR DC Drive 1/3Hp 3.5A 115VAC 1PH Input 90VDC Output Non-Reversing NEMA 1

$263.62
shipping

Estimate shipping

Description

9380, (KBWM-120) SCR DC Drive 1/3Hp 3.5A 115VAC 1PH Input 90VDC Output Non-Reversing NEMA 1

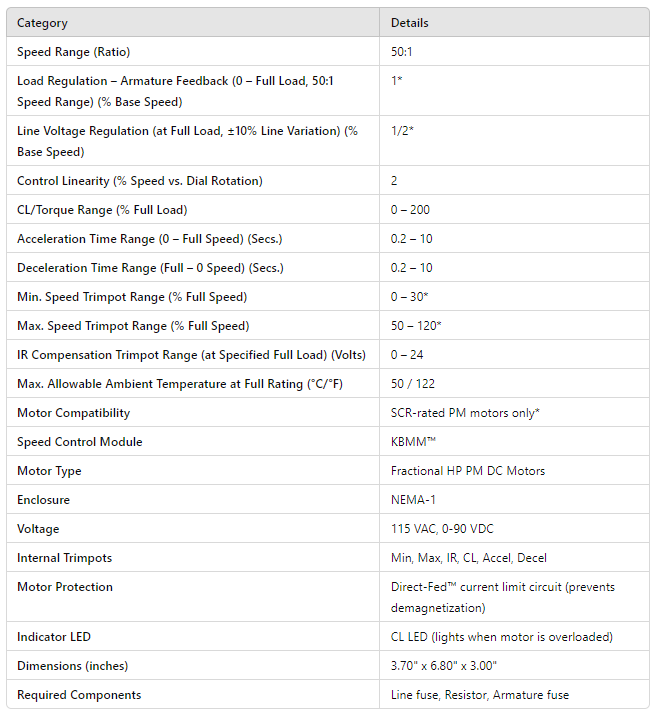

Category Details
Speed Range (Ratio) 50:1
Load Regulation – Armature Feedback (0 – Full Load, 50:1 Speed Range) (% Base Speed) 1*
Line Voltage Regulation (at Full Load, ±10% Line Variation) (% Base Speed) 1/2*
Control Linearity (% Speed vs. Dial Rotation) 2
CL/Torque Range (% Full Load) 0 – 200
Acceleration Time Range (0 – Full Speed) (Secs.) 0.2 – 10
Deceleration Time Range (Full – 0 Speed) (Secs.) 0.2 – 10
Min. Speed Trimpot Range (% Full Speed) 0 – 30*
Max. Speed Trimpot Range (% Full Speed) 50 – 120*
IR Compensation Trimpot Range (at Specified Full Load) (Volts) 0 – 24
Max. Allowable Ambient Temperature at Full Rating (°C/°F) 50 / 122
Motor Compatibility SCR-rated PM motors only*
Speed Control Module KBMM™
Motor Type Fractional HP PM DC Motors
Enclosure NEMA-1
Voltage 115 VAC, 0-90 VDC
Internal Trimpots Min, Max, IR, CL, Accel, Decel
Motor Protection Direct-Fed™ current limit circuit (prevents demagnetization)
Indicator LED CL LED (lights when motor is overloaded)
Dimensions (inches) 3.70" x 6.80" x 3.00"
Required Components Line fuse, Resistor, Armature fuse
