8905, Us Motors, 3/4HP, 1075 RPM, 3SPD, 208-230V, K055WPZ1413012B, Fr:48, HVAC - HVAC ELECTRIC MOTOR - US MOTORS - electric motors - [product_tags]- motor electric - moteur électrique - moteurs - drive - replacement - venmar - hvac - méchoui - capacitor - condensateur - fan

8905, Us Motors, 3/4HP, 1075 RPM, 3SPD, 208-230V, K055WPZ1413012B, Fr:48, HVAC

US MOTORS

  • $180.00


8905. EM-8905, Us Motors, Model K055WPZ1413012B

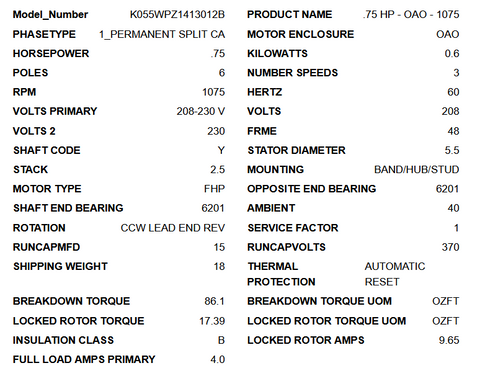

Model_Number: K055WPZ1413012B
PRODUCT NAME: .75 HP - OAO - 1075
PHASETYPE: 1_PERMANENT SPLIT CA
MOTOR ENCLOSURE: OAO
HORSEPOWER: .75
KILOWATTS: 0.6
POLES: 6
NUMBER SPEEDS: 3
RPM: 1075
HERTZ: 60
VOLTS PRIMARY: 208-230 V
VOLTS : 208
VOLTS 2: 230
FRME : 48
SHAFT CODE: Y
STATOR DIAMETER: 5.5
STACK: 2.5
MOUNTING: BAND/HUB/STUD
MOTOR TYPE: FHP
OPPOSITE END BEARING: SELF-ALIGN
SHAFT END BEARING: SELF-ALIGN
AMBIENT: 40
ROTATION: CCW LEAD END REV
SERVICE FACTOR: 1
RUNCAPMFD: 15
RUNCAPVOLTS: 370
SHIPPING WEIGHT: 18
THERMAL PROTECTION: AUTOMATIC RESET
BREAKDOWN TORQUE: 86.1
BREAKDOWN TORQUE UOM: OZFT
LOCKED ROTOR TORQUE: 17.39
LOCKED ROTOR TORQUE UOM: OZFT
INSULATION CLASS: B
LOCKED ROTOR AMPS: 9.65
FULL LOAD AMPS PRIMARY: 4.0
