E-Motor Nations  |  SKU: EMN-019356

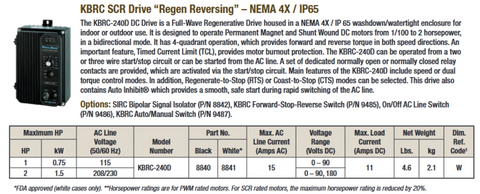

8841, (KBRC-240D) SCR DC Drive 1Hp-2Hp 115/230VAC Input 90/180VDC Output NEMA 4X Enclosure REGEN REVERSING - White

$764.65
shipping

Estimate shipping

Description

8841, (KBRC-240D) SCR DC Drive 1Hp-2Hp 115/230VAC Input 90/180VDC Output NEMA 4X Enclosure REGEN REVERSING - White

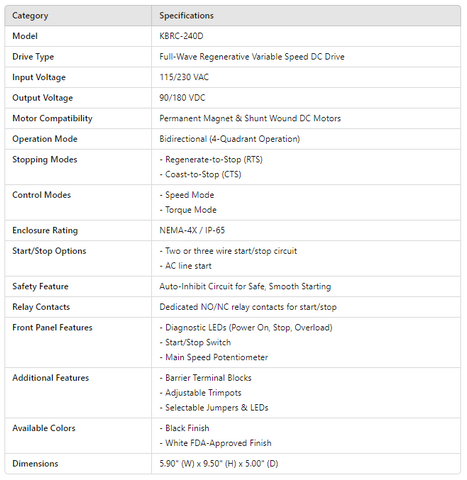

Category Specifications
Model KBRC-240D
Drive Type Full-Wave Regenerative Variable Speed DC Drive
Input Voltage 115/230 VAC
Output Voltage 90/180 VDC
Motor Compatibility Permanent Magnet & Shunt Wound DC Motors
Operation Mode Bidirectional (4-Quadrant Operation)
Stopping Modes - Regenerate-to-Stop (RTS)
- Coast-to-Stop (CTS)
Control Modes - Speed Mode
- Torque Mode
Enclosure Rating NEMA-4X / IP-65
Start/Stop Options - Two or three wire start/stop circuit
- AC line start
Safety Feature Auto-Inhibit Circuit for Safe, Smooth Starting
Relay Contacts Dedicated NO/NC relay contacts for start/stop
Front Panel Features - Diagnostic LEDs (Power On, Stop, Overload)
- Start/Stop Switch
- Main Speed Potentiometer
Additional Features - Barrier Terminal Blocks
- Adjustable Trimpots
- Selectable Jumpers & LEDs
Available Colors - Black Finish
- White FDA-Approved Finish
Dimensions 5.90" (W) x 9.50" (H) x 5.00" (D)
