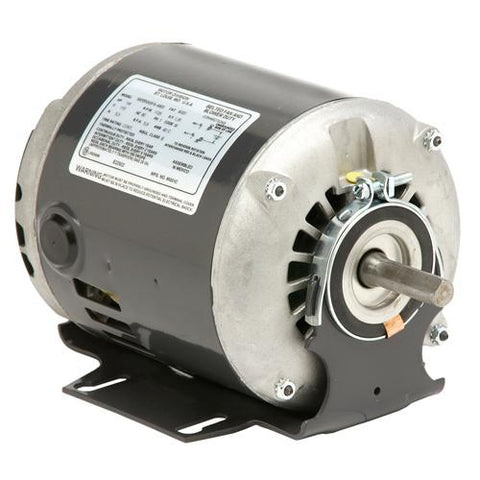

841CV,US MOTORS,SA55SFB4866024B,1/3 HP, 115V, 1800 RPM,ODP,B207,SS934B

US MOTORS

  • $163.99


841CV US MOTORS , MODEL SA55SFB4866024B, REPLACE MARATHON B207, 048S17D2108, GF2034 CENTURY,

Model_Number: SA55SFB4866024B
PRODUCT NAME: .33 HP - ODP - 1725
PHASETYPE: 1_SPLIT PHASE
MOTOR ENCLOSURE: ODP
HORSEPOWER: .33
KILOWATTS: 0.3
POLES: 4
NUMBER SPEEDS: 1
RPM: 1725
HERTZ: 60
VOLTS PRIMARY: 115
VOLTS : 115
FRME : 48
STATOR DIAMETER: 5.5
STACK: 1.5
MOUNTING: RESILIENT
MOTOR TYPE: FHP
OPPOSITE END BEARING: 6203
SHAFT END BEARING: 6203
AMBIENT: 40
ROTATION: CW LEAD END REV
SERVICE FACTOR: 1.35
SHIPPING WEIGHT: 18
THERMAL PROTECTION: AUTOMATIC RESET
BREAKDOWN TORQUE: 44.17
BREAKDOWN TORQUE UOM: OZFT
LOCKED ROTOR TORQUE: 19.19
LOCKED ROTOR TORQUE UOM: OZFT
INSULATION CLASS: B
KVA CODE LETTER: N
LOCKED ROTOR AMPS: 30.91
FULL LOAD AMPS PRIMARY: 6.4
SERVICE FACTOR AMPS PRIMARY: 7.0

http://apps.motorboss.com/dimensions/FHP/V01752431.pdf
