E-Motor Nations  |  SKU: EMN-017337

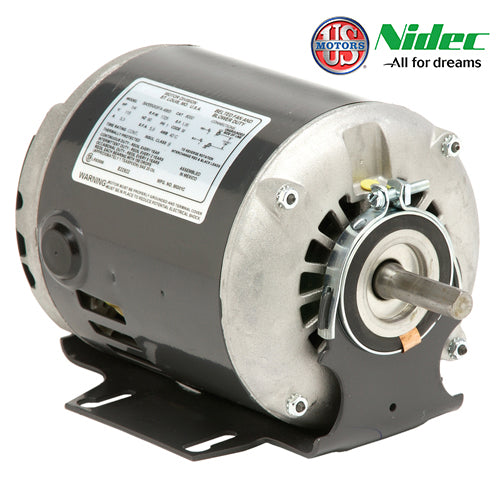

8200, Us Motors, 1/2Hp, 1725 Rpm, 115 Volts, Frame:48Y, Odp, Hvac,

$246.44
shipping

Estimate shipping

Description

8200, Us Motors, Replaced Marathon B208, GF2054, B306 Marathon, H926, 103796.00 Leeson, 101585.00, PD6006 Us Motors, Packard 45012,

Nameplate Specifications

Output HP: 0.50 Hp Output KW: 0.37 kW
Frequency: 60 Hz Voltage: 115 V
Current: 7.5 A Speed: 1725 rpm
Service Factor: 1.25 Phase: 1
Efficiency: 66 % Power Factor: 69.6
Duty: Continuous Insulation Class: B
Design Code: NO DESIGN CODE KVA Code: M
Frame: 48Z Enclosure: Drip Proof
Thermal Protection: Automatic Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 22
Number of Speeds: 1

Technical Specifications

Electrical Type: Split Phase Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Resistance Main: 0 Ohms Mounting: Resilient Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Single Special Extension Overall Length: 10.43 in
Shaft Diameter: 0.500 in Shaft Extension: 2.01 in
Assembly/Box Mounting: F1 ONLY
