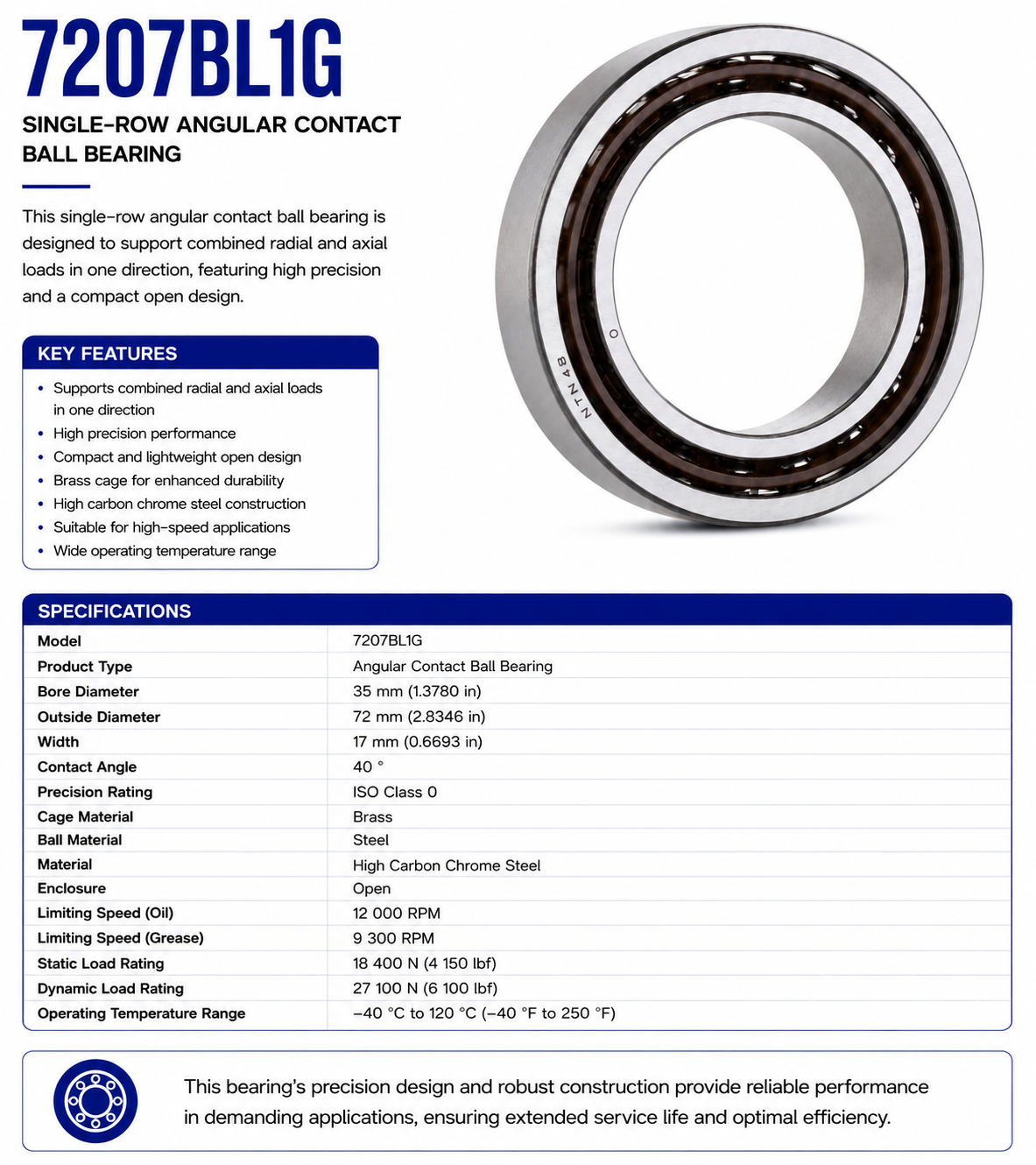

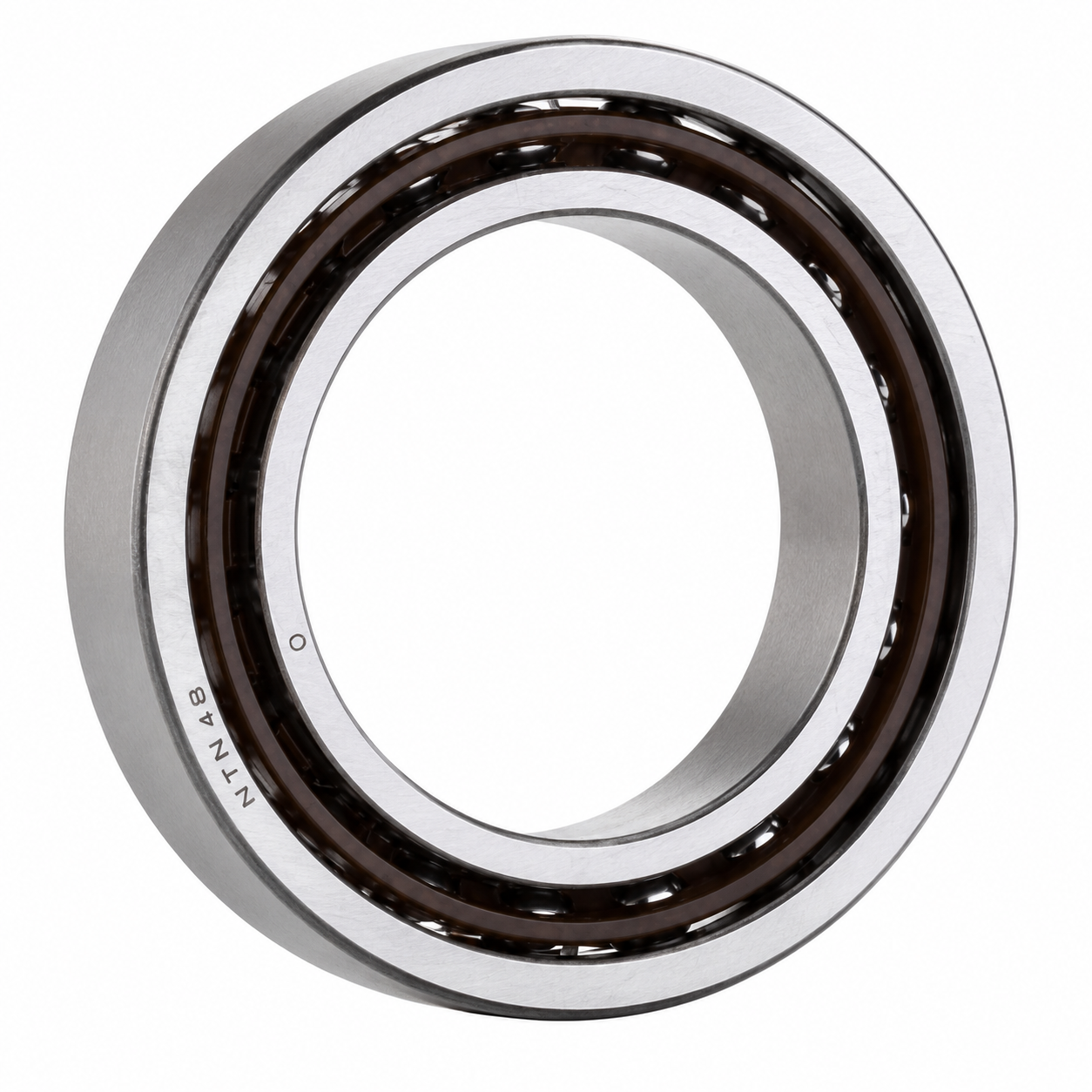

7207BL1G, Angular Contact Ball Bearing, 35 mm Bore, 72 mm OD, 17 mm Width

This single-row angular contact ball bearing is designed to support combined radial and axial loads in one direction, featuring high precision and a compact open design.

KEY FEATURES

• Model: 7207BL1G

• Product Type: Angular Contact Ball Bearing

• Bore Diameter: 35 mm (1.3780 in)

• Outside Diameter: 72 mm (2.8346 in)

• Width: 17 mm (0.6693 in)

• Contact Angle: 40 °

• Precision Rating: ISO Class 0

• Cage Material: Brass

• Ball Material: Steel

• Material: High Carbon Chrome Steel

• Enclosure: Open

• Limiting Speed (Oil): 12 000 RPM

• Limiting Speed (Grease): 9 300 RPM

• Static Load Rating: 18 400 N (4 150 lbf)

• Dynamic Load Rating: 27 100 N (6 100 lbf)

• Operating Temperature Range: –40 °C to 120 °C (–40 °F to 250 °F)
