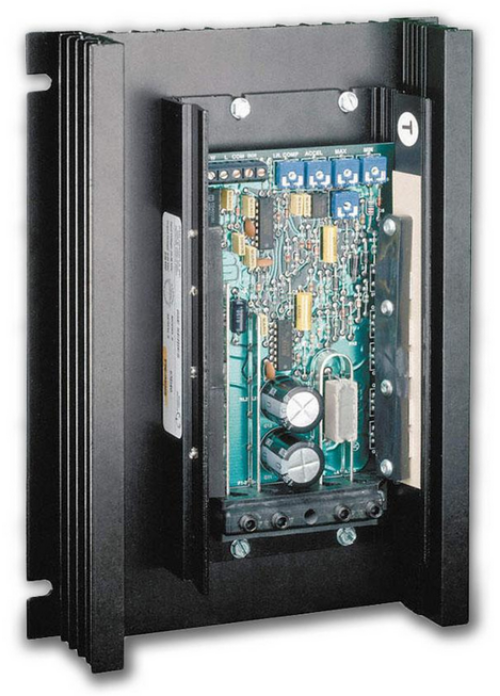

65E60, 65e Series Dc Control Dc 24-36VDC 60Amps Chassis

65E60, 65e Series Dc Control Dc 24-36VDC 60Amps Chassis

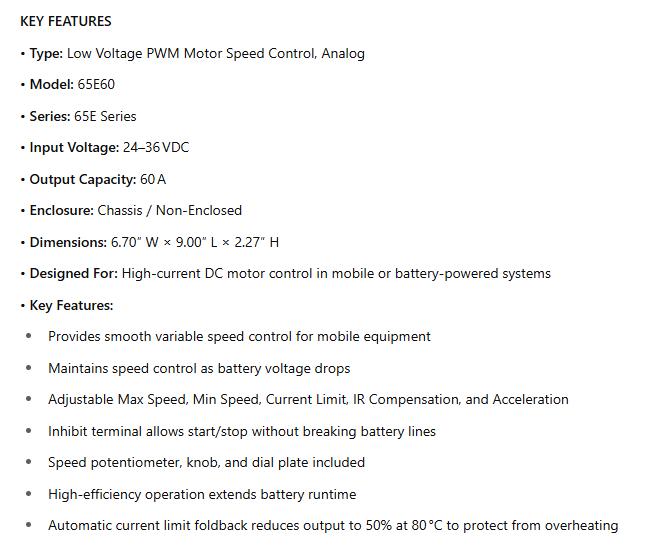

KEY FEATURES

• Type: Low Voltage PWM Motor Speed Control, Analog

• Model: 65E60

• Series: 65E Series

• Input Voltage: 24–36 VDC

• Output Capacity: 60 A

• Enclosure: Chassis / Non-Enclosed

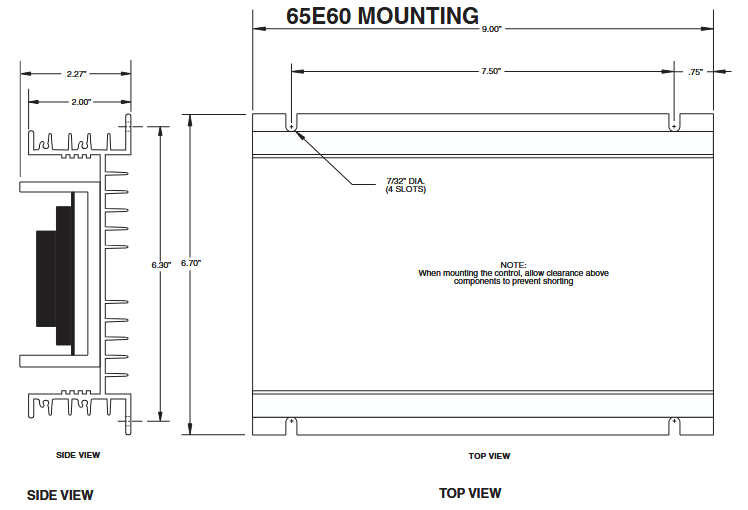

• Dimensions: 6.70″ W × 9.00″ L × 2.27″ H

• Designed For: High-current DC motor control in mobile or battery-powered systems

• Key Features:

• Provides smooth variable speed control for mobile equipment

• Maintains speed control as battery voltage drops

• Adjustable Max Speed, Min Speed, Current Limit, IR Compensation, and Acceleration

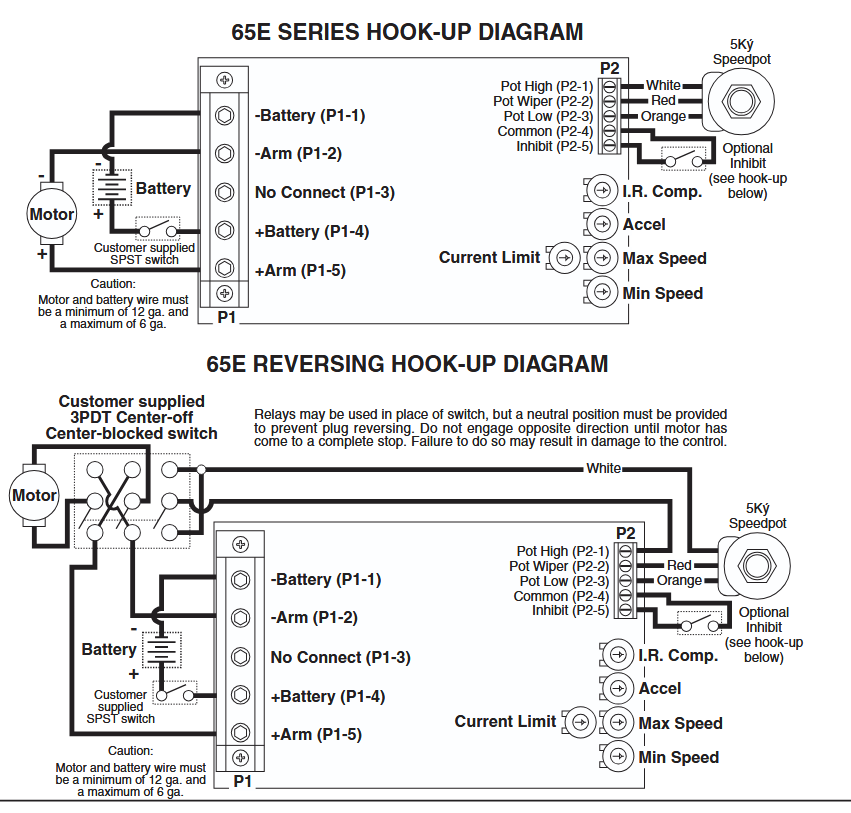

• Inhibit terminal allows start/stop without breaking battery lines

• Speed potentiometer, knob, and dial plate included

• High-efficiency operation extends battery runtime

• Automatic current limit foldback reduces output to 50% at 80 °C to protect from overheating

The 65 Series from Dart are high performance PWM drives for low voltage DC motors. Used many times in applications with battery voltage as the supply the PWM
drive saves energy, increasing time between charges plus extends the overall life of the battery. The 65 Series are also used with low voltage power supply (typically 12-24VDC) due to the size of the motor being used.

Available in four continuous current ratings, the 65 Series maximizes power density in a small footprint. In particular, the 65E10 and 65E20 models have been significantly upgraded to further improve their power efficiency and add features frequently needed in portable equipment and solar powered applications. In addition we
have introduced a new NEMA 4X enclosed drive rated up to 20A at 48VDC.
