65E20C, 65E SERIES DC Control 12-48VDC 20A Chassis

65E20C, 65E SERIES DC Control 12-48VDC 20A Chassis

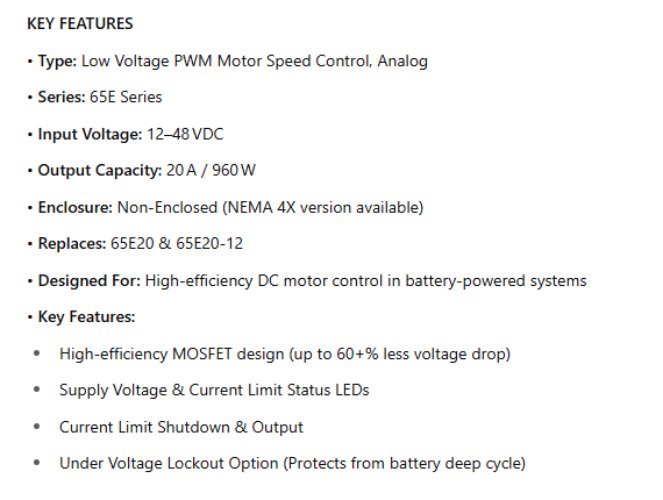

KEY FEATURES

• Type: Low Voltage PWM Motor Speed Control, Analog

• Series: 65E Series

• Input Voltage: 12–48 VDC

• Output Capacity: 20 A / 960 W

• Enclosure: Non-Enclosed (NEMA 4X version available)

• Replaces: 65E20 & 65E20-12

• Designed For: High-efficiency DC motor control in battery-powered systems

• Key Features:

• High-efficiency MOSFET design (up to 60+% less voltage drop)

• Supply Voltage & Current Limit Status LEDs

• Current Limit Shutdown & Output

• Under Voltage Lockout Option (Protects from battery deep cycle)

The 65 Series from Dart are high performance PWM drives for low voltage DC motors. Used many times in applications with battery voltage as the supply the PWM
drive saves energy, increasing time between charges plus extends the overall life of the battery. The 65 Series are also used with low voltage power supply (typically 12-24VDC) due to the size of the motor being used.

Available in four continuous current ratings, the 65 Series maximizes power density in a small footprint. In particular, the 65E10 and 65E20 models have been significantly upgraded to further improve their power efficiency and add features frequently needed in portable equipment and solar powered applications. In addition we
have introduced a new NEMA 4X enclosed drive rated up to 20A at 48VDC.
