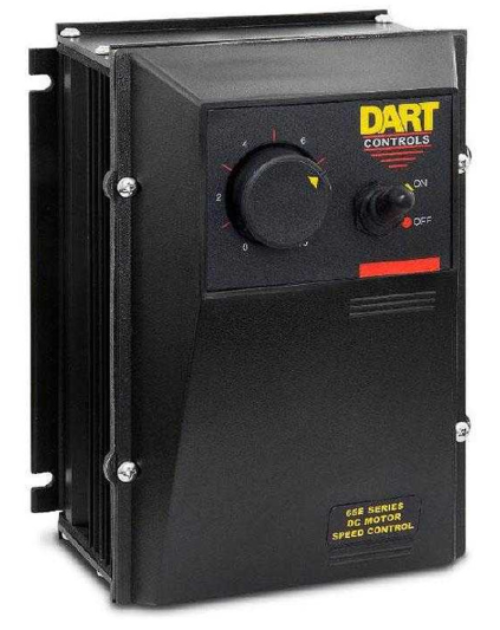

65E10E, 65E SERIES DC Control 12-48vdc 10amps Nema 4x Ip66 Enclosed

65E10E, 65E SERIES DC Control 12-48vdc 10amps Nema 4x Ip66 Enclosed

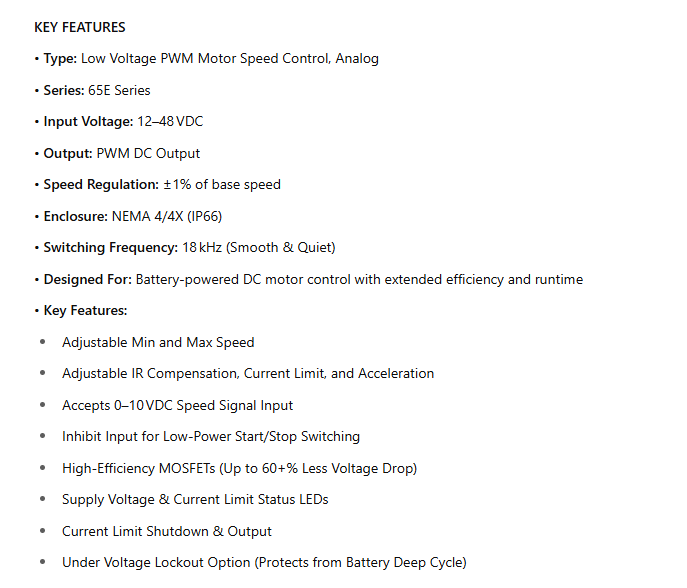

KEY FEATURES

• Type: Low Voltage PWM Motor Speed Control, Analog

• Series: 65E Series

• Input Voltage: 12–48 VDC

• Output: PWM DC Output

• Speed Regulation: ±1% of base speed

• Enclosure: NEMA 4/4X (IP66)

• Switching Frequency: 18 kHz (Smooth & Quiet)

• Designed For: Battery-powered DC motor control with extended efficiency and runtime

• Key Features:

• Adjustable Min and Max Speed

• Adjustable IR Compensation, Current Limit, and Acceleration

• Accepts 0–10 VDC Speed Signal Input

• Inhibit Input for Low-Power Start/Stop Switching

• High-Efficiency MOSFETs (Up to 60+% Less Voltage Drop)

• Supply Voltage & Current Limit Status LEDs

• Current Limit Shutdown & Output

• Under Voltage Lockout Option (Protects from Battery Deep Cycle)

The 65 Series from Dart are high performance PWM drives for low voltage DC motors. Used many times in applications with battery voltage as the supply the PWM
drive saves energy, increasing time between charges plus extends the overall life of the battery. The 65 Series are also used with low voltage power supply (typically 12-24VDC) due to the size of the motor being used.

Available in four continuous current ratings, the 65 Series maximizes power density in a small footprint. In particular, the 65E10 and 65E20 models have been significantly upgraded to further improve their power efficiency and add features frequently needed in portable equipment and solar powered applications. In addition we
have introduced a new NEMA 4X enclosed drive rated up to 20A at 48VDC.
