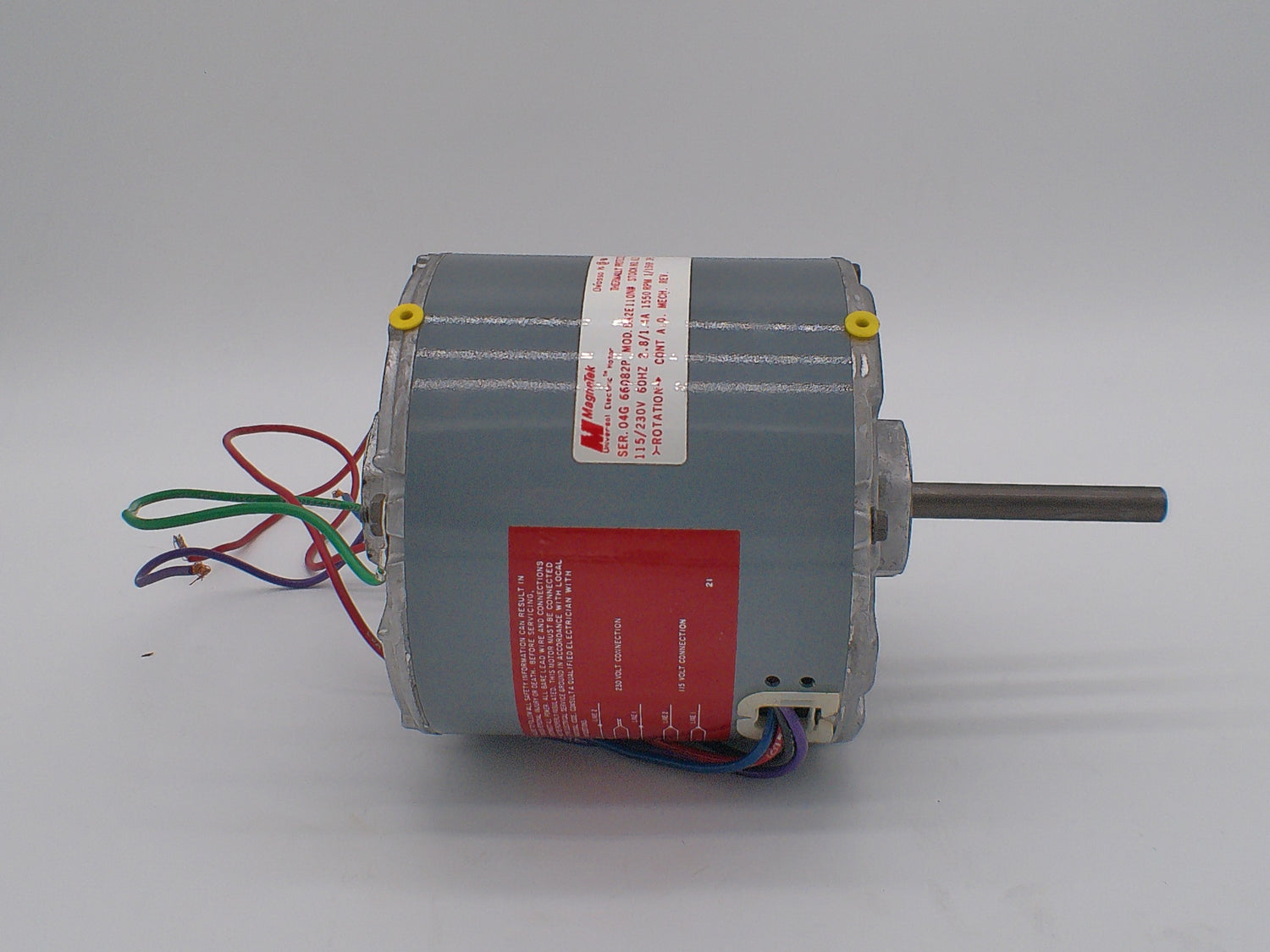

DA2E110, Magnetek, 1/15Hp, 1550 Rpm, 115-230V, frame: 42Y, OAO,

DA2E110, Magnetek, SER. 04G 66082P

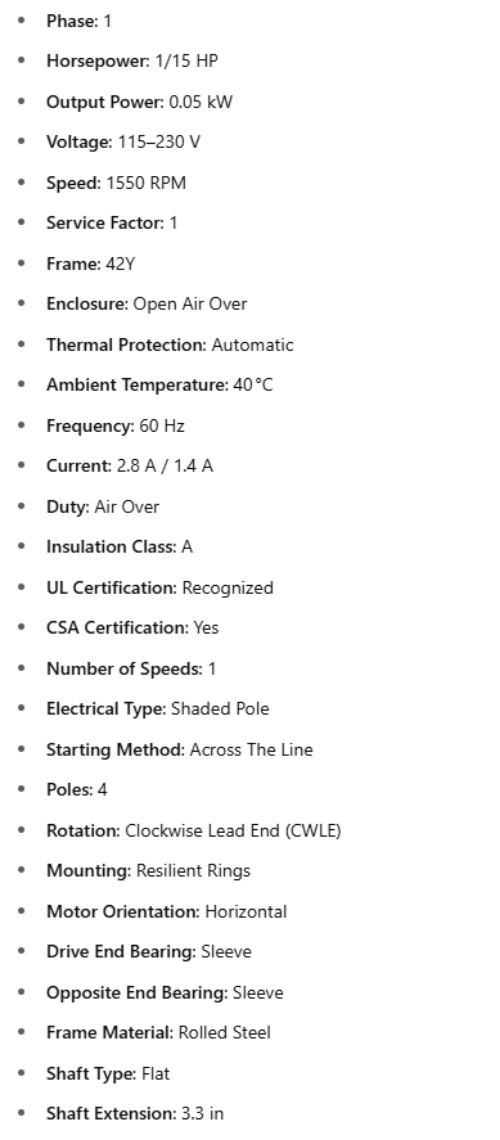

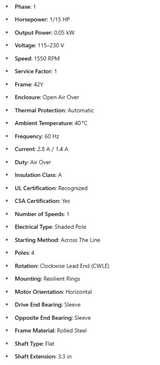

• Phase: 1

• Horsepower: 1/15 HP

• Output Power: 0.05 kW

• Voltage: 115–230 V

• Speed: 1550 RPM

• Service Factor: 1

• Frame: 42Y

• Enclosure: Open Air Over

• Thermal Protection: Automatic

• Ambient Temperature: 40 °C

• Frequency: 60 Hz

• Current: 2.8 A / 1.4 A

• Duty: Air Over

• Insulation Class: A

• UL Certification: Recognized

• CSA Certification: Yes

• Number of Speeds: 1

• Electrical Type: Shaded Pole

• Starting Method: Across The Line

• Poles: 4

• Rotation: Clockwise Lead End (CWLE)

• Mounting: Resilient Rings

• Motor Orientation: Horizontal

• Drive End Bearing: Sleeve

• Opposite End Bearing: Sleeve

• Frame Material: Rolled Steel

• Shaft Type: Flat

• Shaft Extension: 3.3 in
