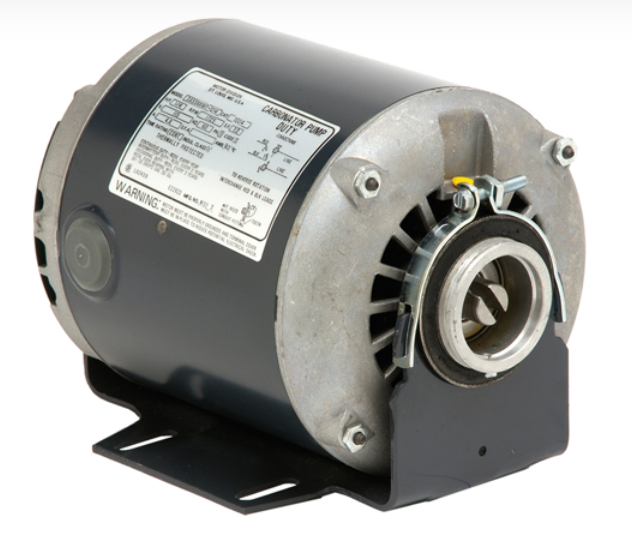

6079, 1/3Hp 1725RPM 110-120/200-240/1/60-50 ODP 48 Carbonator Pump Motor REISLIENT BASE 1.0SF

6079, 1/3Hp 1800RPM 110-120/200-240/1/60-50 ODP 48 Carbonator Pump Motor REISLIENT BASE 1.0SF

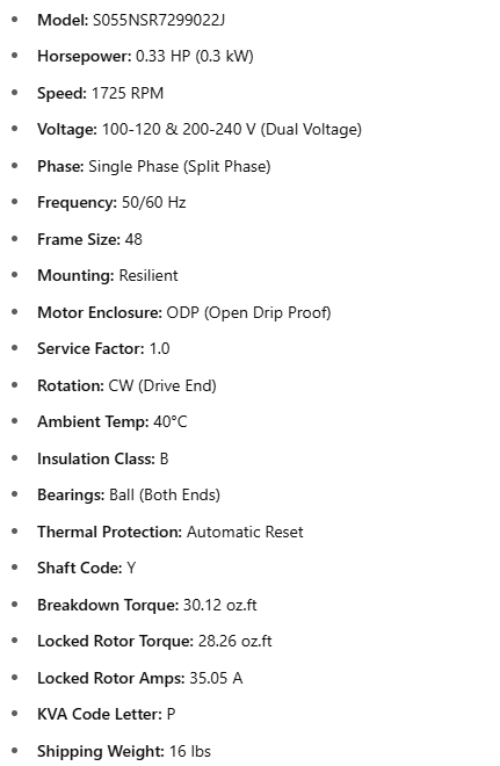

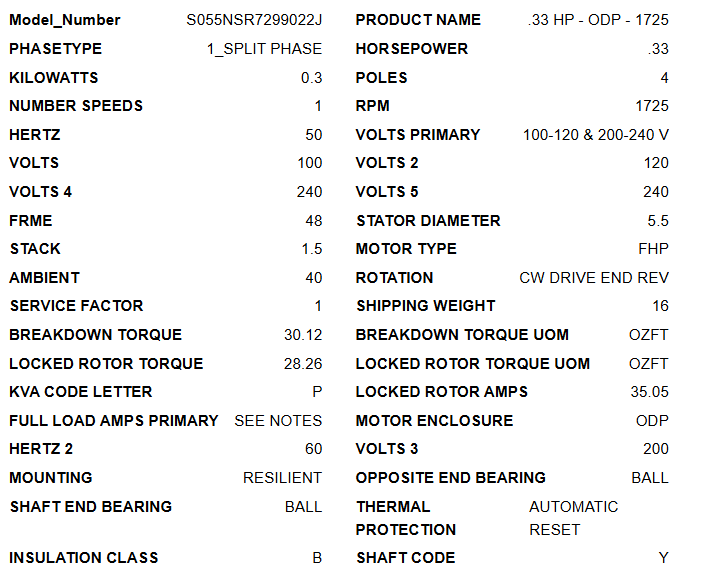

• Model: S055NSR7299022J

• Horsepower: 0.33 HP (0.3 kW)

• Speed: 1725 RPM

• Voltage: 100-120 & 200-240 V (Dual Voltage)

• Phase: Single Phase (Split Phase)

• Frequency: 50/60 Hz

• Frame Size: 48

• Mounting: Resilient

• Motor Enclosure: ODP (Open Drip Proof)

• Service Factor: 1.0

• Rotation: CW (Drive End)

• Ambient Temp: 40°C

• Insulation Class: B

• Bearings: Ball (Both Ends)

• Thermal Protection: Automatic Reset

• Shaft Code: Y

• Breakdown Torque: 30.12 oz.ft

• Locked Rotor Torque: 28.26 oz.ft

• Locked Rotor Amps: 35.05 A

• KVA Code Letter: P

• Shipping Weight: 16 lbs
