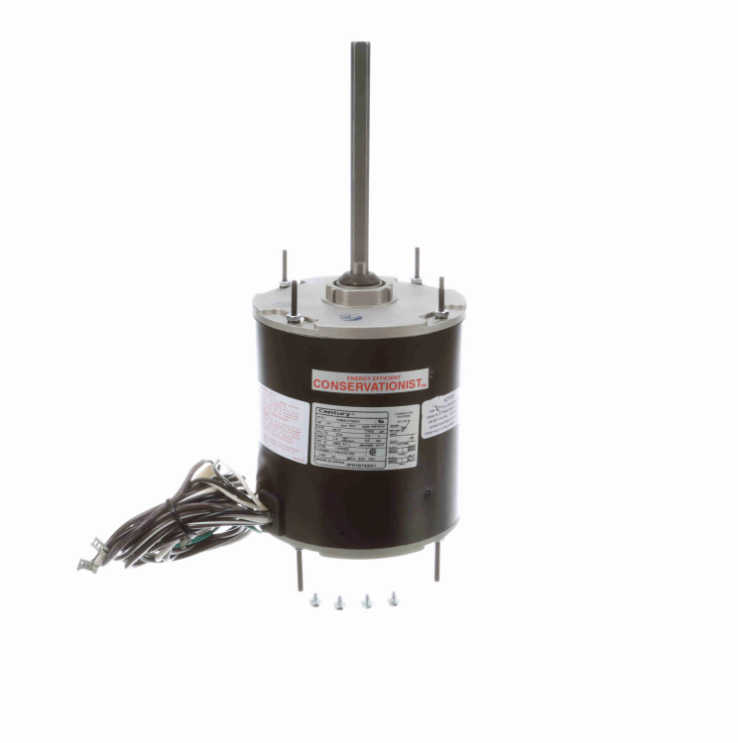

X5FE1076S, Xactone, 3/4Hp, 1075 Rpm, 575 Volts, Frame: 48, Century,

X5FE1076S, Xactone, replaces CENTURY, 5FE1076SV1, S1-02442071000,

** Keeprite 1087071, 7126-5310, ME070092, For KEEPRITE USE BUSHING 1/2 TO 5/8''  # 1487***

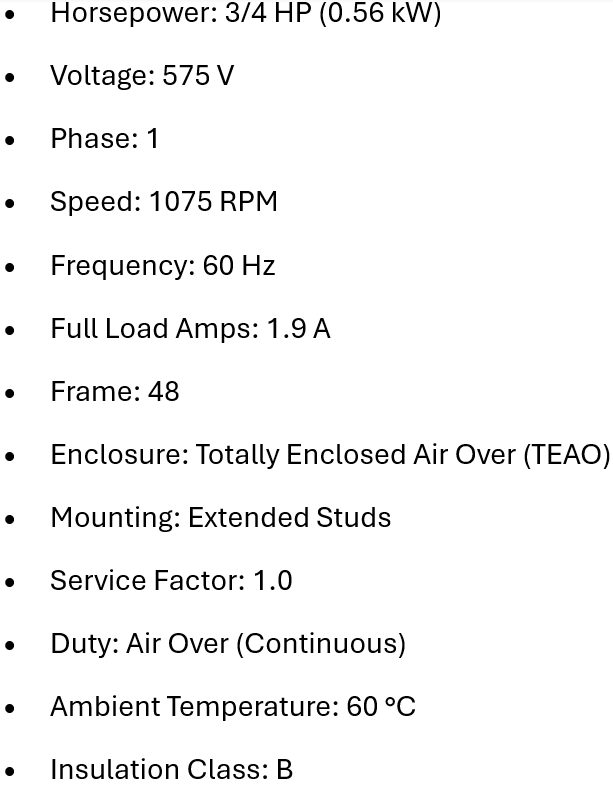

• Horsepower: 3/4 HP (0.56 kW)

• Voltage: 575 V

• Phase: 1

• Speed: 1075 RPM

• Frequency: 60 Hz

• Full Load Amps: 1.9 A

• Frame: 48

• Enclosure: Totally Enclosed Air Over (TEAO)

• Mounting: Extended Studs

• Service Factor: 1.0

• Duty: Air Over (Continuous)

• Ambient Temperature: 60 °C

• Insulation Class: B

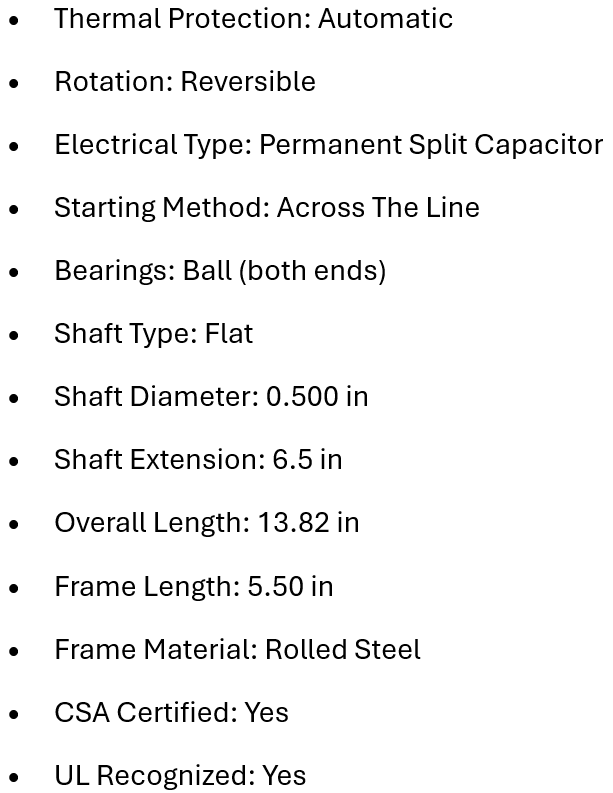

• Thermal Protection: Automatic

• Rotation: Reversible

• Electrical Type: Permanent Split Capacitor

• Starting Method: Across The Line

• Bearings: Ball (both ends)

• Shaft Type: Flat

• Shaft Diameter: 0.500 in

• Shaft Extension: 6.5 in

• Overall Length: 13.82 in

• Frame Length: 5.50 in

• Frame Material: Rolled Steel

• CSA Certified: Yes

• UL Recognized: Yes


  A.O. Smith 9426, F48AJ72A01, F48H87A01, F48SN6L42B1, Carrier HC44GE575, HC44GE576, HC44VL853, Century 168792, 5FE1056S, 5FE1056SV1, 5FE1076S, 5FE1076SV1, Emerson 1098H, K55HXJZA2361, K55ZZCME1567, K55ZZCMU1638, K55ZZCZP5712, K55ZZCZP6712, K55ZZELZ7411, K55ZZERS7488, K55ZZLHB3717, K55ZZLPA3835, K55ZZPYJ1757, K55ZZPYN-1761, K55ZZWNZ1358, K55ZZWPC1363, KA55ZZGNM1892, KA55ZZGNN1897, Fasco D2752, General Electric 5KCP39GGL415, 5KCP39MGM579, 5KCP39MGM854, 5KCP39MGU147, 5KCP39NGF294, 5KCP39PG250, 5KCP39PGF557, 5KCP39PGF577, 5KCP39PGH752, 5KCP39PGL666, 5KCP39PGT377, 5KCP39SGF967, 5KCP39SGL416, Lennox 28G8901, 37C8001, 79J8301, Magnatek HF3U043K, Marathon 48A11T1034, 48A11T1043, 48A11T497, X400-575, X453, Mars 03760, Rheem 51-42534-03, SA70228, Rotom R42606, Trane 21C724128P01, C727586P02, X70670705-030, X70670711-010, Universal Electric HF3K034, HF3L082, HF3T038, Wagner WG840760, York S1-02442071000, 178098, 70021, SS3761.
