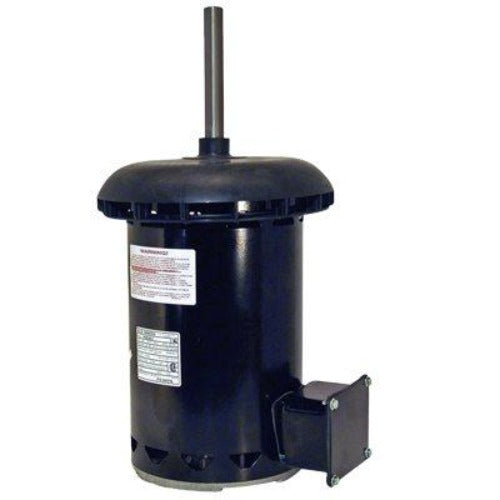

5FC1106, CENTURY, 1 HP, 1075 RPM, 575V, 1PH, FR:48Y, ODP, CENTURY, REVERSIBLE

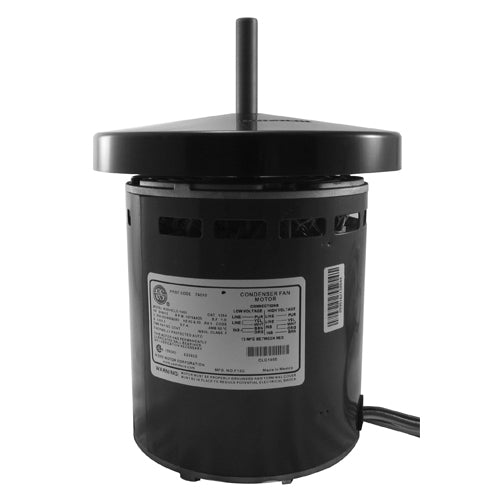

5FC1106, Obselete replaced by Us motor 1173,

• Horsepower :1
• Voltage :575
• Amps :2.20
• RPM :1075
• Frequency :60 Hz
• Length :10-7/16"
• "C" Dim. :15-7/16"
• Enclosure :Open
• Shaft Dim. :5/8" x 4-1/16"
• Type :Permanent Split Capacitor
• Speeds :1
• Diameter :5-5/8"
• Frame :48Y
• Bearings :Ball
• Rotation :Reversible
• Protector :Automatic
• Service Factor :1.00
• Phase :1
• Ambient Temp. :60°C
• Capacitor Rating :25MFD-370V included
• Feature(s) :Class 'B' Insulation, Shaft with Flat & Keyway, Class 'B' Insulation, Rainshield Guard, C-Box
• Weight (lbs.) :31
