57AC15E, 57 Series Ac Triac Voltage Controls 240vac 15a Nema 1

57AC10E, 57 Series Ac Triac Voltage Controls 240vac 10a Nema 1

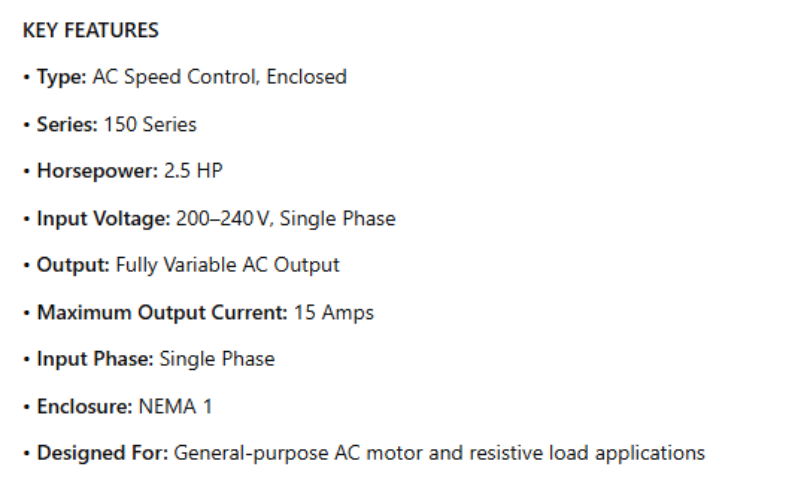

KEY FEATURES

• Type: AC Speed Control, Enclosed

• Series: 150 Series

• Horsepower: 2.5 HP

• Input Voltage: 200–240 V, Single Phase

• Output: Fully Variable AC Output

• Maximum Output Current: 15 Amps

• Input Phase: Single Phase

• Enclosure: NEMA 1

• Designed For: General-purpose AC motor and resistive load applications

A dependable, economical and compact variable AC voltage supply manufactured especially for the vibratory feeder, fan, pump, heating, and lighting industries. All models feature single-phase AC input and fully variable AC output. The enclosed version comes with a rugged housing, power on/off switch, power on indicator lamp, front access fuse, as well as convenient input and output cords and plugs. The heart of the control is a triac fired in a manner to adjust phase and thereby vary speed. The 55 Series is designed to work with shaded pole, permanent split capacitor, universal motors or any resistive load. It is not designed for capacitor start motors.
