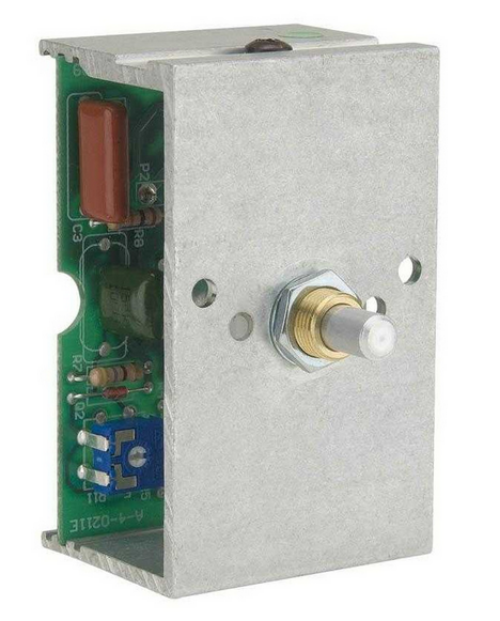

57AC10C, 57 Series Ac Triac Voltage Controls 240vac 10a Chassis

57AC10C, 57 Series Ac Triac Voltage Controls 240vac 10a Chassis

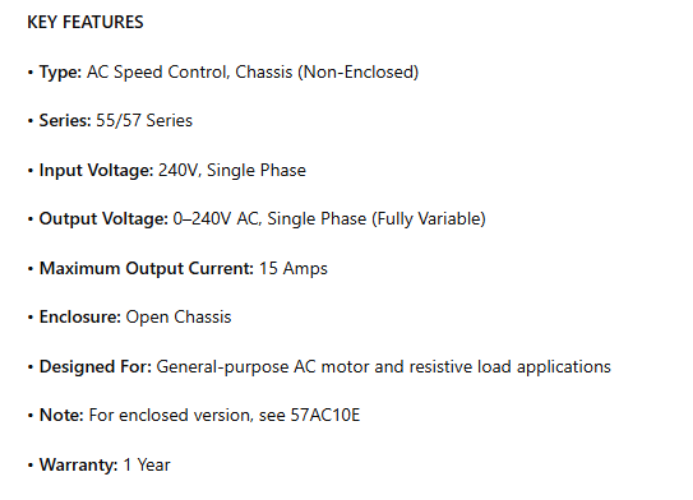

KEY FEATURES

• Type: AC Speed Control, Chassis (Non-Enclosed)

• Series: 55/57 Series

• Input Voltage: 240V, Single Phase

• Output Voltage: 0–240V AC, Single Phase (Fully Variable)

• Maximum Output Current: 15 Amps

• Enclosure: Open Chassis

• Designed For: General-purpose AC motor and resistive load applications

• Note: For enclosed version, see 57AC10E

• Warranty: 1 Year

A dependable, economical and compact variable AC voltage supply manufactured especially for the vibratory feeder, fan, pump, heating, and lighting industries. All models feature single-phase AC input and fully variable AC output. The enclosed version comes with a rugged housing, power on/off switch, power on indicator lamp, front access fuse, as well as convenient input and output cords and plugs. The heart of the control is a triac fired in a manner to adjust phase and thereby vary speed. The 55 Series is designed to work with shaded pole, permanent split capacitor, universal motors or any resistive load. It is not designed for capacitor start motors.
