55AC15E, 55 Series Ac Triac Voltage Controls 120VAC 15A Nema 1

55AC15E, 55 Series Ac Triac Voltage Controls 120VAC 15A Nema 1

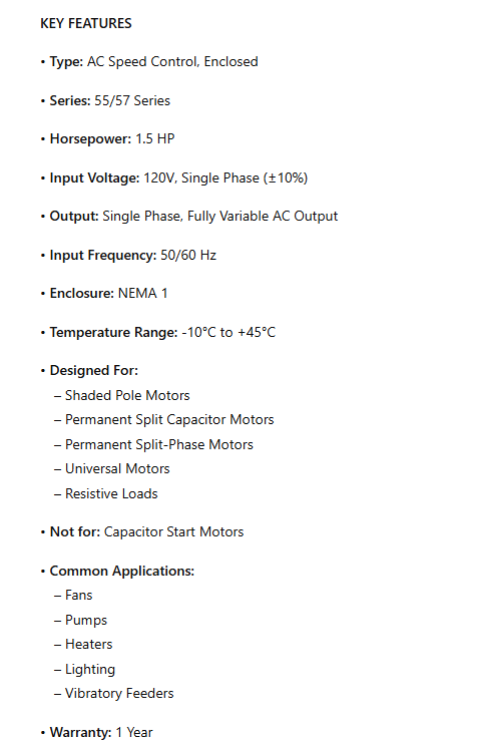

KEY FEATURES

• Type: AC Speed Control, Enclosed

• Series: 55/57 Series

• Horsepower: 1.5 HP

• Input Voltage: 120V, Single Phase (±10%)

• Output: Single Phase, Fully Variable AC Output

• Input Frequency: 50/60 Hz

• Enclosure: NEMA 1

• Temperature Range: -10°C to +45°C

• Designed For:
 – Shaded Pole Motors
 – Permanent Split Capacitor Motors
 – Permanent Split-Phase Motors
 – Universal Motors
 – Resistive Loads

• Not for: Capacitor Start Motors

• Common Applications:
 – Fans
 – Pumps
 – Heaters
 – Lighting
 – Vibratory Feeders

• Warranty: 1 Year

(Will Not Work with Capacitor Start Motors)

A dependable, economical and compact variable AC voltage supply manufactured especially for the vibratory feeder, fan, pump, heating, and lighting industries. All models feature single-phase AC input and fully variable AC output. The enclosed version comes with a rugged housing, power on/off switch, power on indicator lamp, front access fuse, as well as convenient input and output cords and plugs. The heart of the control is a triac fired in a manner to adjust phase and thereby vary speed. The 55 Series is designed to work with shaded pole, permanent split capacitor, universal motors or any resistive load. It is not designed for capacitor start motors.
