530BRE-36M, Drive Dc 1/8-1Hp 115vac Nema 4 Forward-Reverse W/Dynamic Brake And Zero Speed Detect

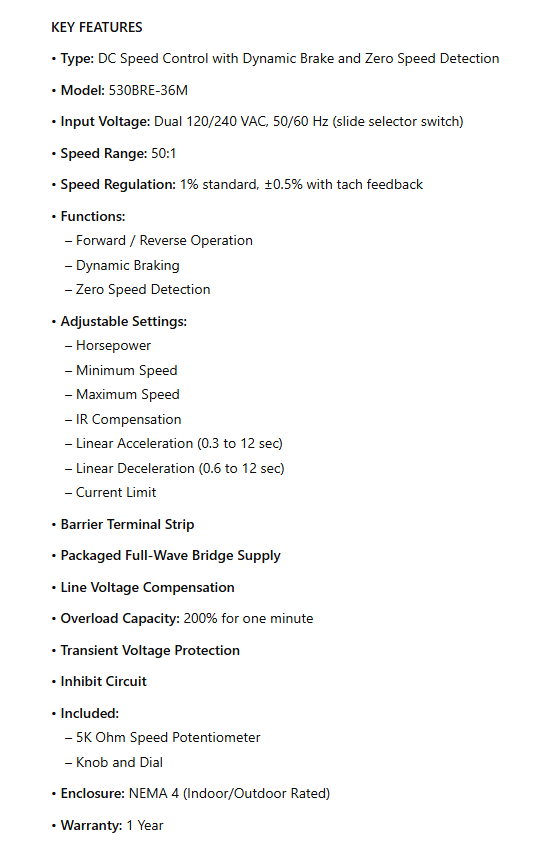

KEY FEATURES

• Type: DC Speed Control with Dynamic Brake and Zero Speed Detection

• Model: 530BRE-36M

• Input Voltage: Dual 120/240 VAC, 50/60 Hz (slide selector switch)

• Speed Range: 50:1

• Speed Regulation: 1% standard, ±0.5% with tach feedback

• Functions:
 – Forward / Reverse Operation
 – Dynamic Braking
 – Zero Speed Detection

• Adjustable Settings:
 – Horsepower
 – Minimum Speed
 – Maximum Speed
 – IR Compensation
 – Linear Acceleration (0.3 to 12 sec)
 – Linear Deceleration (0.6 to 12 sec)
 – Current Limit

• Barrier Terminal Strip

• Packaged Full-Wave Bridge Supply

• Line Voltage Compensation

• Overload Capacity: 200% for one minute

• Transient Voltage Protection

• Inhibit Circuit

• Included:
 – 5K Ohm Speed Potentiometer
 – Knob and Dial

• Enclosure: NEMA 4 (Indoor/Outdoor Rated)

• Warranty: 1 Year

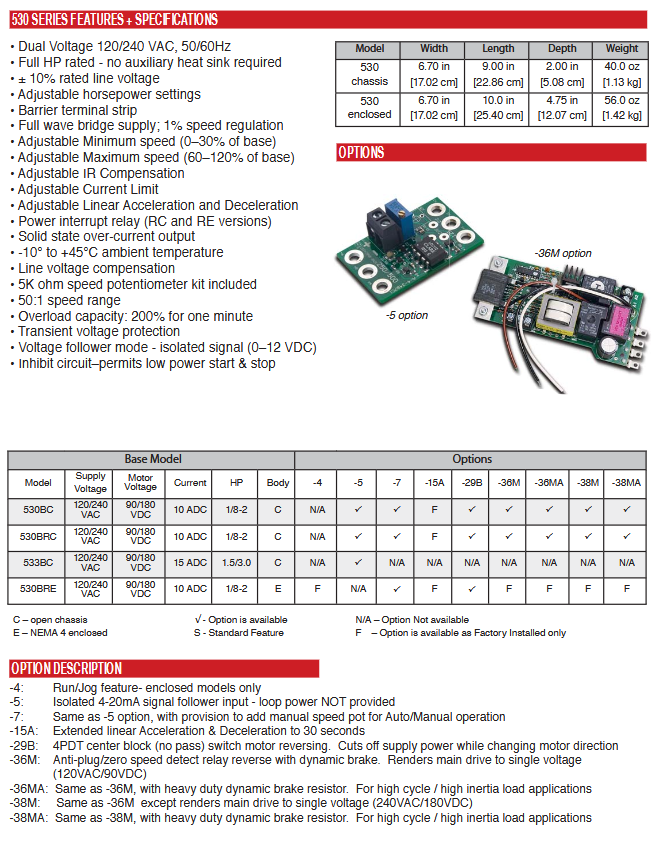

The 530 Series is Dart’s top of the line, feature packed drive. Rated up to 3HP, this drive offers all the features typically needed in an SCR drive application. The 530 Series control combines advanced engineering design, premium component selection and rigorous quality control to deliver an excellent off-the-shelf SCR drive. Dependable, time-proven circuitry offers performance characteristics previously available only in more costly drives.

While providing a wide range of standard features, many options quickly and easily extend the 530 Series’ capabilities to meet specific application requirements. An integral part of a distinguished line of quality products, the 530 Series is representative of Dart’s
continuing effort to provide reliable, versatile drives to the OEM, distributor, and industrial markets.
