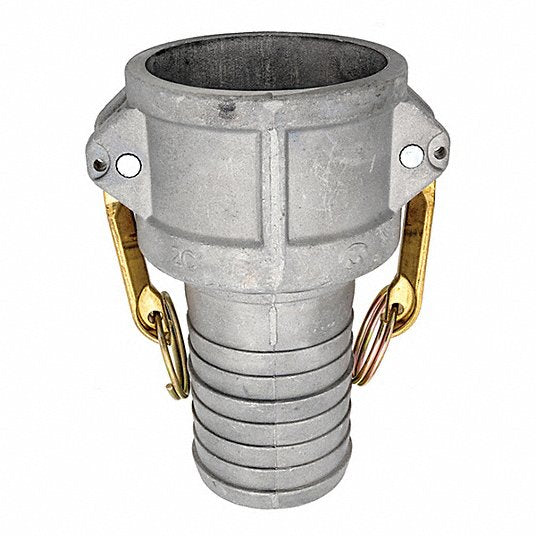

514104, Camlock Type C (female coupler × hose shank), 2" Dia.

514104, Camlock Type C (female coupler × hose shank), 2" Dia.

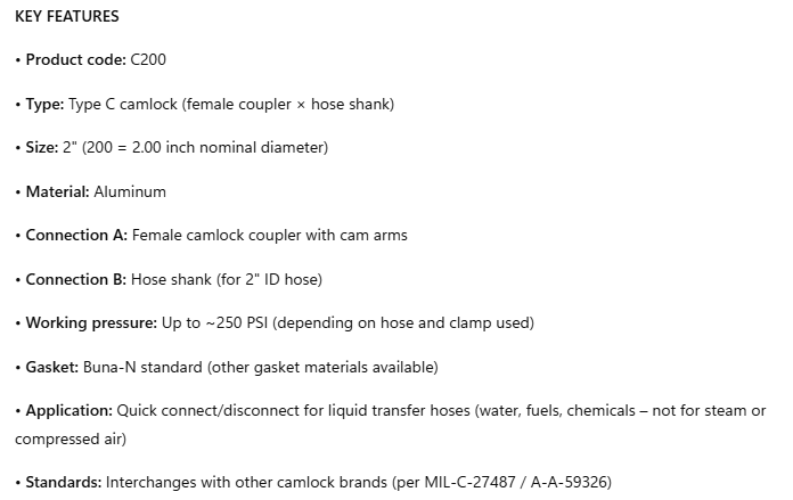

KEY FEATURES

• Product code: C200

• Type: Type C camlock (female coupler × hose shank)

• Size: 2" (200 = 2.00 inch nominal diameter)

• Material: Aluminum

• Connection A: Female camlock coupler with cam arms

• Connection B: Hose shank (for 2" ID hose)

• Working pressure: Up to ~250 PSI (depending on hose and clamp used)

• Gasket: Buna-N standard (other gasket materials available)

• Application: Quick connect/disconnect for liquid transfer hoses (water, fuels, chemicals – not for steam or compressed air)

• Standards: Interchanges with other camlock brands (per MIL-C-27487 / A-A-59326)
