42418‑CW‑HD, Fan Blades, 4‑Blade, 24‑in Diameter, 18° Pitch, CW
42418‑CW‑HD, Fan Blades, 4‑Blade, 24‑in Diameter, 18° Pitch, CW is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Estimate shipping
Please correct the following errors:
42418‑CW‑HD, Fan Blades, 4‑Blade, 24‑in Diameter, 18° Pitch, CW
Description
Description

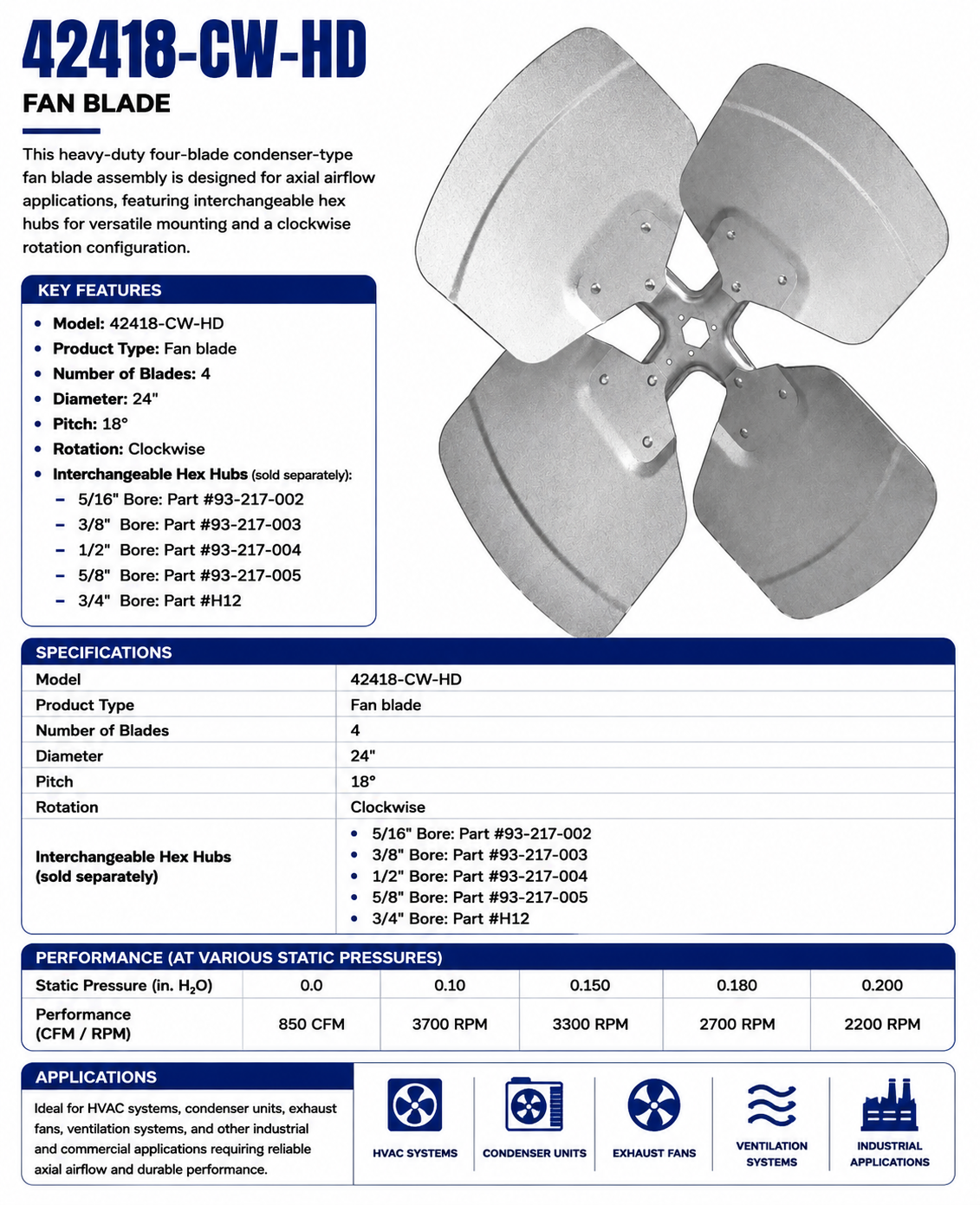

This heavy‑duty four‑blade condenser‑type fan blade assembly is designed for axial airflow applications, featuring interchangeable hex hubs for versatile mounting and a clockwise rotation configuration.
KEY FEATURES
• Model: 42418‑CW‑HD
• Product Type: Fan blade
• Number of Blades: 4
• Diameter: 24"
• Pitch: 18°
• Rotation: Clockwise
• Interchangeable Hex Hubs (sold separately):
– 5/16" Bore: Part #93-217-002
• Performance (at various static pressures): at 0.0 in: 850 (cfm), at 0.10 in: 3700 rpm, at 0.150 in: 3300 rpm, at 0.180 in: 2700 rpm, at 0.200 in: 2200 rpm
CROSS REFERENCE
• 2771702
