37T472W028, Baldor 5/2.5Hp, 1725/850RPM, 460V, 3PH ,60HZ, 215TC, 3735M

37T472W028, Baldor 5/2.5Hp, 1725/850RPM, 460V, 3PH ,60HZ, 215TC, 3735M

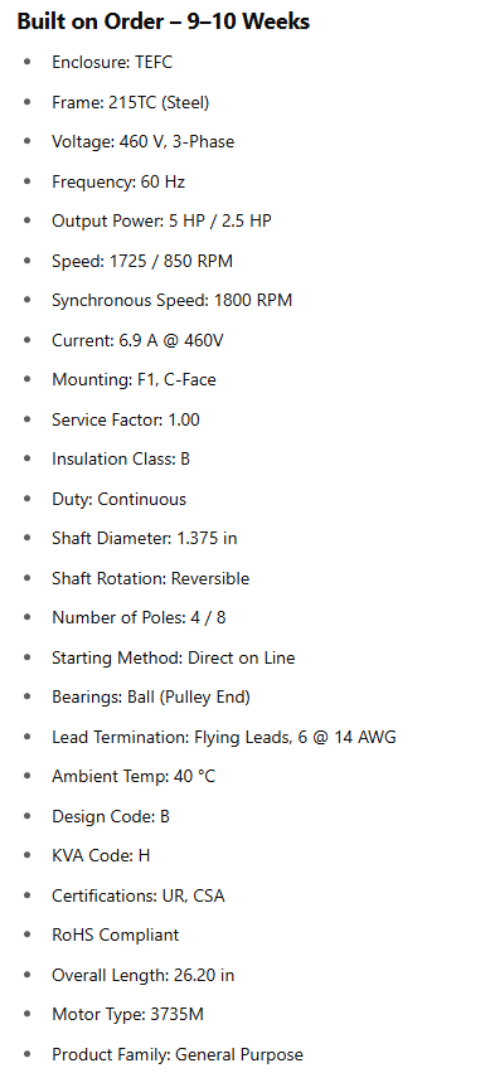

Built on Order – 9–10 Weeks

• Enclosure: TEFC

• Frame: 215TC (Steel)

• Voltage: 460 V, 3-Phase

• Frequency: 60 Hz

• Output Power: 5 HP / 2.5 HP

• Speed: 1725 / 850 RPM

• Synchronous Speed: 1800 RPM

• Current: 6.9 A @ 460V

• Mounting: F1, C-Face

• Service Factor: 1.00

• Insulation Class: B

• Duty: Continuous

• Shaft Diameter: 1.375 in

• Shaft Rotation: Reversible

• Number of Poles: 4 / 8

• Starting Method: Direct on Line

• Bearings: Ball (Pulley End)

• Lead Termination: Flying Leads, 6 @ 14 AWG

• Ambient Temp: 40 °C

• Design Code: B

• KVA Code: H

• Certifications: UR, CSA

• RoHS Compliant

• Overall Length: 26.20 in

• Motor Type: 3735M

• Product Family: General Purpose
