35X141K405G1, 1.00 Hp, 1180 RPM, 575 V, 3 Ph, 60 Hz, OPAO, Frame 56Z

This general-purpose three-phase AC motor delivers 1 Hp at 60 Hz with a 575 V input in a compact 56Z frame and open drip‑proof construction.

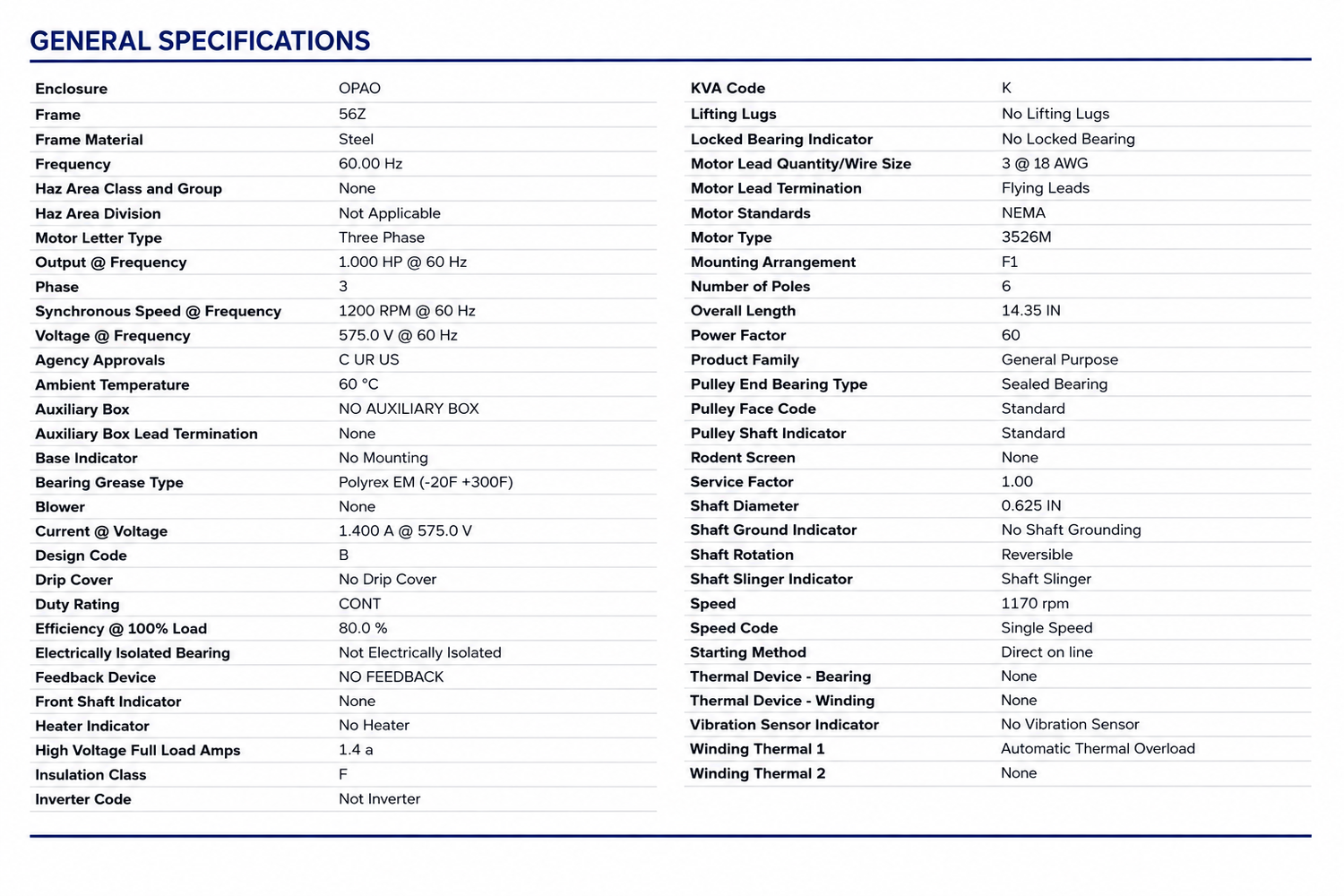

KEY FEATURES

• Model: 35X141K405G1

• Horsepower: 1.00 Hp

• Voltage: 575 V @ 60 Hz – 3 Phase

• Speed: 1180 RPM @ 60 Hz

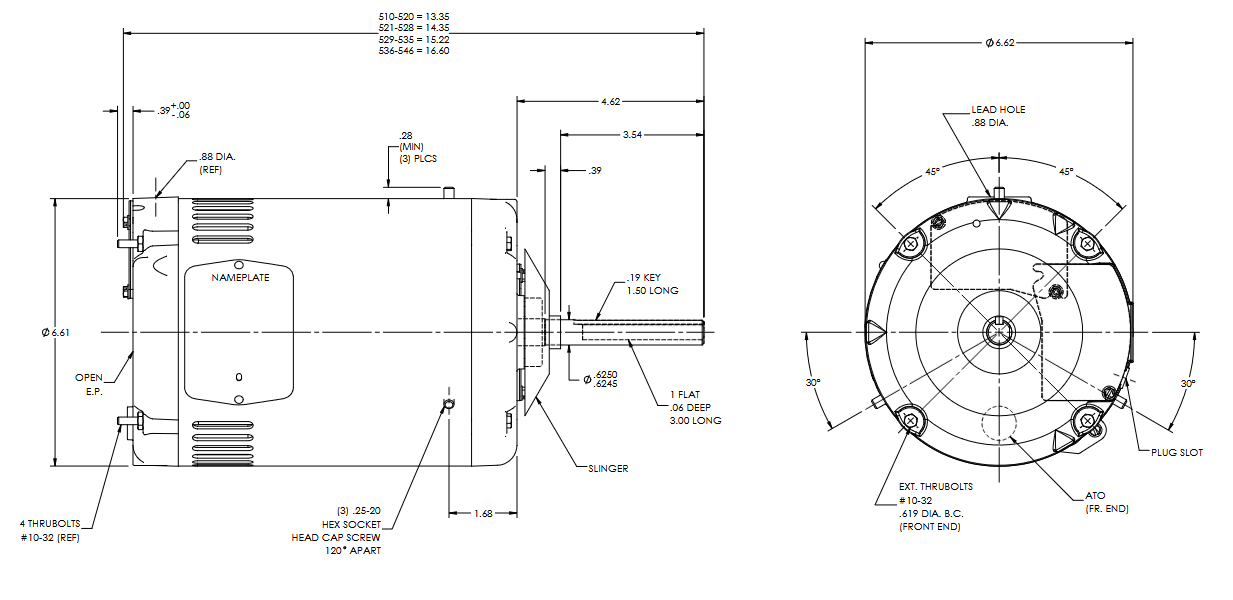

• Frame: 56Z

• Enclosure: Open Drip‑Proof (OPAO)

• Service Factor: 1.00

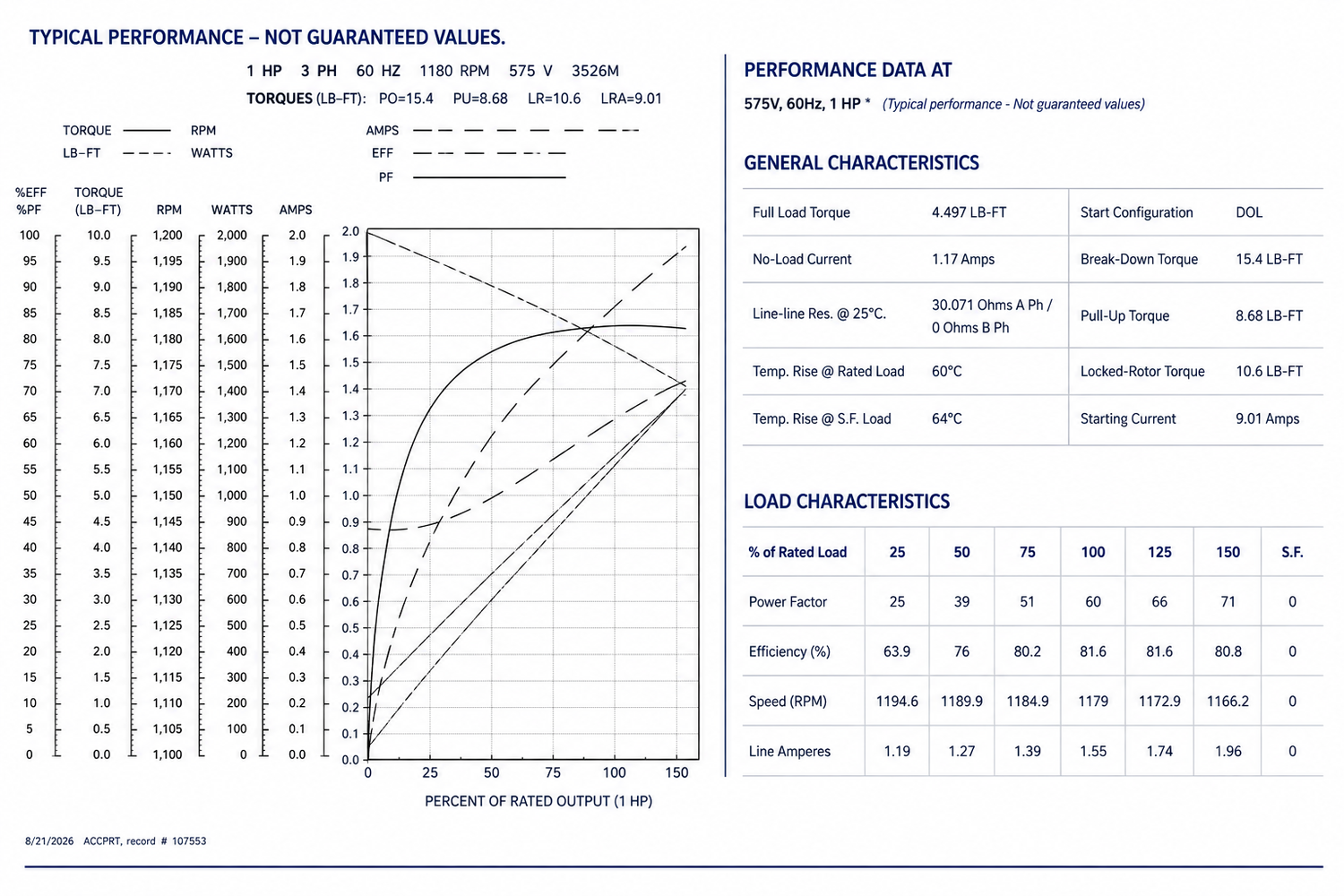

• Efficiency: 81.6 % @ 100 % Load

• Power Factor: 60 %

• Current: 1.4 A @ 575 V

• Duty: Continuous

• Insulation Class: F

• Design Code: B

• Mounting: F1

• Shaft: 0.625 in Diameter

• Bearings: Sealed Ball Bearings (6203 DE & ODE)

• Frame Material: Steel

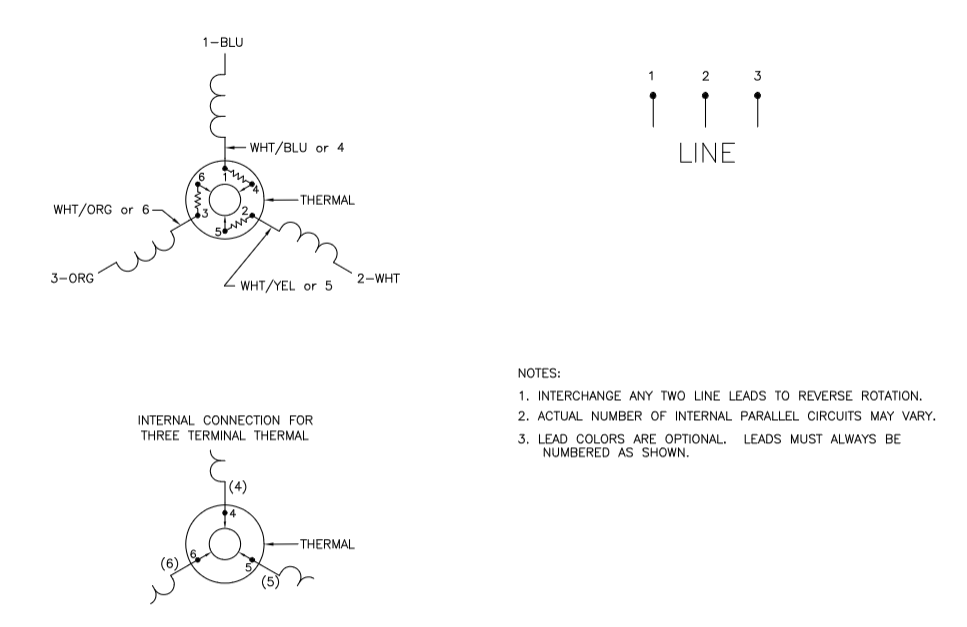

• Rotation: Reversible

• Number of Speeds: 1

• Ambient Rating: 60 °C

• Thermal Protection: Winding Thermal 1 Automatic

• Origin: US

The motor’s compact design, efficient performance, and reversible operation make it well-suited for standard industrial applications requiring reliable continuous-duty operation.

CROSS REFERENCE

• X522
