35E1269P074G1, 0.33Hp, 1160RPM, 230/460V, 3Ph, Frame 56CZ, 3516M, ODP, F1

35E1269P074G1, 0.33Hp, 1160RPM, 230/460V, 3Ph, Frame 56CZ, 3516M, ODP, F1

Build to order 12 to 13 Weeks

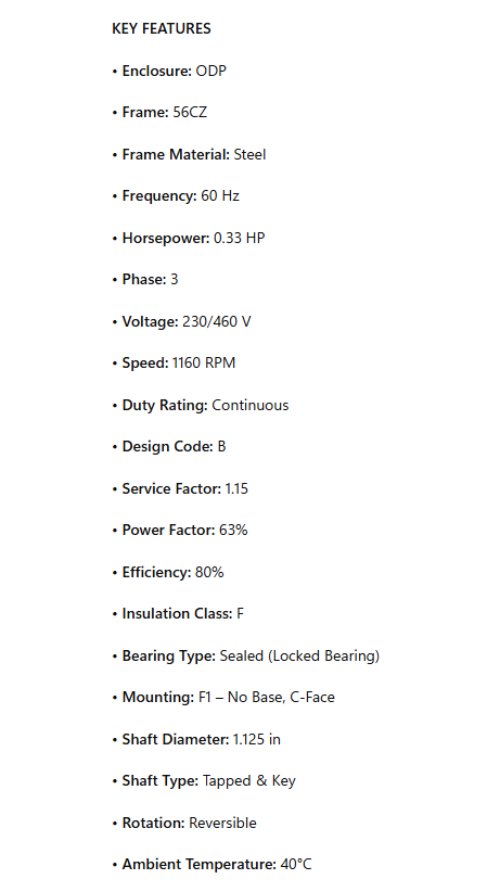

KEY FEATURES

• Enclosure: ODP

• Frame: 56CZ

• Frame Material: Steel

• Frequency: 60 Hz

• Horsepower: 0.33 HP

• Phase: 3

• Voltage: 230/460 V

• Speed: 1160 RPM

• Duty Rating: Continuous

• Design Code: B

• Service Factor: 1.15

• Power Factor: 63%

• Efficiency: 80%

• Insulation Class: F

• Bearing Type: Sealed (Locked Bearing)

• Mounting: F1 – No Base, C-Face

• Shaft Diameter: 1.125 in

• Shaft Type: Tapped & Key

• Rotation: Reversible

• Ambient Temperature: 40°C
