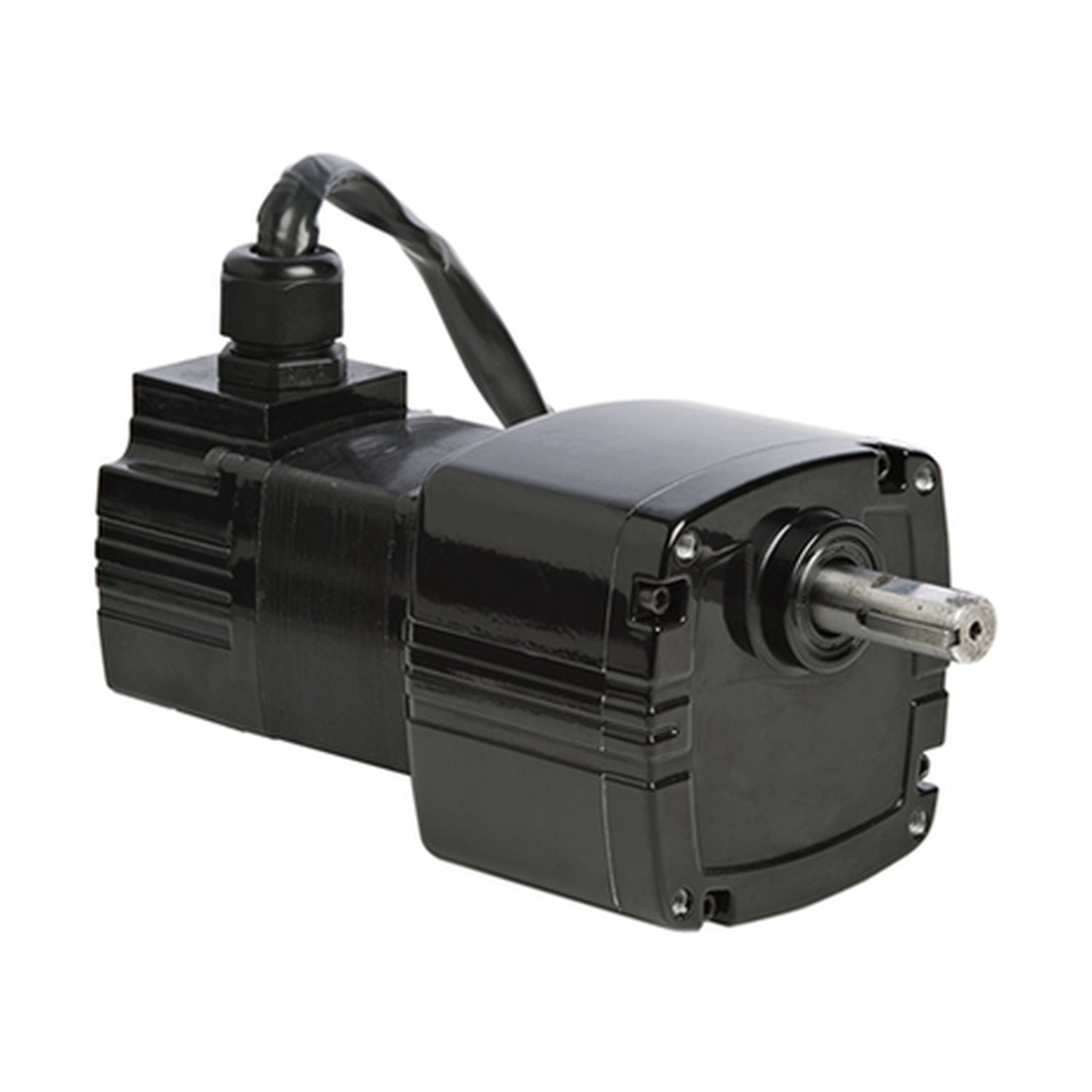

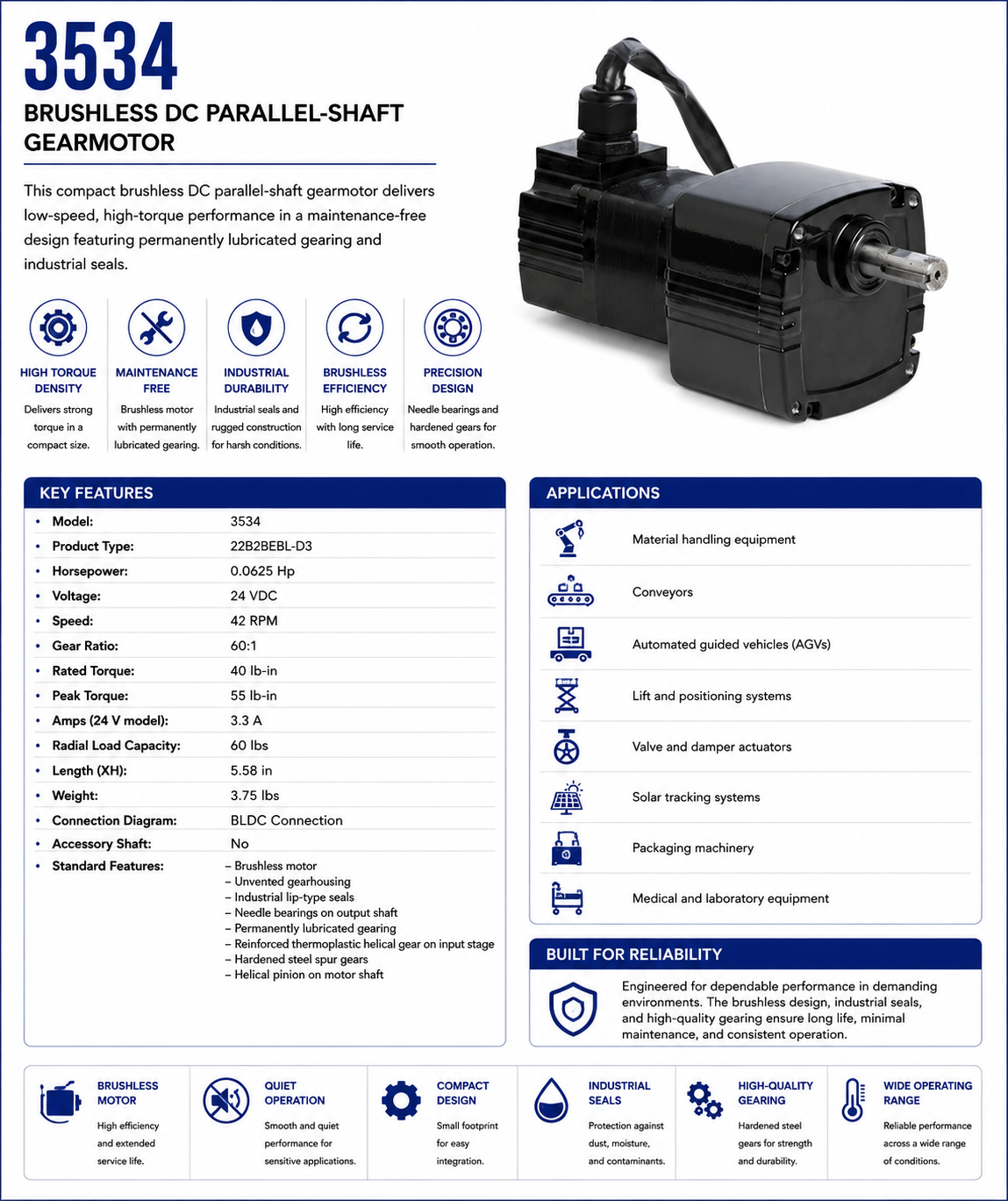

3534, 22B-D Series Parallel Shaft BLDC Gearmotor, 0.0625 Hp, 42 RPM, 24 VDC, 22B2BEBL‑D3

This compact brushless DC parallel‑shaft gearmotor delivers low‑speed, high‑torque performance in a maintenance‑free design featuring permanently lubricated gearing and industrial seals.

KEY FEATURES

• Model: 3534

• Product Type: 22B2BEBL-D3

• Horsepower: 0.0625 Hp

• Voltage: 24 VDC

• Speed: 42 RPM

• Gear Ratio: 60:1

• Rated Torque: 40 lb‑in

• Peak Torque: 55 lb‑in

• Amps (24 V model): 3.3 A

• Radial Load Capacity: 60 lbs

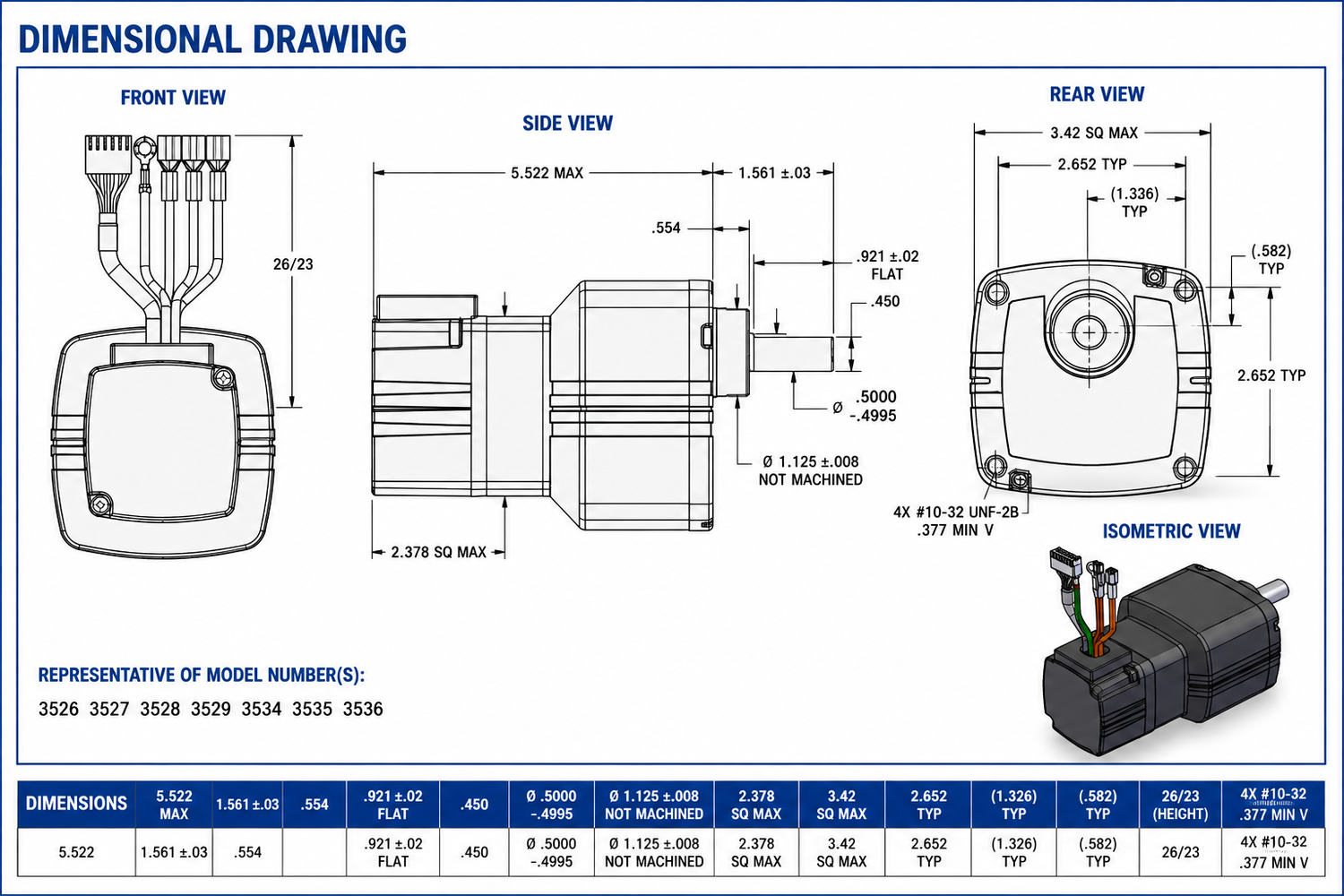

• Length (XH): 5.58 in

• Weight: 3.75 lbs

• Connection Diagram: BLDC Connection

• Accessory Shaft: No

• Standard Features: Brushless motor, unvented gearhousing, industrial lip‑type seals, needle bearings on output shaft, permanently lubricated gearing, reinforced thermoplastic helical gear on input stage, hardened steel spur gears, helical pinion on motor shaft

This gearmotor offers reliable, low‑maintenance operation with high torque density in a compact form factor.
