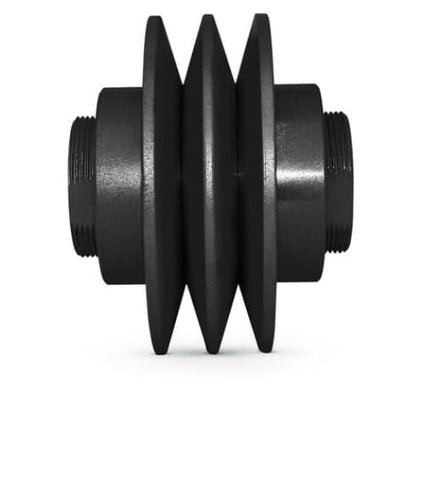

2VP60-1-5/8'',Masterdrive,Dia 6'',Bore 1-5/8'',Variable Pitch Adjustable,2 Grooves,

2VP60-1-5/8'',Masterdrive,Dia 6'',Bore 1-5/8'',Variable Pitch Adjustable,2 Grooves,

E-Motor Nations

  • $105.00


2VP60-1-5/8'',Masterdrive,Dia 6'',Bore1-5/8'',Variable Pitch Adjustable,2 Groove,

Variable Pitch Pulley - 3L, 4L, 5L, A, B Belt Section, 2 Groove, 6.000 in O.D., Finished w/ Keyway & SS,Cast Iron Material,

SPECIFICATIONS

SHEAVE CONSTRUCTION B
A (4L) PITCH DIA. [MIN] 4.20 in
B (5L) PITCH DIA. [MIN] 4.4 in
SET SCREW SIZE 5/16-18
LENGTH THROUGH BORE 3.25 in
OUTSIDE DIA. 6 in
KEYWAY 3/16 x 3/32
SHEAVE TYPE VP
B (5L) PITCH DIA. [MAX] 5.6 in
BORE TYPE Finished
KEYWAY SIZE 3/16 x 3/32 in
A (4L) PITCH DIA. [MAX] 5.20 in
MATERIAL Cast Iron
BELT SIZE A or 4L / B or 5L / 5V
FINISHED BORE 1-5/8 in
HUB O.D. 2 3/4 in
NO. OF GROOVES 2
INCH/METRIC Inch
WEIGHT 11.65 LB

APPLICATIONS

  • Conveyors
  • Pumps
  • Fans
  • Mixers
  • Ventilators

FEATURES

  • Durable cast iron
  • Statically balanced
  • Approximate adjustment range 1.3:1
  • Positive locking of adjustment settings
