MASTERDRIVE  |  SKU: EMN-017482

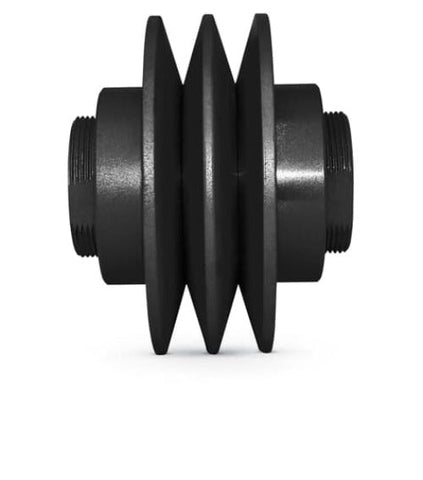

2VP50-1-1/8'',Masterdrive ,Dia 4.75'' ,Bore 1-1/8'' ,Variable Pitch Adjustable ,2 Grooves

$99.54
shipping

Estimate shipping

Description

2VP50-1-1/8'',Masterdrive,Dia 4.75'',Bore 1-1/8'',Variable Pitch Adjustable,2 Groove,

Variable Pitch Pulley - 3L, 4L, 5L, A, B Belt Section, 2 Groove, 4.750 in O.D., Finished w/ Keyway & SS,Cast Iron Material,

SPECIFICATIONS

FINISHED BORE 1 1/8 in
KEYWAY 1/4 x 1/8
BORE TYPE Finished
A (4L) PITCH DIA. [MIN] 3 1/2 in
NO. OF GROOVES 2
INCH/METRIC Inch
SET SCREW SIZE 5/16-18
3L PITCH [MIN] 3.400 in
A (4L) PITCH DIA. [MAX] 4 1/2 in
HUB O.D. 2 3/4 in
OUTSIDE DIA. 4.75 in
MATERIAL Cast Iron
SHEAVE CONSTRUCTION B
KEYWAY SIZE 1/4 x 1/8 in
3L PITCH [MAX] 4.200 in
SHEAVE TYPE VP
B (5L) PITCH DIA. [MAX] 4.6 in
B (5L) PITCH DIA. [MIN] 3.6 in
LENGTH THROUGH BORE 3 in
BELT SIZE 3L / A or 4L / B or 5L
WEIGHT 5.55 LB

PRODUCT DETAILS

  • 2 Grooves
  • 4.75" Outside Diameter
  • 1.1250' Bore
  • 3L, A (4L), B (5L), or 5V Belt Size
  • Two Side Movable

APPLICATIONS

  • Conveyors
  • Pumps
  • Fans
  • Mixers
  • Ventilators

FEATURES

  • Durable cast iron
  • Statically balanced
  • Approximate adjustment range 1.3:1
  • Positive locking of adjustment settings
