E-Motor Nations  |  SKU: EMN-017480

2VP42-1'',Masterdrive,Dia 3.95'',Bore 1'',Variable Pitch Adjustable,2 Grooves,

$87.54
shipping

Estimate shipping

Description

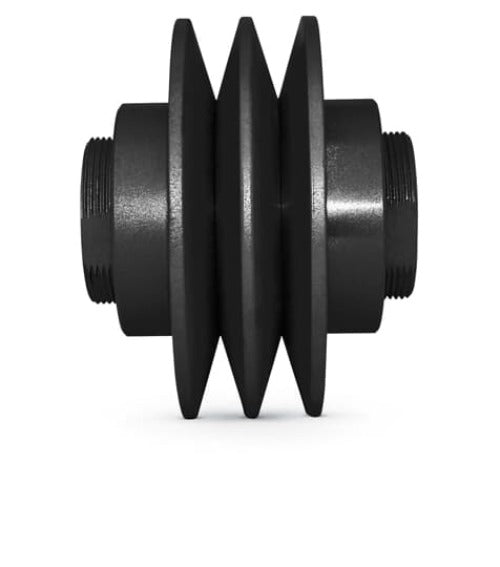

2VP42-1,Masterdrive,Dia 3.95'',Bore 1'',Variable Pitch Adjustable,2 Groove,

Variable Pitch Pulley - 3L, 4L, 5L, A, B Belt Section, 2 Groove, 3.9500 in O.D., Finished w/ Keyway & SS,Cast Iron Material,



SPECIFICATIONS

FINISHED BORE 1.000 in
HUB O.D. 2 3/4 in
NO. OF GROOVES 2
SHEAVE CONSTRUCTION A
3L PITCH [MIN] 2.600 in
3L PITCH [MAX] 3.400 in
A (4L) PITCH DIA. [MAX] 3.70 in
A (4L) PITCH DIA. [MIN] 2.70 in
BELT SIZE 3L / A or 4L / B or 5L
KEYWAY 3/16 x 3/32
B (5L) PITCH DIA. [MAX] 3.8 in
MATERIAL Cast Iron
LENGTH THROUGH BORE 3 in
OUTSIDE DIA. 3.95 in
SET SCREW SIZE 5/16-18
SHEAVE TYPE VP
INCH/METRIC Inch
B (5L) PITCH DIA. [MIN] 2.8 in
KEYWAY SIZE 3/16 x 3/32 in
BORE TYPE Finished
WEIGHT 4.42 LB


PRODUCT DETAILS

  • 2 Grooves
  • 3.95" Outside Diameter
  • 1.000' Bore
  • 3L, A (4L), B (5L), or 5V Belt Size
  • Two Side Movable

APPLICATIONS

  • Conveyors
  • Pumps
  • Fans
  • Mixers
  • Ventilators

FEATURES

  • Durable cast iron
  • Statically balanced
  • Approximate adjustment range 1.3:1
  • Positive locking of adjustment settings
