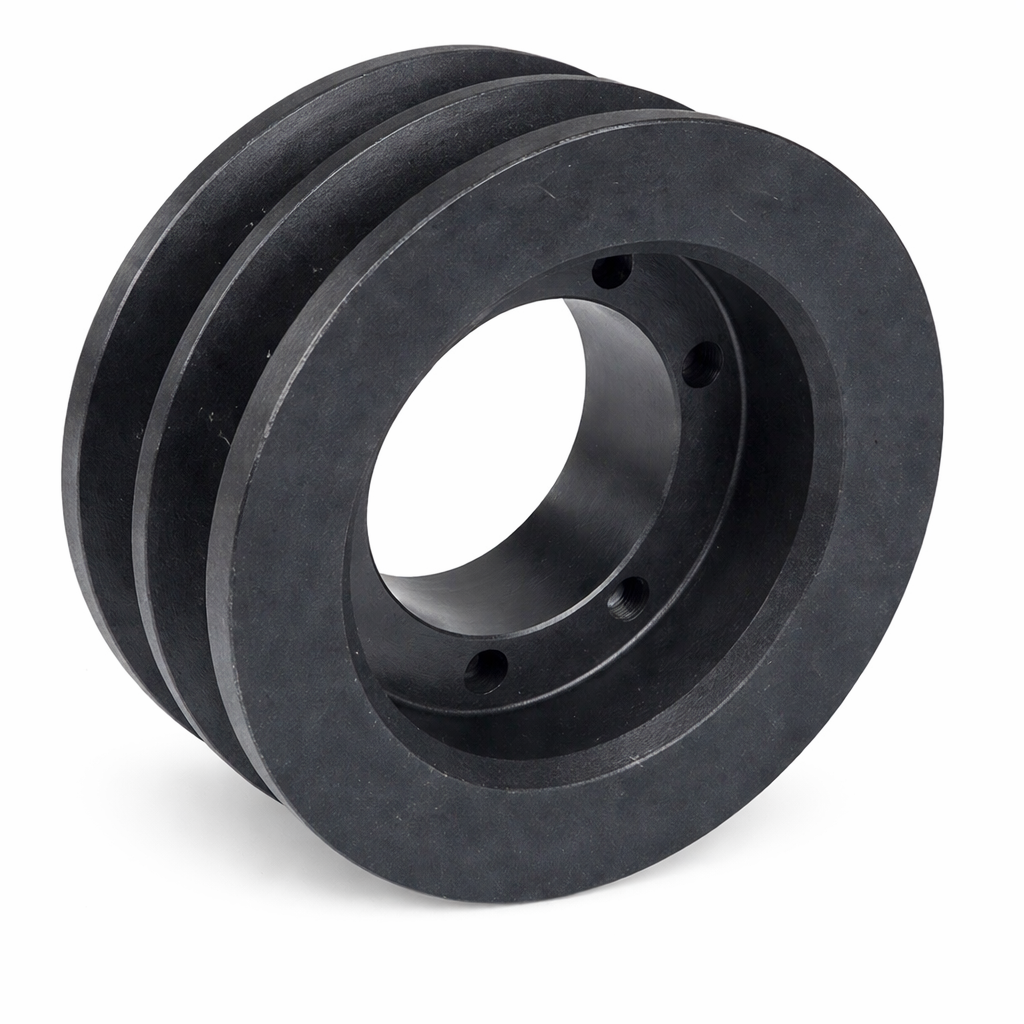

2B74SK, Transmission Pulley; 2 Grooves; 7-3/4" Outside Diameter; Bushed; SK Bushing Series; A | B Belt Series; 7" Pitch Minimum; 7.4" Pitch Maximum; 1/2 To 2-5/8" Bushing Bore Range; Keyway

2B74SK, Transmission Pulley; 2 Grooves; 7-3/4" Outside Diameter; Bushed; SK Bushing Series; A | B Belt Series; 7" Pitch Minimum; 7.4" Pitch Maximum; 1/2 To 2-5/8" Bushing Bore Range; Keyway

• Product Type: Fixed Pitch Transmission Pulley

• Number of Grooves: 2

• Mounting Method: Bushed

• Bushing Series: SK (Bushing Sold Separately)

• Belt Series Compatibility: A | B

• Outside Diameter: 7.75 in (196.85 mm)

• Pitch Diameter (Min): 7 in (177.8 mm)

• Pitch Diameter (Max): 7.4 in (187.96 mm)

• Bushing Bore Range: 1/2 to 2-5/8 in (12.7 to 66.675 mm)

• Keyway: Yes (No keyway for 2-9/16 in and 2-5/8 in bores)

• Construction Style: Web Style

• Duty Type: Heavy Duty

• Bushing Type: QD Bushing

• Design Type: D2

• Weight: 4.631 kg (10.2 lb)
