253G-200C-56H2, 1/8 thru 2.0HP dual voltage chassis control with isolated voltage follower with auto-manual switch (120/240VAC)

253G-200C-56H2, 1/8 thru 2.0HP dual voltage chassis control with isolated voltage follower with auto-manual switch (120/240VAC)

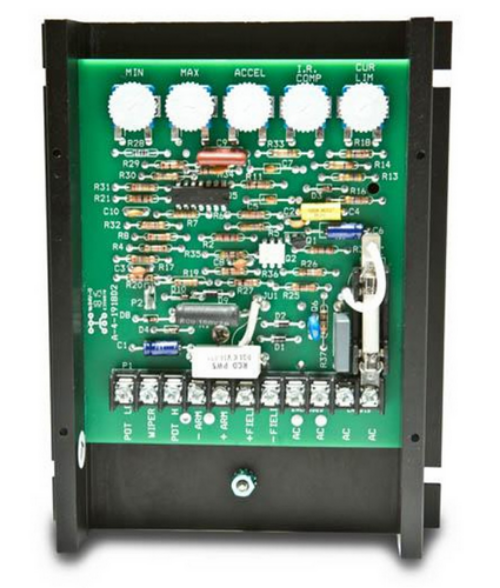

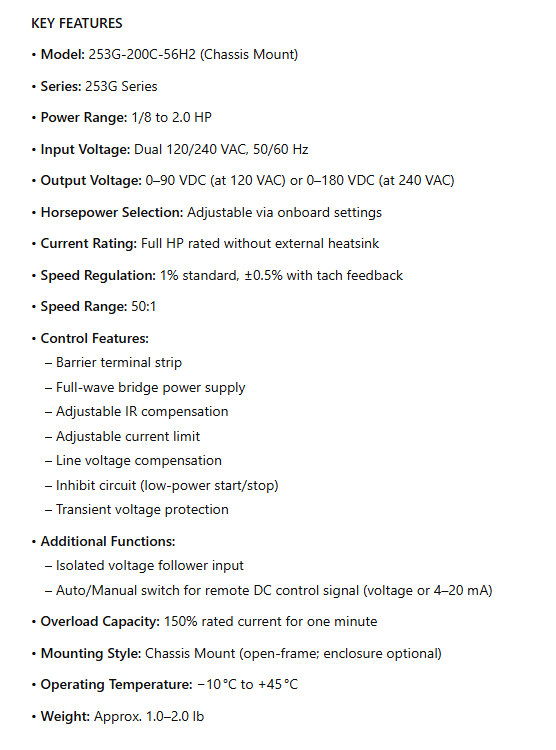

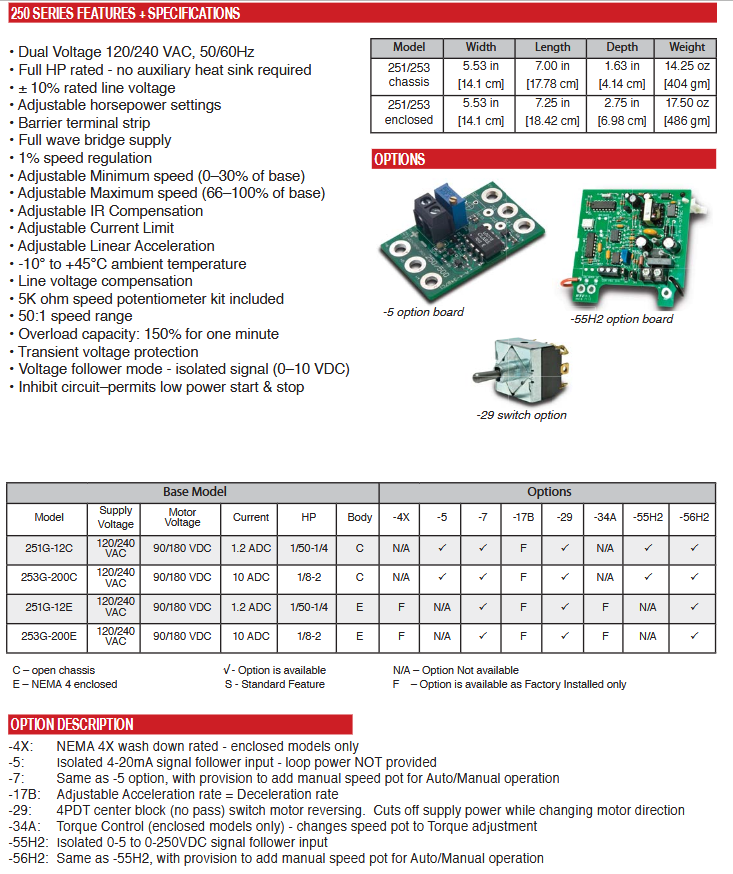

KEY FEATURES

• Model: 253G-200C-56H2 (Chassis Mount)

• Series: 253G Series

• Power Range: 1/8 to 2.0 HP

• Input Voltage: Dual 120/240 VAC, 50/60 Hz

• Output Voltage: 0–90 VDC (at 120 VAC) or 0–180 VDC (at 240 VAC)

• Horsepower Selection: Adjustable via onboard settings

• Current Rating: Full HP rated without external heatsink

• Speed Regulation: 1% standard, ±0.5% with tach feedback

• Speed Range: 50:1

• Control Features:

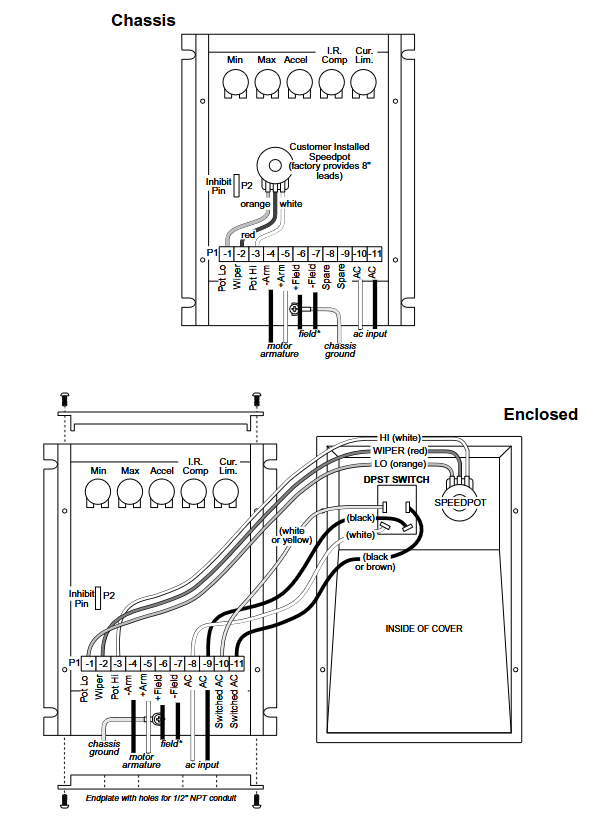

 – Barrier terminal strip
 – Full-wave bridge power supply
 – Adjustable IR compensation
 – Adjustable current limit
 – Line voltage compensation
 – Inhibit circuit (low-power start/stop)
 – Transient voltage protection

• Additional Functions:
 – Isolated voltage follower input
 – Auto/Manual switch for remote DC control signal (voltage or 4–20 mA)

• Overload Capacity: 150% rated current for one minute

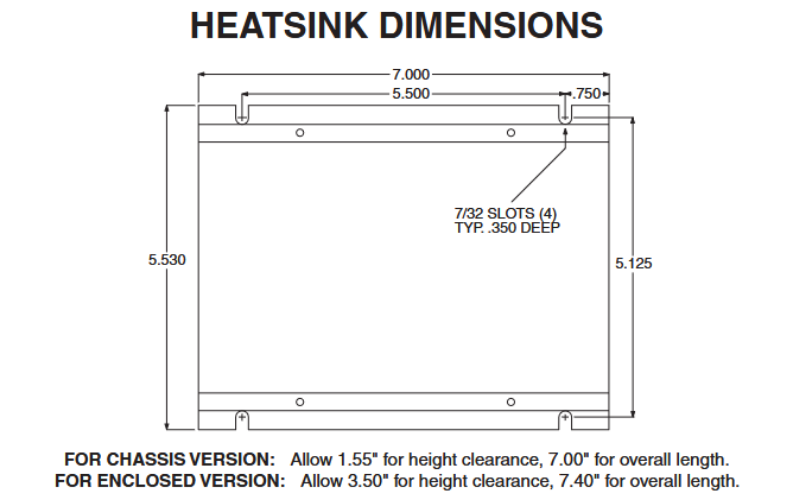

• Mounting Style: Chassis Mount (open-frame; enclosure optional)

• Operating Temperature: −10 °C to +45 °C

• Weight: Approx. 1.0–2.0 lb

The 250 Series offers superb flexibility, reliability, and value. A general purpose, economical drive rated to 2HP, the 250 Series is our top-selling enclosed drive. Where most other drives require options to include soft start adjustment, AC line fuse protection and additional heat sink to handle higher HP motors, these are all included in every 253G model as standard features. Reliability is enhanced from the use of a rugged packaged power bridge. Chassis or NEMA 4/12 enclosure styles are available. Many options further extend the 250’s capabilities.

Typical applications include conveyors and material handling, process pumps and
machine tools.
