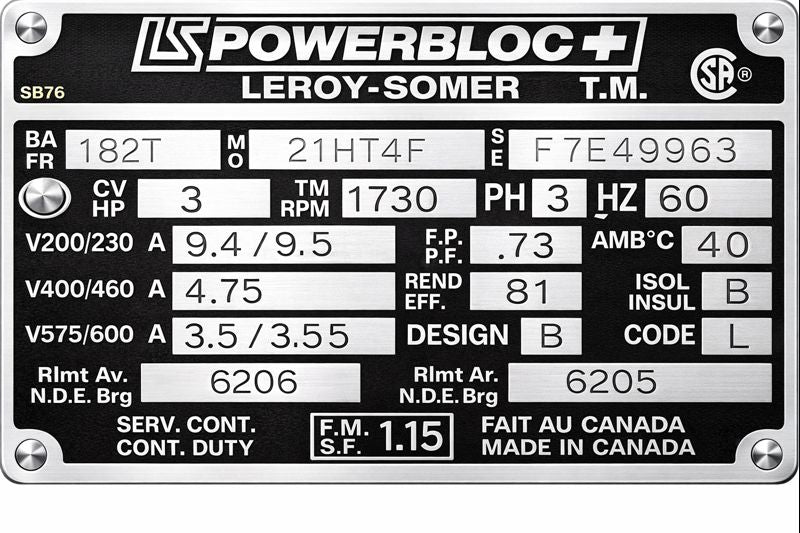

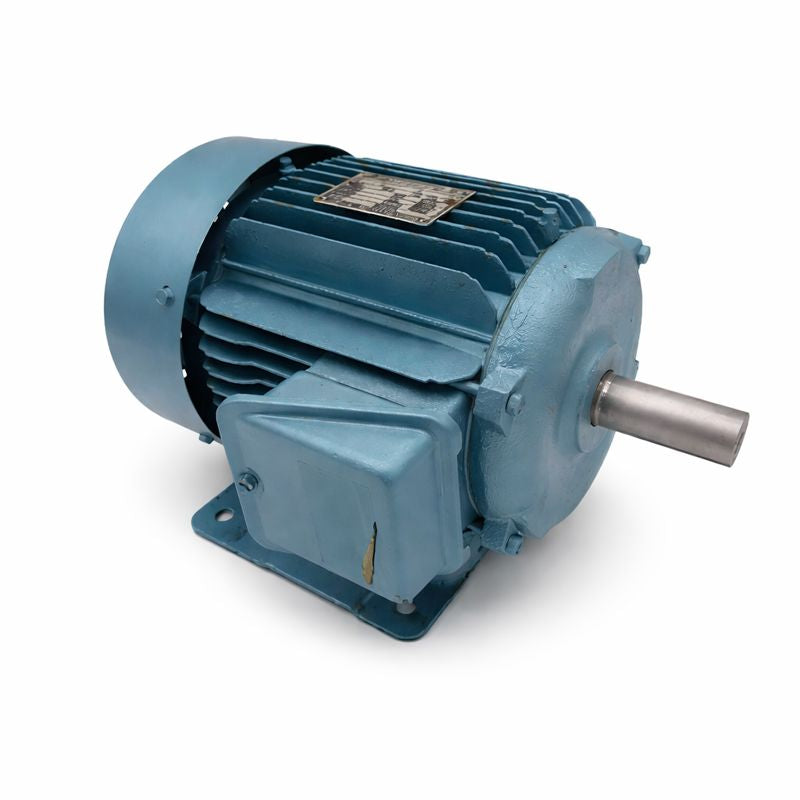

21HT4F, 3Hp, 1730 RPM, 200-230/400-460/575-600V, 3Ph, 60Hz, Frame 182T, TEFC, F1, F7E49963

21HT4F, 3Hp, 1730 RPM, 200-230/400-460/575-600V, 3Ph, 60Hz, Frame 182T, TEFC, F1, F7E49963

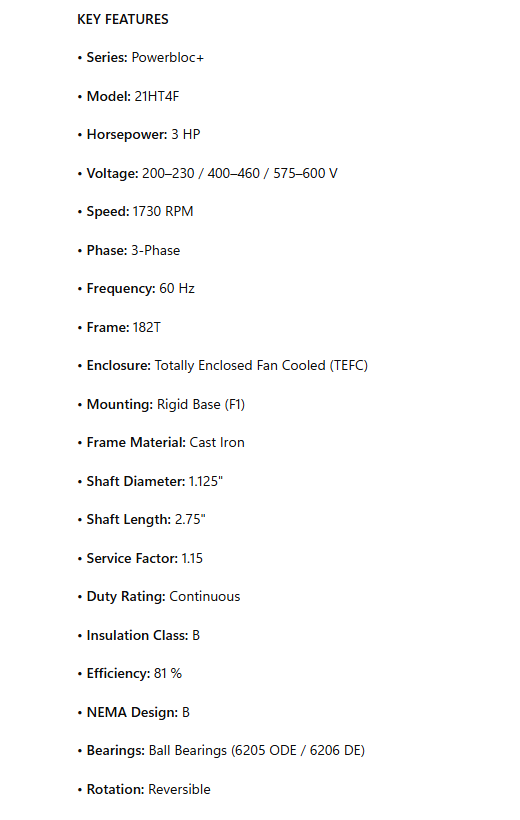

KEY FEATURES

• Series: Powerbloc+

• Model: 21HT4F

• Horsepower: 3 HP

• Voltage: 200–230 / 400–460 / 575–600 V

• Speed: 1730 RPM

• Phase: 3-Phase

• Frequency: 60 Hz

• Frame: 182T

• Enclosure: Totally Enclosed Fan Cooled (TEFC)

• Mounting: Rigid Base (F1)

• Frame Material: Cast Iron

• Shaft Diameter: 1.125"

• Shaft Length: 2.75"

• Service Factor: 1.15

• Duty Rating: Continuous

• Insulation Class: B

• Efficiency: 81 %

• NEMA Design: B

• Bearings: Ball Bearings (6205 ODE / 6206 DE)

• Rotation: Reversible
