20530,  1/4Hp, 920/1050 RPM, 115/230 V, 1 Ph, PSC, CWSE

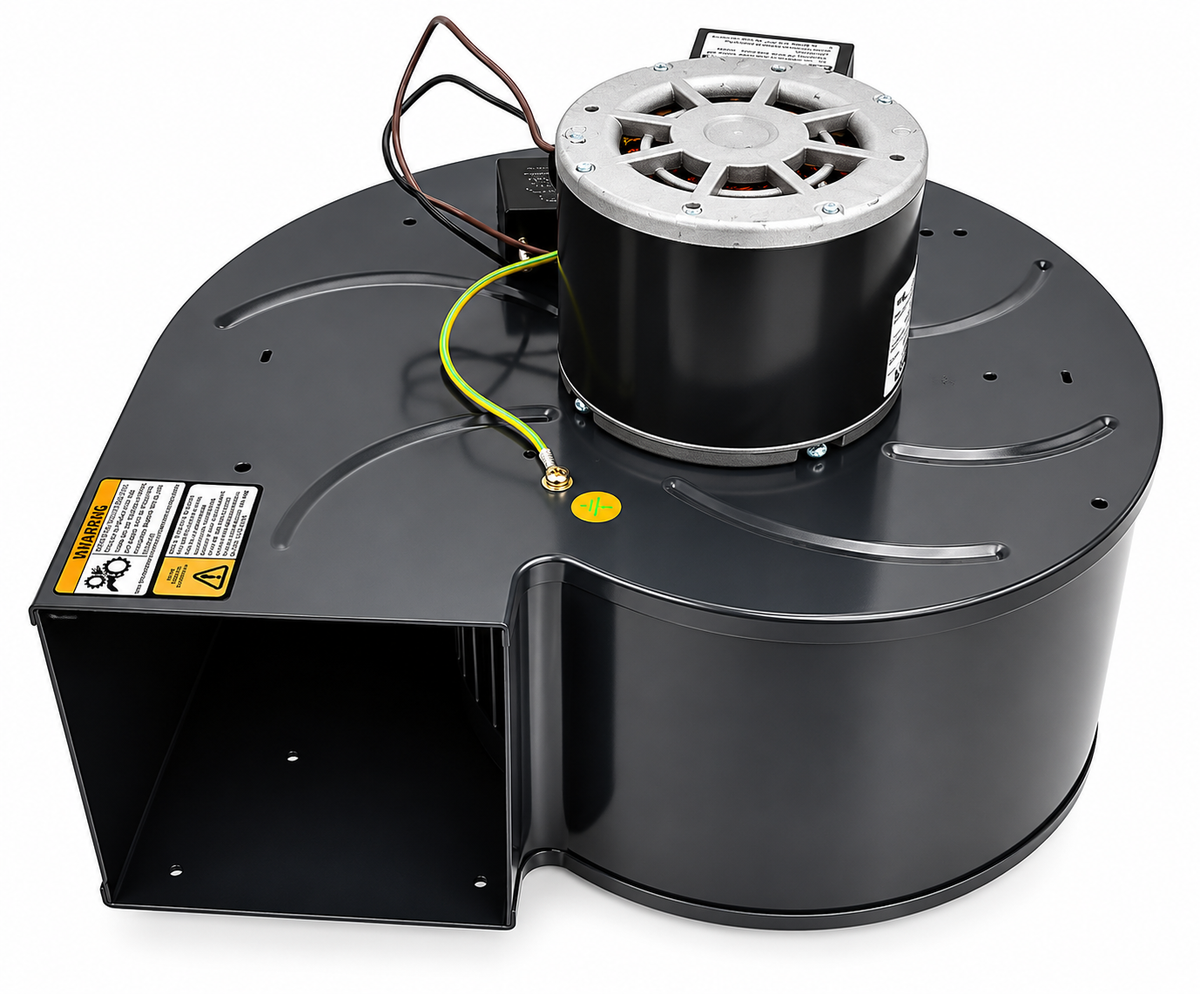

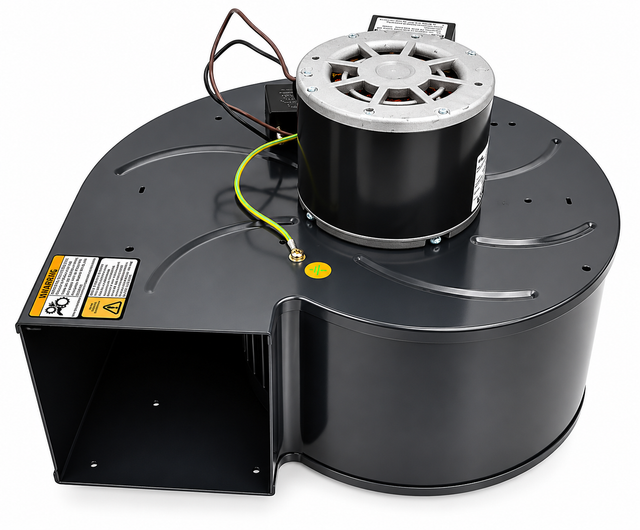

This centrifugal blower motor is a dual‑voltage, single‑phase PSC motor designed for HVAC and draft blower applications, providing approximately 990 CFM airflow and thermal protection in a compact, all‑position configuration.

KEY FEATURES

• Model: 20530

• Product Type: Fan and Blower Motor

• Horsepower: 1/4 Hp

• Voltage: 115/230 V @ 50/60 Hz

• Speed: 920 RPM @ 50 Hz / 1050 RPM @ 60 Hz

• Enclosure: PSC motor (Permanent Split Capacitor)

• Rotation: CWSE (Clockwise, shaft end)

• Bearings: Ball bearings

• Protection: Thermally protected, automatic overload

• Airflow: 990 CFM

• Mounting: All‑position

• Insulation Class: B

This motor’s dual‑voltage PSC design and robust airflow capacity make it well‑suited for HVAC and combustion blower replacements, offering flexible installation and reliable thermal protection.

CROSS REFERENCE

• 1TDU1 / 1TDU1A

• 4C830

• 7086-0201
