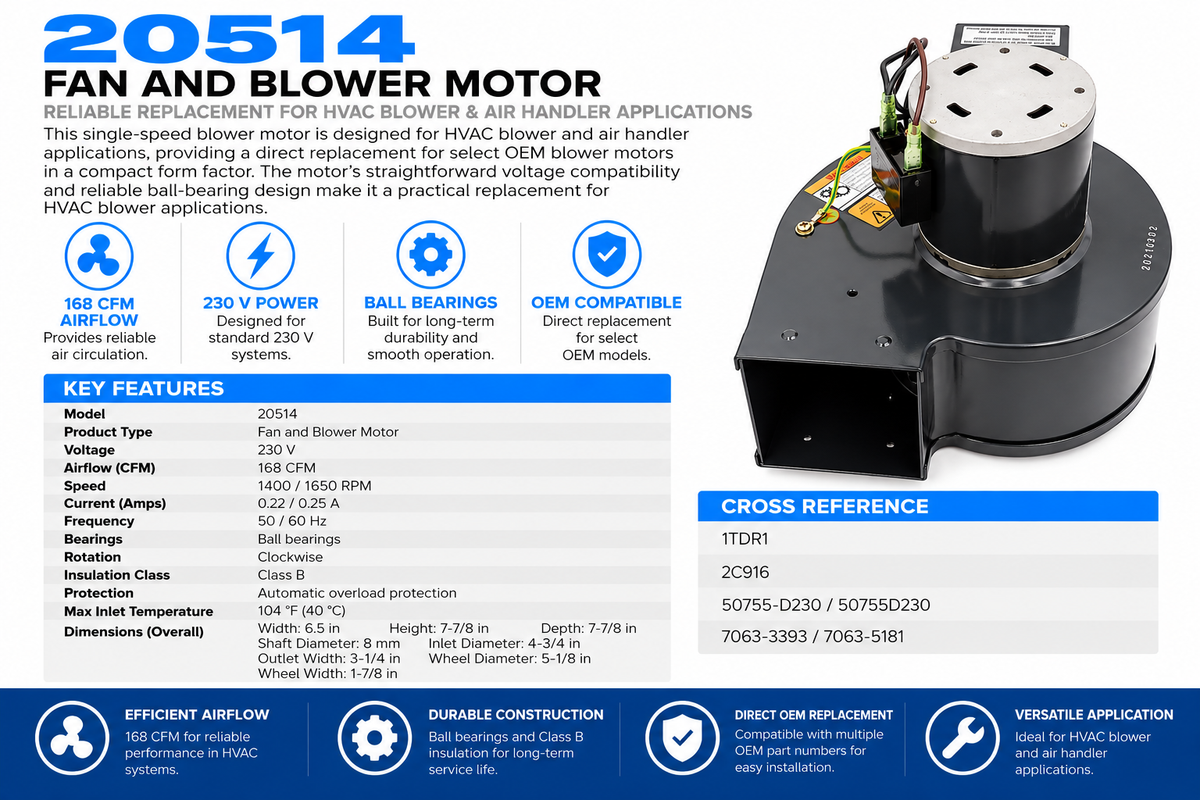

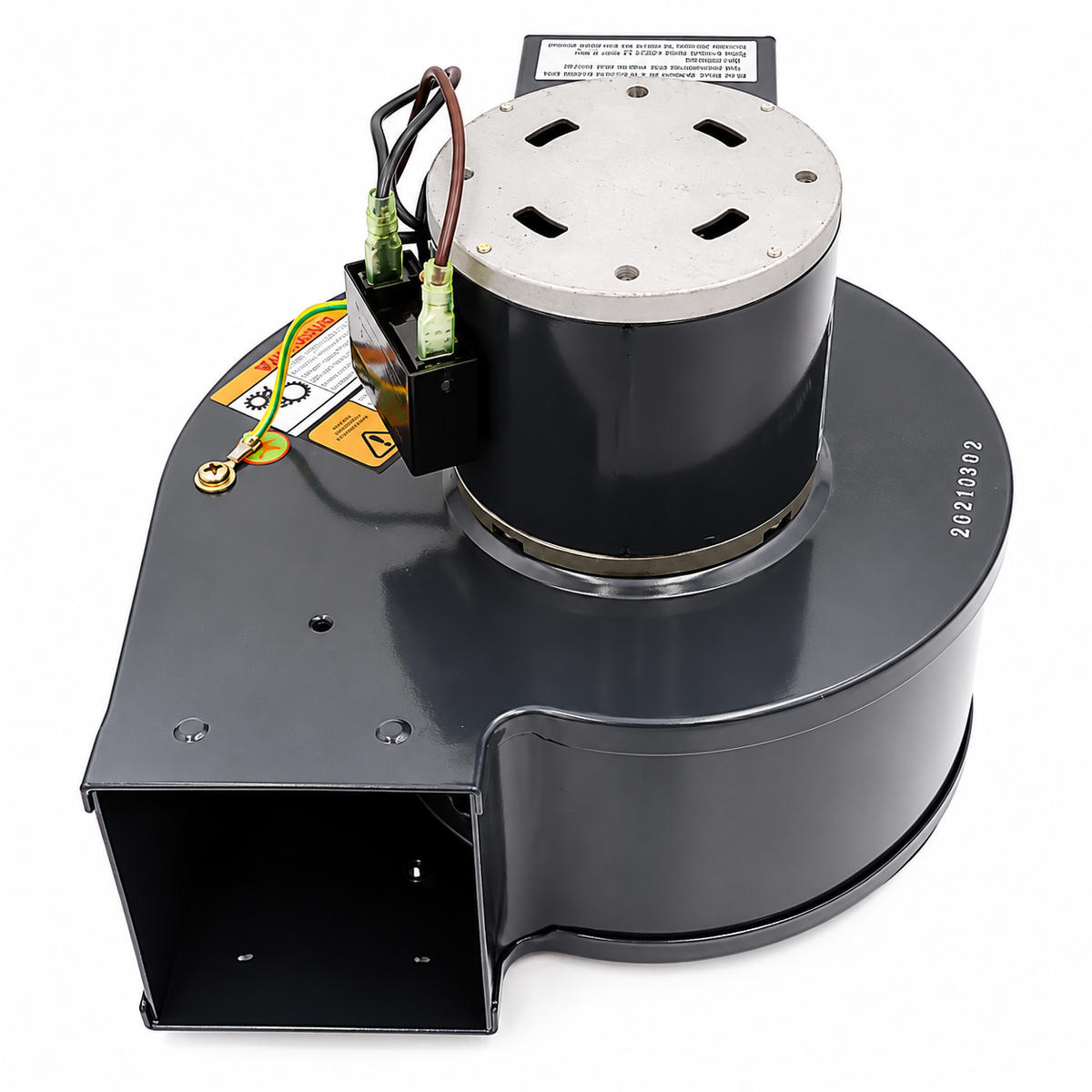

20514, Blower Motor, 1400/1650 RPM, 230 V, 50/60Hz, 0.22/0.25 A

This single‑speed blower motor is designed for HVAC blower and air handler applications, providing a direct replacement for select OEM blower motors in a compact form factor.

KEY FEATURES

• Model: 20514

• Product Type: Fan and Blower Motor

• Voltage: 230 V

• Airflow (CFM): 168 CFM

• Speed: 1400/1650 RPM

• Current (Amps): 0.22/0.25 A

• Frequency: 50/60 Hz

• Bearings: Ball bearings

• Rotation: Clockwise

• Insulation Class: Class B

• Protection: Automatic overload protection

• Dimensions (Overall): Width 6.5 in; Height 7‑7/8 in; Depth 7‑7/8 in; Shaft Diameter 8 mm; Inlet Diameter 4‑3/4 in; Outlet Width 3‑1/4 in; Wheel Diameter 5‑1/8 in; Wheel Width 1‑7/8 in

• Max Inlet Temperature: 104 °F

The motor’s straightforward voltage compatibility and reliable ball‑bearing design make it a practical replacement for HVAC blower applications.

CROSS REFERENCE

• 1TDR1

• 2C916

• 50755-D230 / 50755D230

• 7063-3393 / 7063-5181
