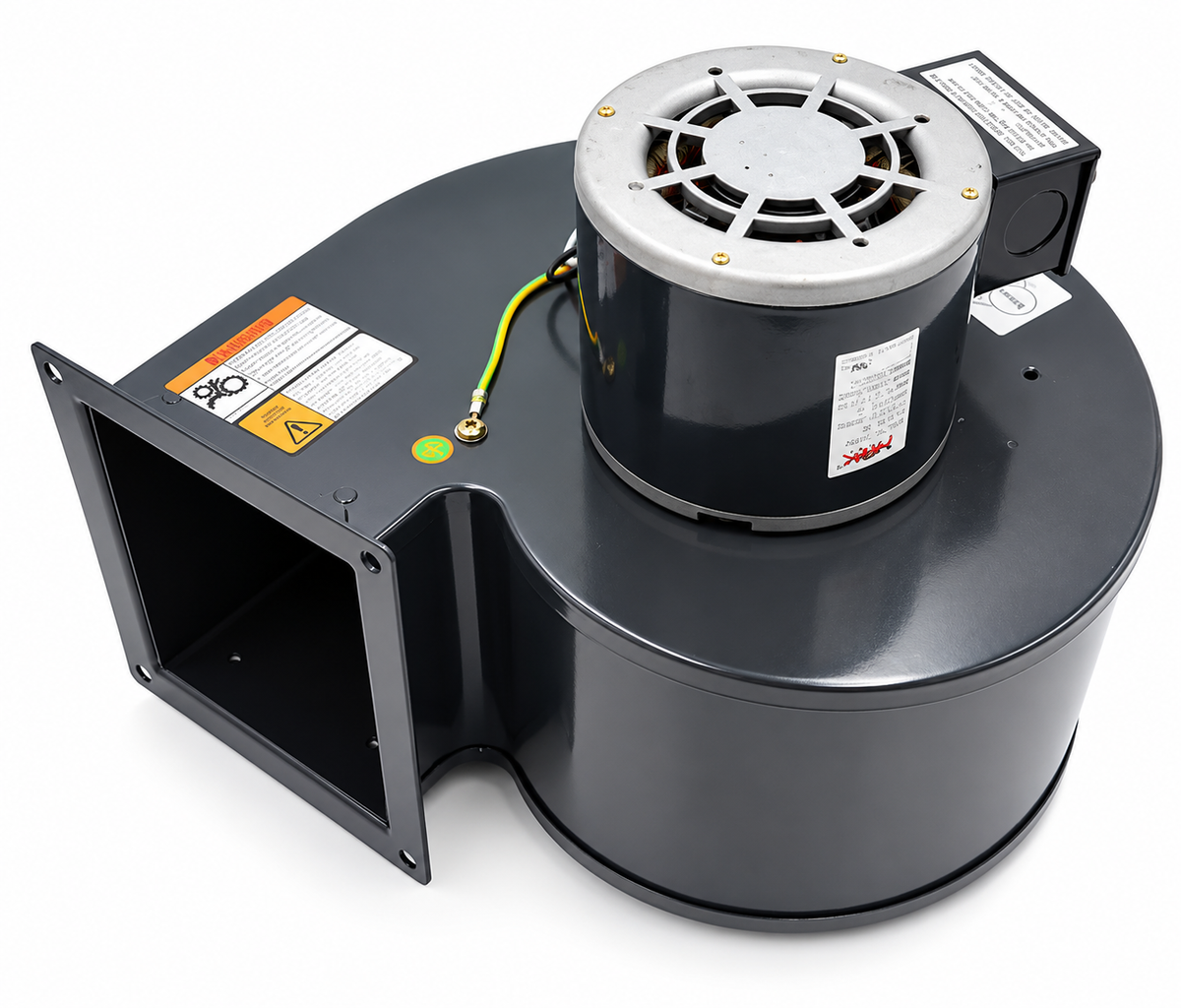

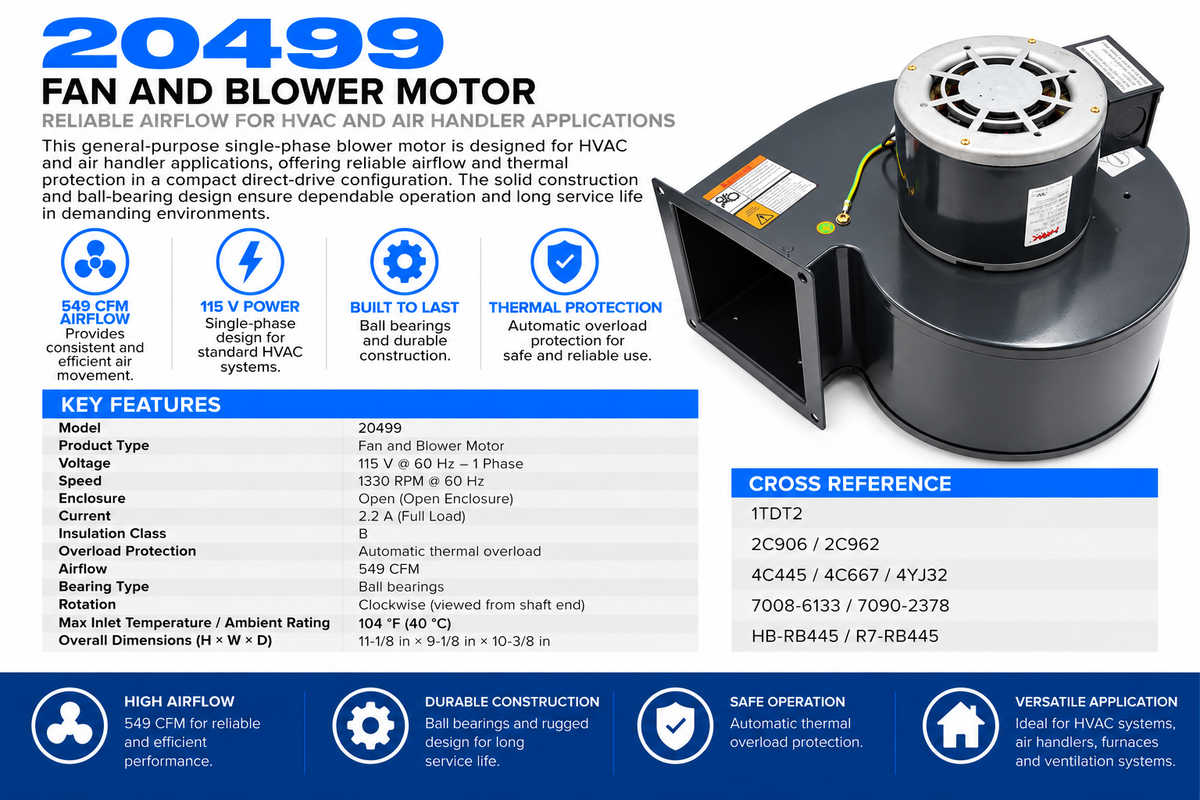

20499, Blower Motor, 1/4 Hp, 1330 RPM, 115 V, 1 Ph, 60 Hz, Open Enclosure, Direct Drive

This general-purpose single‑phase blower motor is designed for HVAC and air handler applications, offering reliable airflow and thermal protection in a compact direct‑drive configuration.

KEY FEATURES

• Model: 20499

• Product Type: Fan and Blower Motor

• Voltage: 115 V @ 60 Hz – 1 Phase

• Speed: 1330 RPM @ 60 Hz

• Enclosure: Open (Open Enclosure)

• Current: 2.2 A (Full Load)

• Insulation Class: B

• Overload Protection: Automatic thermal overload

• Airflow: 549 CFM

• Bearing Type: Ball bearings

• Rotation: Clockwise (viewed from shaft end)

• Max Inlet Temperature / Ambient Rating: 104 °F (40 °C)

• Overall Dimensions (H × W × D): 11‑1/8 in × 9‑1/8 in × 10‑3/8 in

The compact design with ball‑bearing construction and built‑in overload protection ensures dependable operation in HVAC systems, while the direct‑drive setup simplifies installation and maintenance.

CROSS REFERENCE

• 1TDT2

• 2C906 / 2C962

• 4C445 / 4C667 / 4YJ32

• 7008-6133 / 7090-2378

• HB-RB445 / R7-RB445
