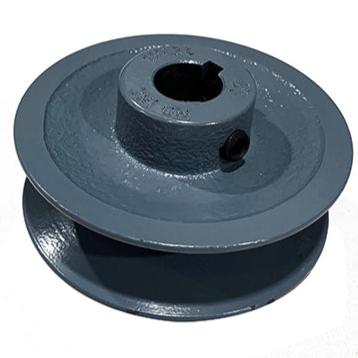

1VP60-7/8,Masterdrive,Dia 6.00'',Bore 7/8'',Variable Pitch Adjustable,

E-Motor Nations

$98.55

1VP60X7/8,Masterdrive, Dia 6.00'', Bore 7/8', Variable Pitch Adjustable,1 Groove,

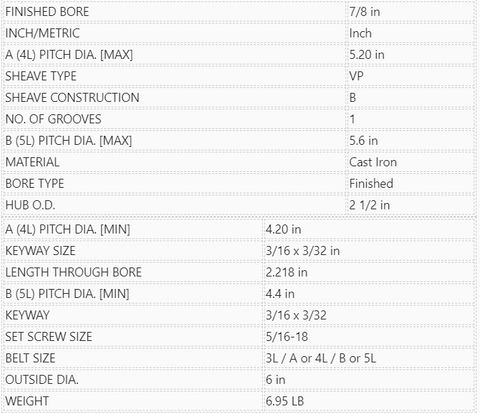

SPECIFICATIONS

FINISHED BORE	7/8 in
INCH/METRIC	Inch
A (4L) PITCH DIA. [MAX]	5.20 in
SHEAVE TYPE	VP
SHEAVE CONSTRUCTION	B
NO. OF GROOVES	1
B (5L) PITCH DIA. [MAX]	5.6 in
MATERIAL	Cast Iron
BORE TYPE	Finished
HUB O.D.	2 1/2 in

A (4L) PITCH DIA. [MIN]	4.20 in
KEYWAY SIZE	3/16 x 3/32 in
LENGTH THROUGH BORE	2.218 in
B (5L) PITCH DIA. [MIN]	4.4 in
KEYWAY	3/16 x 3/32
SET SCREW SIZE	5/16-18
BELT SIZE	3L / A or 4L / B or 5L
OUTSIDE DIA.	6 in
WEIGHT	6.95 LB
